Allen Bradley 1606-XL240EP Power Supply Troubleshooting Guide
Time:2026-07-23 Browse: 0

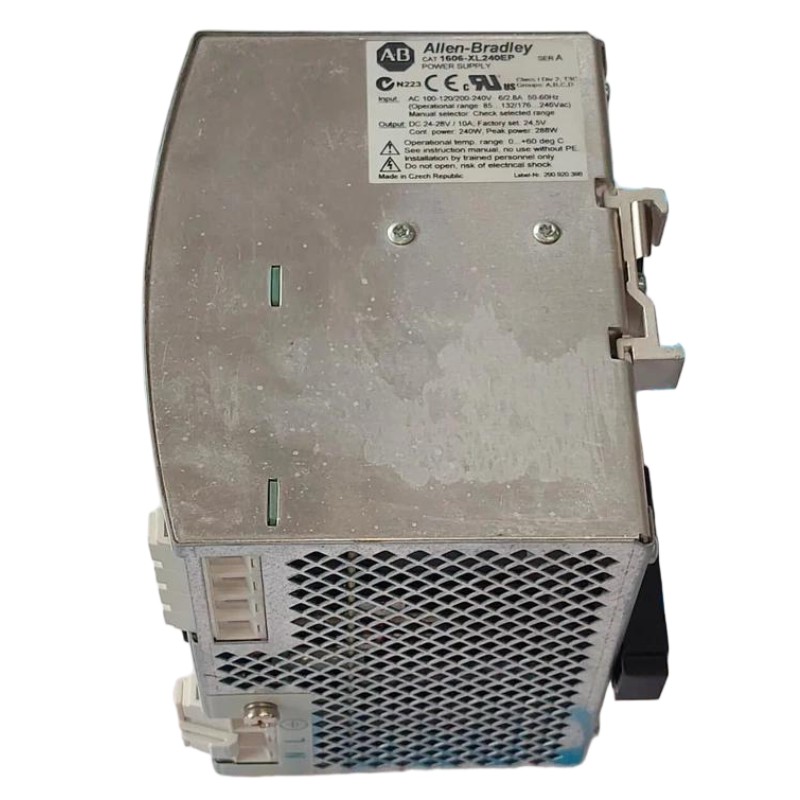

Allen Bradley 1606-XL240EP Power Supply Fault Symptoms
Allen Bradley 1606-XL240EP Power Supply Troubleshooting usually begins when a PLC Controller system shows unexpected shutdowns, communication interruptions, or unstable field device operation.
Typical fault symptoms include:
PLC Controller restarting during machine operation
HMI communication loss
I/O Module offline alarms
Sensors turning off randomly
24V DC voltage fluctuation
When these problems appear, engineers should not immediately replace the Power Supply. Proper Fault Diagnosis requires checking whether the issue comes from the power unit, wiring system, or connected equipment.

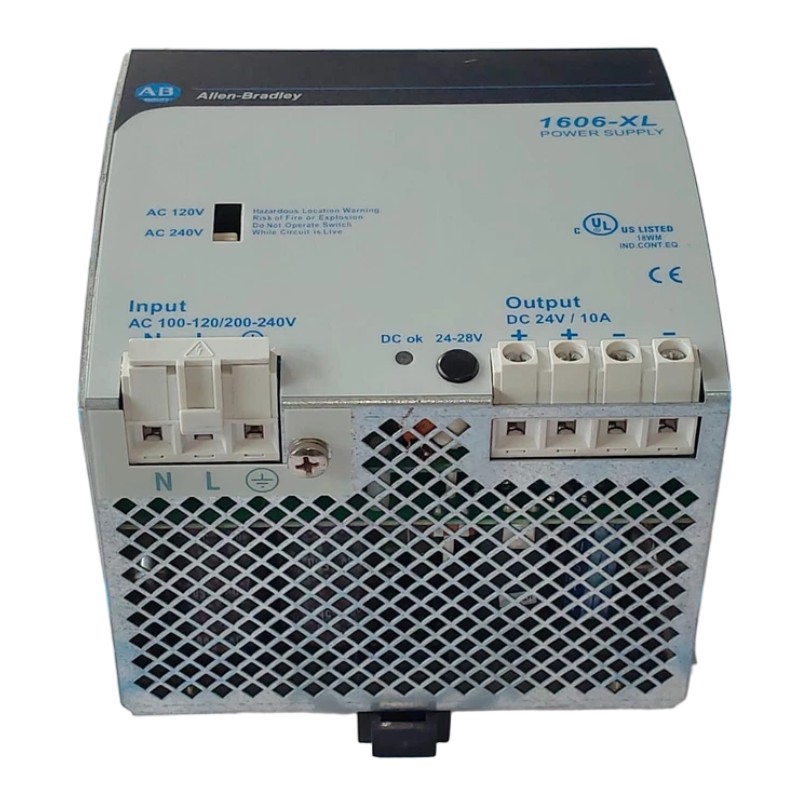

Allen Bradley 1606-XL240EP Troubleshooting Logic for DC Voltage Instability
A structured troubleshooting method helps identify the actual failure source.
The diagnostic process should include:
Input power inspection
Check:
AC input stability
Circuit protection condition
Incoming power quality
Output measurement
Check:
24V DC output voltage
Voltage drop during load changes
Current consumption
Load separation test
Disconnect and test:
PLC Controller
Communication Module
Sensors
Solenoid valves
External devices
This method allows engineers to determine whether the Power Supply is defective or responding correctly to an external overload.
Allen Bradley 1606-XL240EP Real Field Case: Intermittent Controller Restart Problem
During one factory troubleshooting project, an Allen Bradley 1606-XL240EP Power Supply was reported as unreliable because a packaging machine stopped randomly several times per day.
The observation results were:
PLC Controller operated normally during idle mode
Fault occurred when pneumatic valves switched
Communication alarms appeared simultaneously
DC voltage dropped from 24.1 V to 20.8 V
The engineering team performed a current analysis instead of replacing the Power Supply.
The investigation process found:
The Power Supply output was normal under standard load.
The voltage drop appeared only when one actuator was activated.
The affected circuit showed abnormal current increase.
The final root cause was a damaged valve cable creating an intermittent short circuit.
After replacing the cable:
DC voltage remained above 23.9 V
PLC communication stabilized
Machine availability improved
This case demonstrates that Power Supply Fault Diagnosis must consider the complete automation system rather than only the Power Supply itself.
Allen Bradley 1606-XL240EP Power Supply Repair Evaluation and Recovery
For Allen Bradley 1606-XL240EP Repair decisions, engineers should first determine whether the failure is internal or external.
Common inspection items include:
Overheating marks
Loose terminals
Abnormal electrical noise
Input voltage problems
Continuous overload conditions
If internal electronic damage is confirmed, replacing the Power Supply is normally the preferred industrial solution.
However, many field failures are caused by external conditions such as:
Incorrect cable selection
Excessive DC load
Short circuits
Poor grounding
Improper System Configuration
Allen Bradley 1606-XL240EP Fault Diagnosis Methods for Reliable Automation Systems
Effective Allen Bradley 1606-XL240EP Troubleshooting depends on understanding the relationship between the Power Supply and connected automation equipment.
Experienced maintenance engineers usually record:
Voltage measurements before and after faults
Load current changes
Operating temperature
PLC Controller status
Module communication behavior
A practical Fault Diagnosis approach is:
Measure first → isolate the load → analyze the pattern → repair the real cause
The Allen Bradley 1606-XL240EP Power Supply is a critical component in industrial control systems. Correct troubleshooting methods help reduce unnecessary replacement, shorten downtime, and improve overall machine reliability.
