Allen Bradley 1606-XL480E Power Supply Installation Overview
The Allen Bradley 1606-XL480E Power Supply installation process focuses on stable 24 VDC distribution, correct cabinet wiring, and reliable startup performance for industrial automation systems. In PLC Controller applications, most commissioning issues are related to incorrect load calculation, poor grounding, or voltage drop in the DC circuit rather than the power supply unit itself.

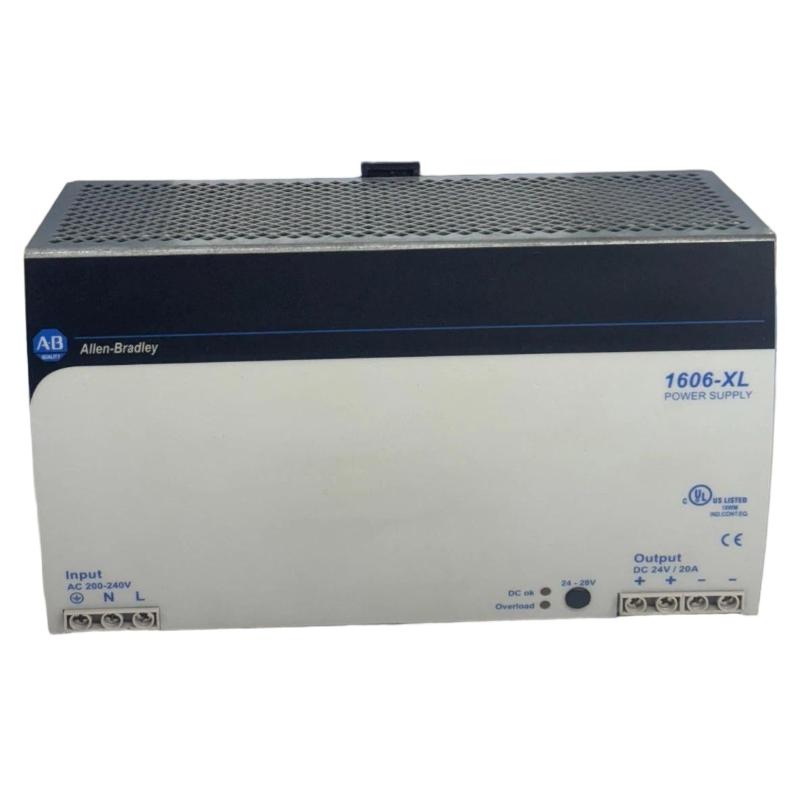

The Allen Bradley 1606-XL480E is a DIN rail mounted industrial Power Supply designed to provide regulated 24 VDC power for PLC Controller systems, I/O modules, sensors, communication equipment, and operator interfaces. With a 480 W output capacity and 20 A rated current, it is commonly used in machine control panels where continuous DC power stability is required.
Brand: Allen Bradley
Country of Origin: Czech Republic
Product Type: Industrial Power Supply
Model: 1606-XL480E
Allen Bradley 1606-XL480E Power Supply System Configuration Planning
Before starting the Allen Bradley 1606-XL480E Installation Guide procedure, engineers should evaluate the complete DC power architecture inside the control cabinet.
A proper System Configuration review should include:
PLC Controller power consumption
Remote I/O module requirements
HMI and communication device loads
Sensor and transmitter current demand
Output device startup current
The 1606-XL480E provides a regulated 24 VDC supply suitable for industrial automation environments. However, selecting the correct power capacity requires considering both continuous load and temporary current peaks.
During one machine upgrade project, the original power design only calculated the PLC Controller and communication modules. After additional sensors and pneumatic valves were installed, the DC load increased by more than 30%. Engineers corrected the design by separating actuator loads from the control power branch, improving system stability during machine cycles.
Allen Bradley 1606-XL480E Wiring and Cabinet Installation Procedure
The physical installation of the Allen Bradley 1606-XL480E should be completed with attention to heat management and electrical safety.
Recommended installation practices include:

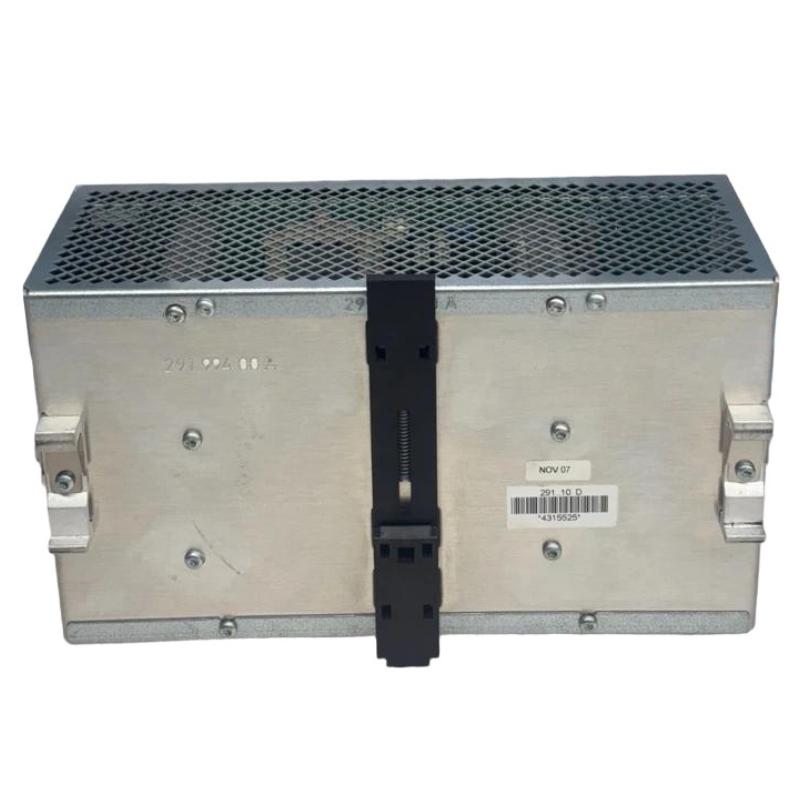

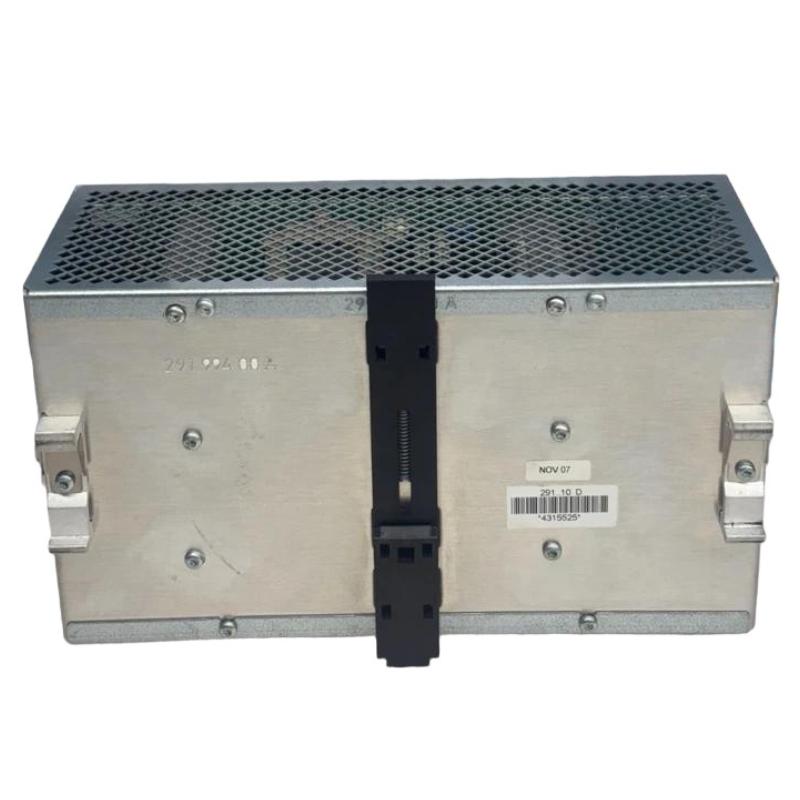

Install the unit vertically on a standard DIN rail
Connect protective earth before applying input power
Use properly sized conductors for AC input and DC output
Keep power wiring separated from signal cables
Tighten terminal connections according to electrical standards
The 1606-XL480E is designed for industrial control cabinets with limited installation space. Proper ventilation around the power supply helps reduce thermal stress and improves long-term reliability.
During field installation, engineers often check terminal resistance after wiring. A loose DC terminal may create intermittent voltage fluctuations that appear as PLC Controller communication faults.
Allen Bradley 1606-XL480E Setup and Commissioning Verification
The Setup and Commissioning phase is critical for confirming that the Allen Bradley 1606-XL480E Power Supply performs correctly under actual operating conditions.
A practical commissioning process includes:
Verify AC input voltage before startup
Measure unloaded DC output voltage
Connect the PLC Controller system
Check voltage stability during machine operation
Confirm DC status monitoring signals
Typical field verification points:
Output voltage: approximately 24 VDC
Rated output current: 20 A
Maximum power capacity: 480 W
Stable operation under continuous load
In one commissioning case, a PLC system repeatedly restarted during motor acceleration. Initial testing showed a normal 24.5 VDC output at idle condition. However, when the machine entered automatic mode, voltage dropped to 21.9 VDC.
Engineers performed signal analysis and measured the DC branch current. The issue was traced to excessive voltage loss caused by long-distance wiring between the cabinet and field devices. After replacing the DC cable with a larger conductor size, the voltage remained stable at 24.2 VDC during operation.
Allen Bradley 1606-XL480E Power Supply Application Experience
The Allen Bradley 1606-XL480E Power Supply is widely applied in automation systems requiring dependable 24 VDC power.
Typical applications include:
Allen Bradley PLC Controller panels
Industrial Ethernet communication systems
Remote I/O stations
Machine safety circuits
Sensor and instrumentation networks
For example, a typical control cabinet load calculation may include:
PLC Controller: 3.5 A
HMI system: 2 A
Communication modules: 1.5 A
Sensors and transmitters: 4 A
Control relays: 5 A
Total operating load: 16 A
With a 20 A rated capacity, the system maintains sufficient operating margin for normal industrial conditions.
