Allen Bradley 1606-XL480E Power Supply Troubleshooting Guide
Time:2026-07-24 Browse: 0

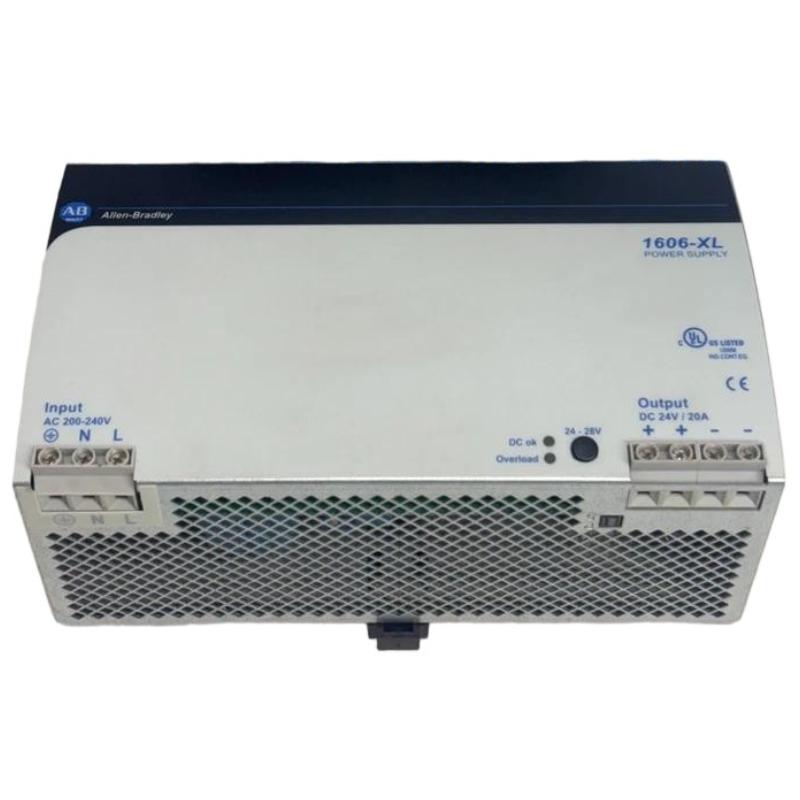

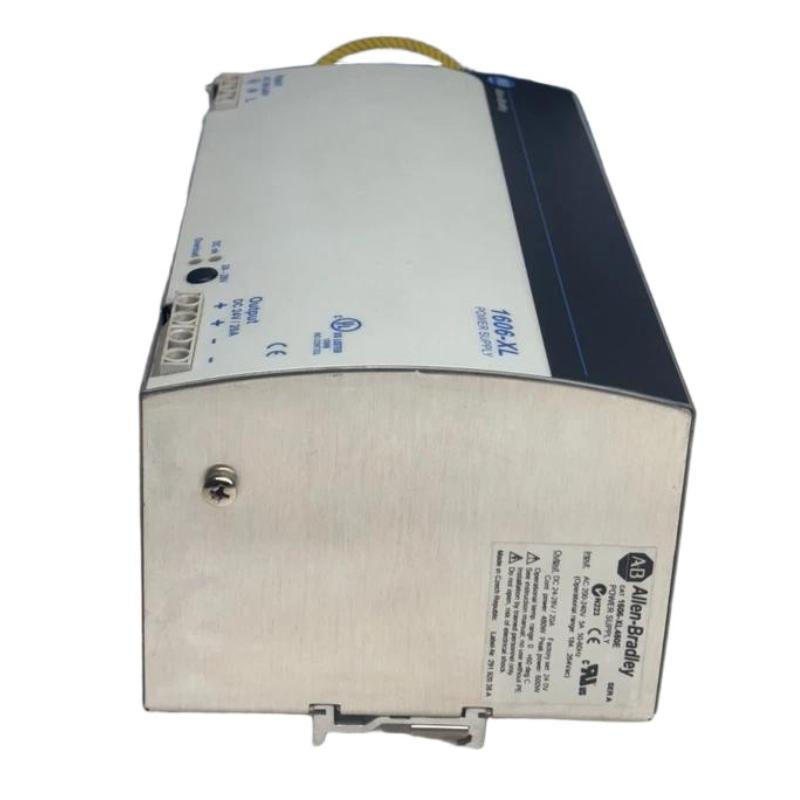

Allen Bradley 1606-XL480E Power Supply Fault Symptoms
The Allen Bradley 1606-XL480E Troubleshooting process should begin by identifying whether the failure comes from input power, overload conditions, wiring problems, or internal component damage.
Common Allen Bradley 1606-XL480E Power Supply fault symptoms include:
PLC Controller unexpected shutdown
HMI screen power loss
Communication module reset
Low 24 VDC output voltage
Intermittent machine توقف during operation
DC status indication failure
In industrial maintenance, a Power Supply replacement should not be the first action. A complete Fault Diagnosis requires checking electrical conditions and operating behavior.
Allen Bradley 1606-XL480E Low Voltage Fault Diagnosis
One common failure pattern of the Allen Bradley 1606-XL480E is unstable DC output caused by excessive load demand.
The diagnostic approach should include:
Input Side Inspection
Check:
AC voltage stability
Circuit breaker condition
Input wiring connection
Output Side Measurement
Check:
DC voltage without load
DC voltage during machine operation
Current consumption
System Analysis
Review:
Added field devices
Short circuits
Incorrect load distribution
A power supply that operates normally without load but drops voltage under operation usually indicates an external load issue rather than immediate internal failure.
Allen Bradley 1606-XL480E Overload Failure Case Study
During a troubleshooting project on an automated assembly machine, operators reported random PLC Controller faults after several hours of operation.
The first observation:
DC voltage at startup: 24.4 VDC
Voltage during production cycle: 20.8 VDC
Measured current consumption: 22.6 A
The initial assumption was that the 1606-XL480E Power Supply had degraded internally.
However, engineers followed the Fault Diagnosis process and disconnected individual loads. They discovered that additional pneumatic solenoid valves had been added to the original 24 VDC circuit without updating the power calculation.
The actual problem was continuous overload operation.
After redistributing the loads:
Current reduced to 15.8 A
DC voltage stabilized at 24.1 VDC
PLC Controller faults disappeared
This case demonstrates why load analysis is essential before replacing industrial power equipment.
Allen Bradley 1606-XL480E Power Supply Internal Fault Investigation
When external causes have been eliminated, engineers can continue with internal Power Supply inspection.
Possible internal failure indicators include:
No output voltage with correct input power
Output voltage cannot be adjusted
Abnormal heating during normal load
Repeated shutdown without overload
Failure after restart attempts
A practical diagnostic method:
Disconnect all external DC loads.
Confirm correct AC input conditions.
Measure unloaded output voltage.
Compare results with normal operation values.
Replace the unit only after confirming internal failure.
This approach prevents unnecessary replacement of healthy equipment.
Allen Bradley 1606-XL480E Repair and System Recovery
After confirming an Allen Bradley 1606-XL480E Power Supply failure, the recovery process should include both replacement and system verification.
Recommended repair actions:
Record original wiring before removal
Confirm polarity before reconnection
Inspect DC distribution terminals
Verify grounding connections
Repeat Setup and Commissioning tests
In one repair case, a replacement power supply failed shortly after installation. Further investigation showed that the cabinet temperature reached an excessive level because ventilation filters were blocked.
After cleaning the cooling path and improving airflow, the new Power Supply operated continuously without further faults.
A reliable Allen Bradley 1606-XL480E Fault Diagnosis process depends on measurement, system understanding, and field observation. Correct troubleshooting identifies the real failure source instead of simply replacing components.
