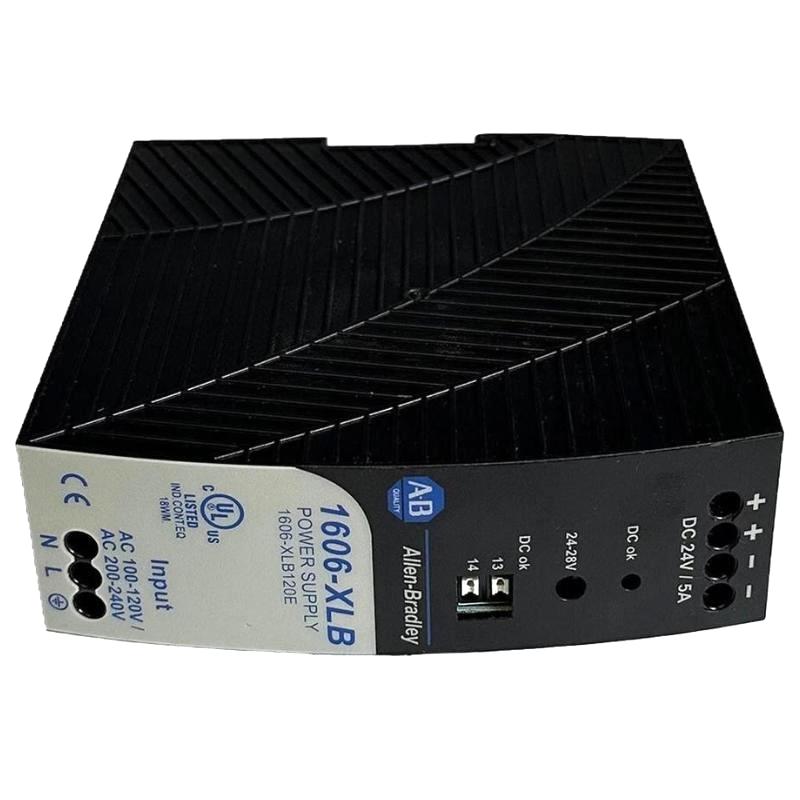

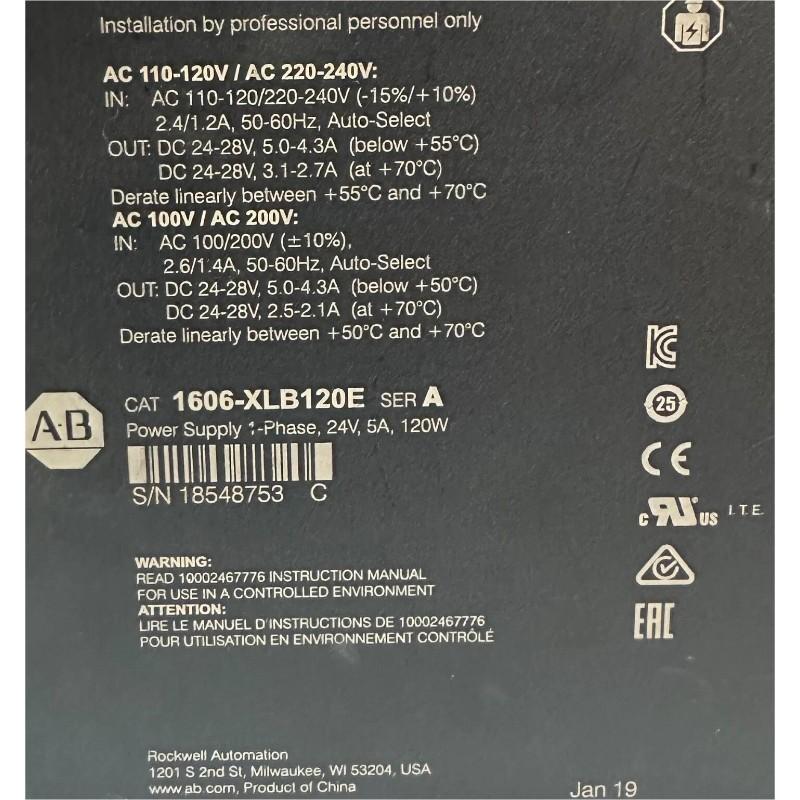

Allen Bradley 1606-XLB120E Power Supply Output Voltage Fault Troubleshooting Guide
Time:2026-08-04 Browse: 0
Allen Bradley 1606-XLB120E Power Supply Fault Symptoms
Allen Bradley 1606-XLB120E output voltage faults usually appear as PLC Controller resets, unstable Module communication, sensor alarms, or unexpected machine shutdowns. Troubleshooting should begin with electrical measurement and system analysis instead of immediately replacing the power supply.
Typical fault symptoms include:
PLC restarting randomly
DC voltage dropping below normal range
Remote I/O communication interruption
Field sensors losing power
Control circuits becoming unstable
The key Fault Diagnosis principle is to separate power supply failure from external load problems.
Allen Bradley 1606-XLB120E Voltage Drop Diagnostic Process
When investigating an Allen Bradley 1606-XLB120E troubleshooting case, engineers normally compare voltage conditions at different points in the circuit.
The diagnostic sequence includes:
Measuring output voltage directly at the power supply terminals
Checking voltage at the PLC input terminals
Comparing voltage difference between locations
Monitoring voltage during machine operation
In one field repair case, the Allen Bradley 1606-XLB120E was suspected after a PLC system restarted several times per shift. Initial measurement showed:
Power supply output: 24.2 VDC
PLC terminal voltage during operation: 21.8 VDC
The power supply was working normally. Further inspection identified excessive resistance in the DC distribution terminal block. After replacing the damaged connection point, PLC operation returned to normal.
Allen Bradley 1606-XLB120E Overload Fault Diagnosis
An overload condition is another common reason for abnormal operation. The power supply may enter protection mode when connected devices demand more current than expected.
Possible causes include:
Additional sensors added without power calculation
Short circuits in field wiring
Damaged I/O modules
Incorrect device connection
A practical troubleshooting method is load isolation:
Disconnect non-critical devices
Observe whether output voltage recovers
Reconnect loads individually
Identify the abnormal branch
This approach helps engineers locate the actual fault without unnecessary replacement of the Allen Bradley 1606-XLB120E Module power source.
Allen Bradley 1606-XLB120E Field Repair Case Analysis
During one repair project, an automation panel experienced random shutdowns after several hours of operation.
Initial observations:
PLC Controller rebooted every 3 to 5 hours
DC voltage occasionally dropped to 19.6 VDC
No permanent alarm appeared on the power supply
The engineering team performed signal analysis and disconnected field devices one by one. The root cause was traced to a damaged proximity Sensor cable creating an intermittent short circuit.
After replacing the damaged sensor cable:
DC voltage remained at 24.1 VDC
PLC communication stabilized
Machine uptime returned to normal operation
The case showed that Allen Bradley 1606-XLB120E Troubleshooting requires checking the entire power distribution system, not only the power supply itself.
Allen Bradley 1606-XLB120E Repair and Recovery Recommendations
After completing Fault Diagnosis, engineers should verify the recovery condition through operational testing.
Recommended validation steps:
Confirm stable DC output voltage
Check PLC Controller startup behavior
Monitor Module communication status
Test machine operation under full load
Record final electrical measurements
The Allen Bradley 1606-XLB120E power supply is usually reliable when correctly applied. Most field failures are related to wiring quality, overload conditions, or external equipment faults. A structured troubleshooting method provides faster repair results and reduces unnecessary component replacement.
