Allen Bradley 1606-XLB240E Power Supply Installation Overview

The Allen Bradley 1606-XLB240E power supply installation process requires correct input wiring, load evaluation, and commissioning checks to ensure stable DC power delivery in industrial control systems. This DIN rail power supply is commonly integrated into PLC Controller panels, remote I/O cabinets, and automation equipment where reliable 24 VDC power is essential.

During field installation, engineers normally focus on three points: AC input stability, DC output quality, and system configuration compatibility. A properly installed 1606-XLB240E Power Supply reduces PLC reset events, communication interruptions, and unexpected shutdowns caused by unstable control voltage.

Allen Bradley 1606-XLB240E Power Supply System Preparation Before Setup

Before mounting the Allen Bradley 1606-XLB240E power supply, the control cabinet environment should be inspected carefully.

Typical preparation checks include:

Confirming the available AC supply voltage matches the power supply rating
Checking the total DC load requirement of PLC modules, sensors, communication devices, and field instruments
Verifying that the cabinet ventilation is sufficient
Inspecting grounding conditions and protective devices

In one commissioning project involving a PLC Controller cabinet, the original power supply was replaced with a 1606-XLB240E unit. Before energizing, the engineering team measured the expected load current at approximately 6.8 A. The calculation showed sufficient power margin for future module expansion, avoiding overload operation.

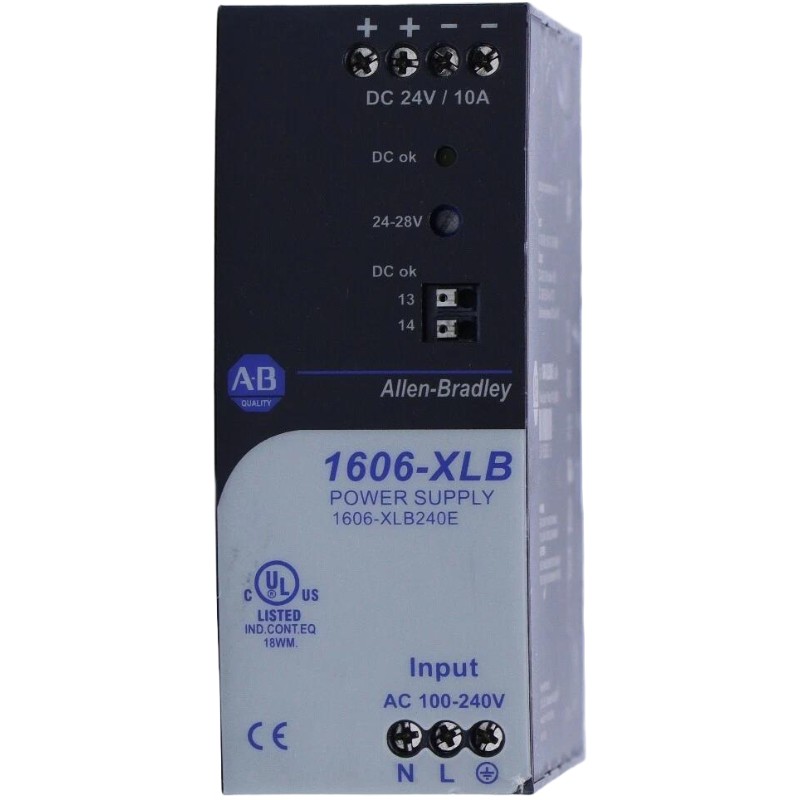

1606-XLB240E 1.jpg

Allen Bradley 1606-XLB240E Power Supply Wiring and Connection Method

Correct wiring is the foundation of a reliable Installation Guide procedure.

The typical wiring inspection includes:

AC Input Side

Verify phase and neutral connections
Tighten terminal screws according to panel requirements
Check protective earth connection

DC Output Side

Connect positive and negative terminals correctly
Separate power wiring from sensitive signal cables
Confirm polarity before connecting PLC equipment

For PLC systems, the 24 VDC output commonly supplies:

PLC Controller CPU modules
Digital input and output modules
Industrial communication interfaces
Sensors and transmitters

Incorrect polarity or loose terminals are common installation mistakes that can damage connected Module devices or create unstable operation.

Allen Bradley 1606-XLB240E Setup and Commissioning Validation

After wiring completion, commissioning should be performed using measurement-based verification rather than only checking whether the equipment powers on.

Recommended commissioning checks:

Measure DC output voltage at no load
Measure voltage during normal operation
Monitor voltage drop during peak load conditions
Confirm PLC communication remains stable

A typical field validation sequence:

Energize the AC input supply
Verify the DC output voltage value
Connect the PLC Controller system
Observe startup behavior
Check alarms and diagnostic messages

During one startup test, engineers recorded a 24 VDC output fluctuation from 23.1 VDC to 24.2 VDC during PLC initialization. After correcting an overloaded branch circuit, the output stabilized around 24.0 VDC and communication faults disappeared.

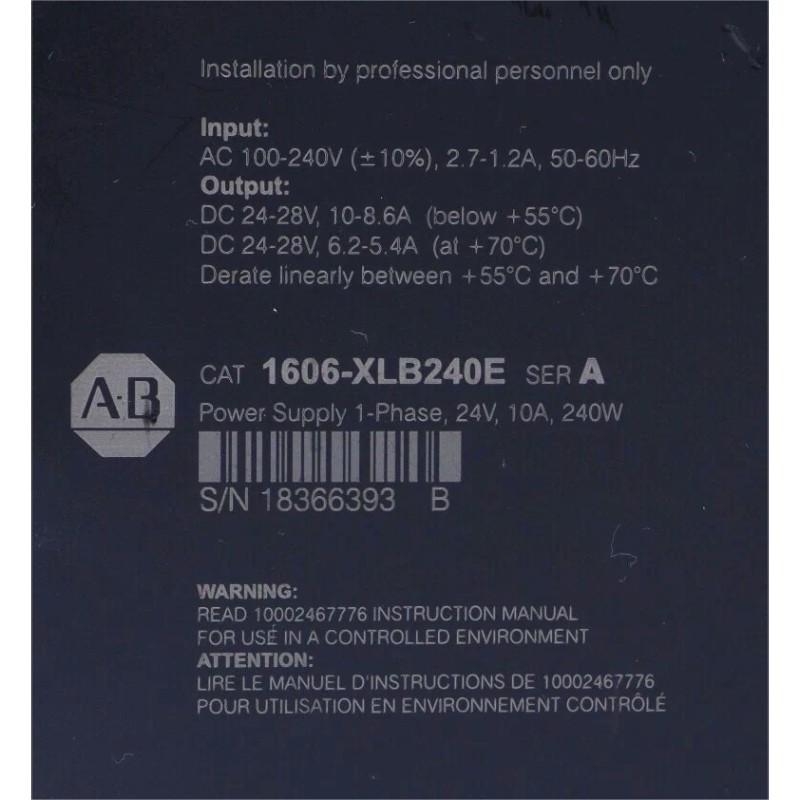

1606-XLB240E 4.jpg

Allen Bradley 1606-XLB240E Power Supply Long-Term Operation Considerations

A successful commissioning process is not only about initial startup but also long-term reliability.

Field experience shows that many power supply failures are related to:

Excessive cabinet temperature
Continuous operation near maximum load
Poor ventilation
Aging terminal connections

For industrial applications, periodic inspection of output voltage, connection points, and thermal conditions helps maintain stable System Configuration performance.
