Schneider TM5NEIP1K EtherNet/IP Fieldbus Interface Module Communication Fault Troubleshooting Guide
Time:2026-08-06 Browse: 0

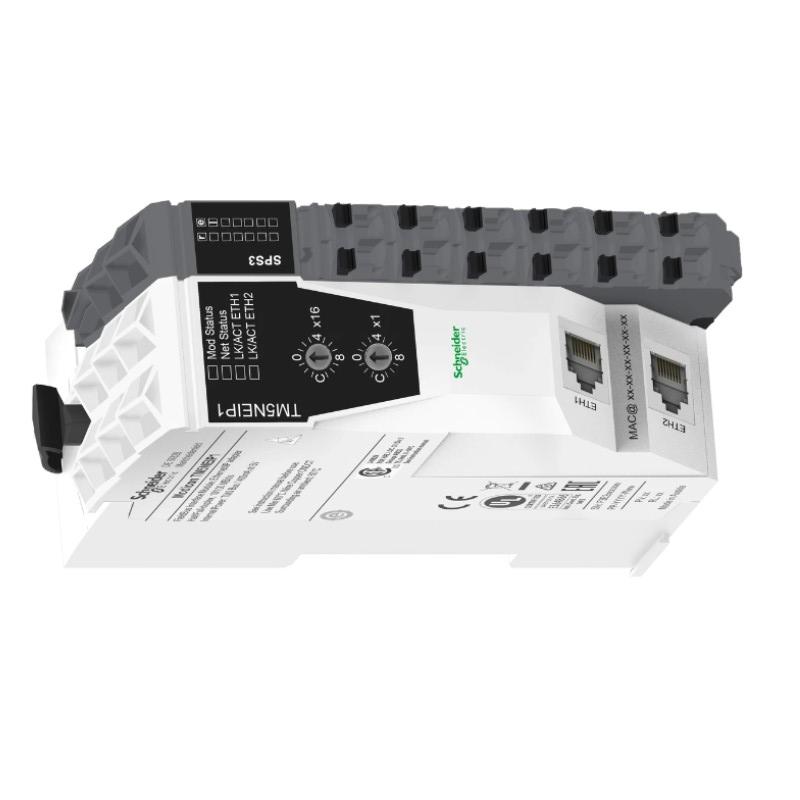

Schneider TM5NEIP1K EtherNet/IP Module Fault Symptoms
Schneider TM5NEIP1K communication faults often appear as lost I/O connection, intermittent PLC communication alarms, unstable remote signals, or unexpected machine stops. Effective Fault Diagnosis requires analyzing the complete communication path instead of immediately replacing the Module.
Typical field symptoms include:
EtherNet/IP connection drops randomly
PLC Controller reports adapter timeout
Remote I/O status changes between online and offline
Output commands are delayed
Input feedback disappears temporarily

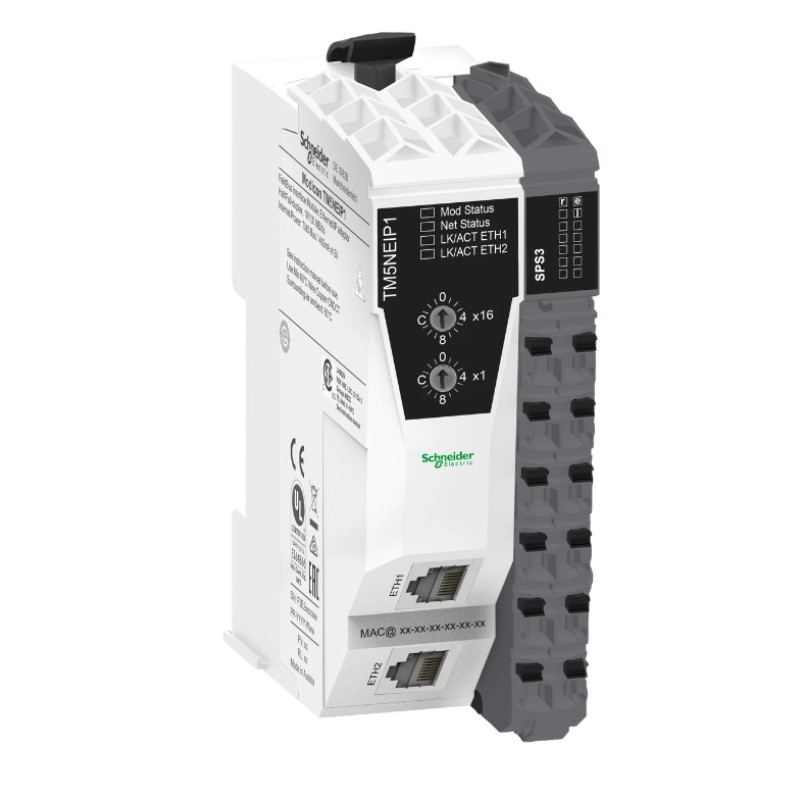

Schneider TM5NEIP1K Communication Fault Diagnosis Process
The first troubleshooting step is determining whether the failure is caused by the network, power system, or configuration.
A practical diagnostic approach:
Network Check
Measure communication stability between PLC and TM5NEIP1K.
Engineers should check:
Packet loss
Switch diagnostics
IP conflicts
Ethernet cable condition
Power Analysis
A communication module may restart when supply voltage fluctuates.
During one field repair case, operators reported random TM5NEIP1K offline alarms every 20–30 minutes. The initial assumption was an Ethernet hardware failure. However, voltage monitoring showed the 24 VDC supply dropped from 24.1 VDC to 20.4 VDC during motor startup. After replacing the overloaded power supply, communication remained stable for continuous production.
Schneider TM5NEIP1K EtherNet/IP Fault Root Cause Investigation
A common mistake during troubleshooting is focusing only on the EtherNet/IP connection.
The actual failure may come from:
Incorrect PLC scan configuration
Duplicate IP address
Unstable power distribution
Damaged Ethernet cable
Incorrect I/O assembly parameters
Loose TM5 internal connection
The diagnostic logic should follow the communication chain:
PLC Controller → Ethernet Network → TM5NEIP1K Module → TM5 I/O Bus → Field Devices
Breaking the chain into sections helps engineers identify the real failure point faster.
Schneider TM5NEIP1K Module Recovery and Repair Actions
After identifying the fault source, corrective actions should be performed systematically.
Recommended recovery actions:
Verify and correct IP parameters
Replace damaged communication cables
Restore correct System Configuration
Check module seating condition
Confirm stable 24 VDC power
Download updated PLC configuration
In a production line troubleshooting case, a TM5NEIP1K showed intermittent communication loss after several hours of operation. Diagnostics showed normal Ethernet traffic, but the module temperature increased because of poor cabinet ventilation. After improving airflow and checking cabinet installation conditions, the communication fault disappeared.
Schneider TM5NEIP1K Troubleshooting Guide for Industrial Applications
This Fault Troubleshooting Guide covers common Schneider TM5NEIP1K EtherNet/IP Fieldbus Interface Module problems:
Communication interruption
PLC Controller connection failure
Remote I/O offline condition
Network configuration errors
Power-related module reset
EtherNet/IP Fault Diagnosis
Experienced maintenance teams usually avoid replacing modules immediately. A structured troubleshooting process using signal analysis, voltage measurement, and configuration verification can prevent unnecessary downtime and reduce repair costs.
