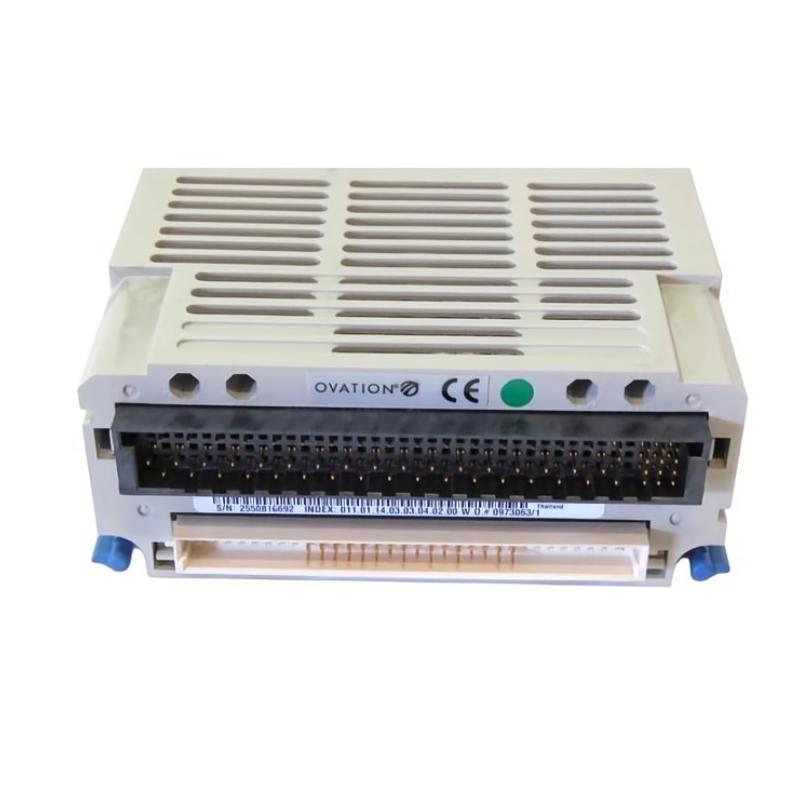

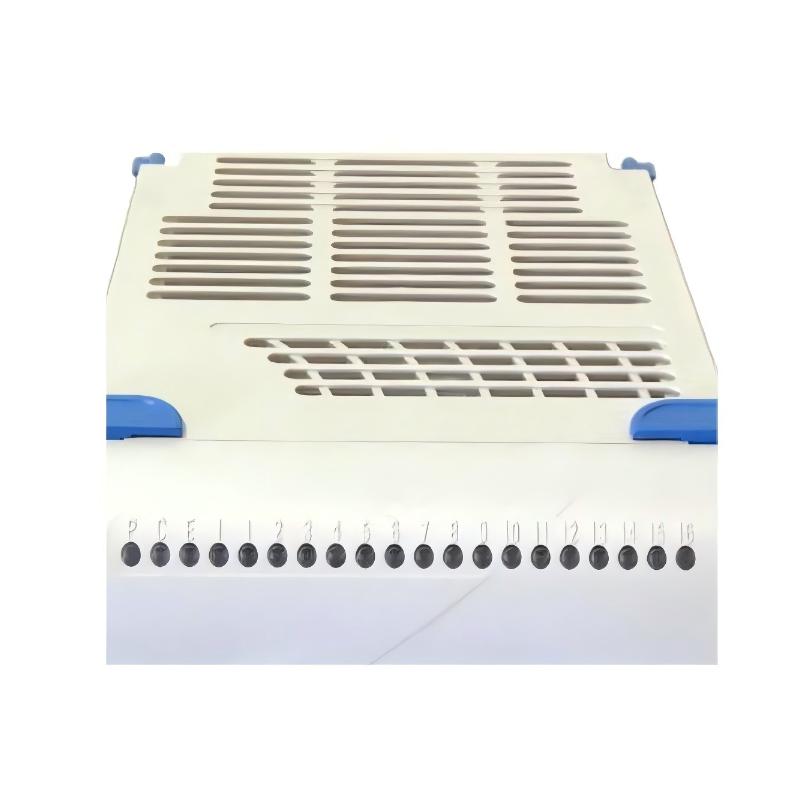

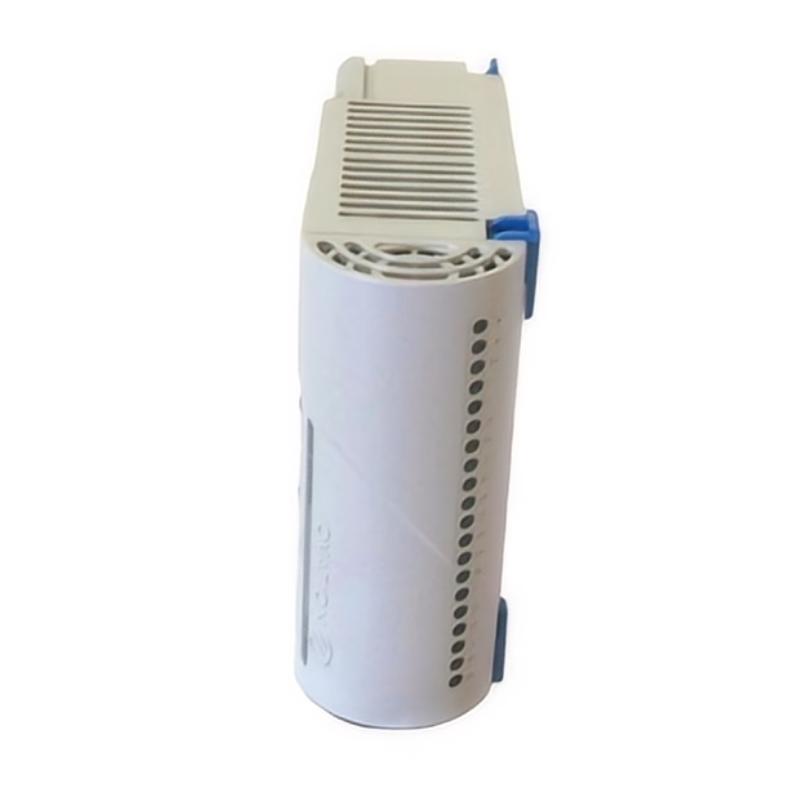

Ovation 1C31025G05 Analog Input Module

Overview

The Ovation 1C31025G05 is a high-performance analog input module designed for industrial automation and process control systems. It accurately acquires analog signals from field devices, enabling reliable monitoring and control within the Ovation distributed control system (DCS).

General Information

Part Number: 1C31025G05

Manufacturer: Emerson Automation Solutions

Brand: Ovation

Country of Origin: USA

Series: Ovation I/O Modules

Type: Analog Input Module

Mounting: Rack-mounted within Ovation control system chassis

Technology: High-resolution A/D conversion with integrated diagnostics

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: ≤ 8 W

Input Power Source: Supplied through system backplane

Protection: Overvoltage and reverse-polarity protection

Indicators: LED indicators for module status and fault conditions

Communication & Interface

Internal Communication: Backplane bus interface with Ovation controller

Signal Type: Analog input (current / voltage)

Input Range: Configurable 4–20 mA, 0–10 V, or other standard analog signals

Isolation: Channel-to-channel and system isolation

Diagnostics: Self-monitoring, fault detection, and status reporting

Configuration: Software-configurable through Ovation engineering tools

Environmental

Operating Temperature: 0 to +70 °C

Storage Temperature: −20 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 (installed in control cabinet)

Dimensions & Weight

Dimensions (L × W × H): 41 × 159 × 108 mm

Weight: 0.6 kg
