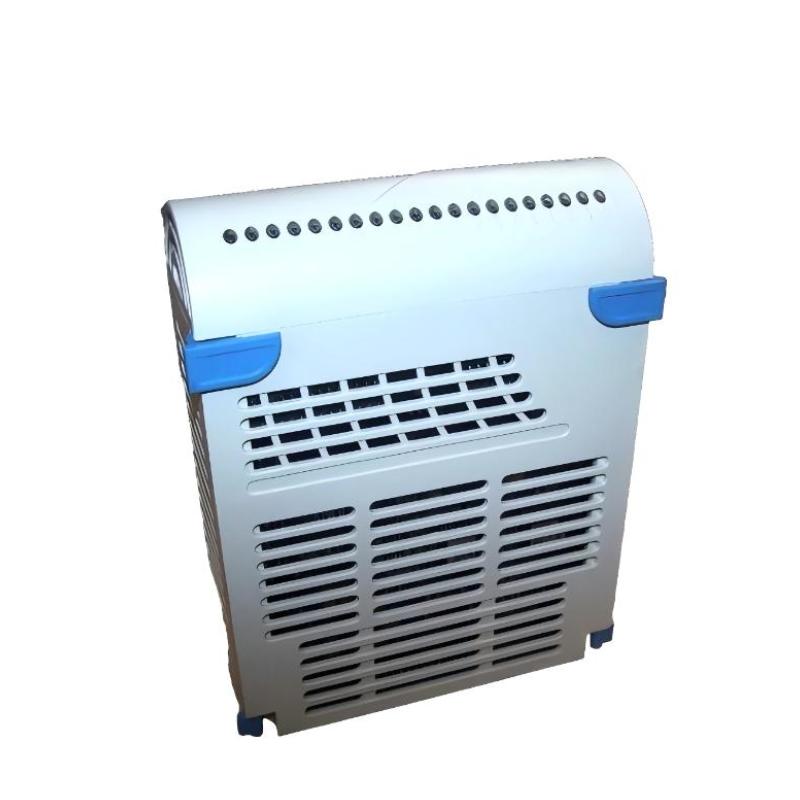

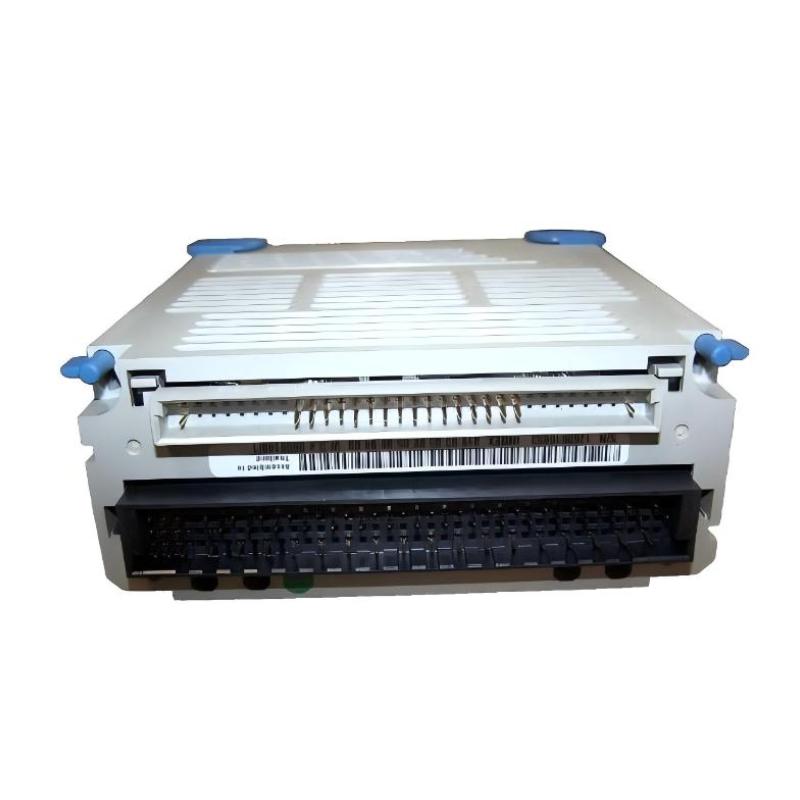

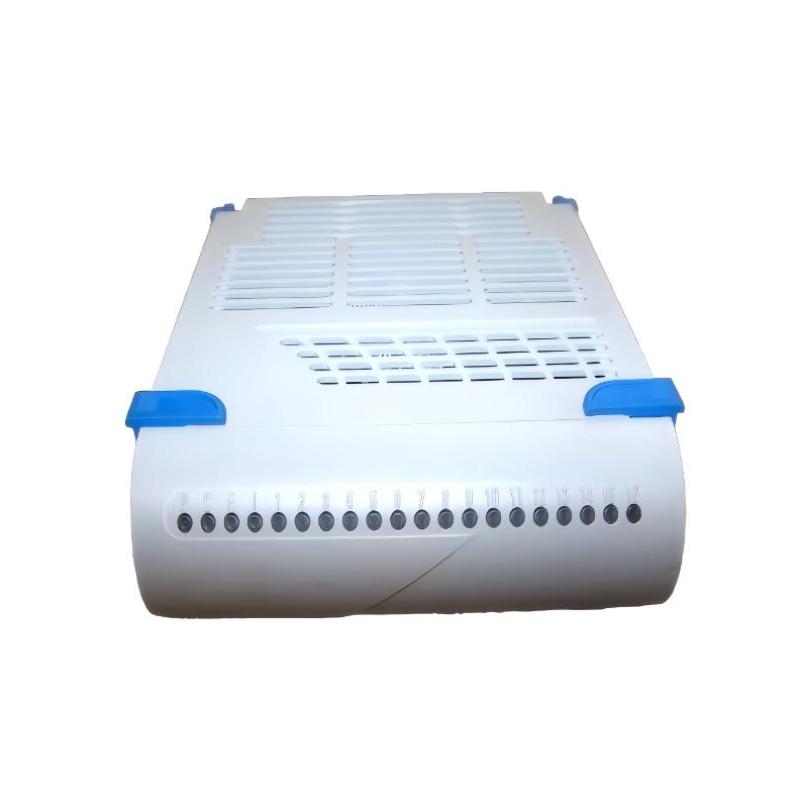

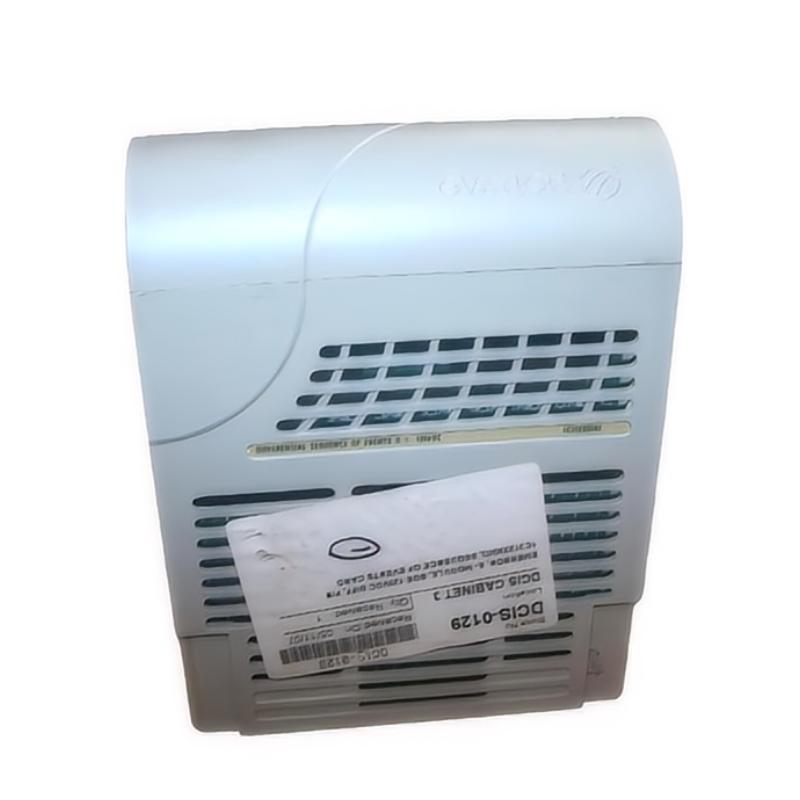

Ovation 1C31025G03 Analog Input Module

Overview

The Ovation 1C31025G03 Analog Input Module is designed for Emerson’s Ovation distributed control system. It is used to acquire and convert continuous analog signals from field instruments into digital data for precise monitoring, control, and process optimization in industrial automation environments.

General Information

Part Number: 1C31025G03

Manufacturer: Emerson

Brand: Ovation

Country of Origin: United States

Series: Ovation Control System

Type: Analog Input Module

Mounting: Rack-mounted installation inside control cabinet

Technology: High-precision signal acquisition with built-in diagnostic capabilities

Power Specifications

Supply Voltage: Powered via system backplane

Input Signal Range: Typically 0–10 V or 4–20 mA (system configurable)

Power Consumption: Low module-level consumption

Input: Direct connection from field sensors and transmitters

Protection: Overvoltage and input protection integrated at system level

Indicators: LED indicators for channel status and module health

Communication & Interface

System Interface: Backplane communication with controller

Input Channels: Multiple analog channels for continuous signal acquisition

Signal Processing: High-resolution analog-to-digital conversion

Diagnostics: Channel fault detection, open wire detection, and status monitoring

Operator Interface: No direct interface; configuration via system engineering tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial cabinet installation environment required

Dimensions & Weight

Dimensions (L × W × H): 41 × 159 × 108 mm

Weight: 0.6 kg
