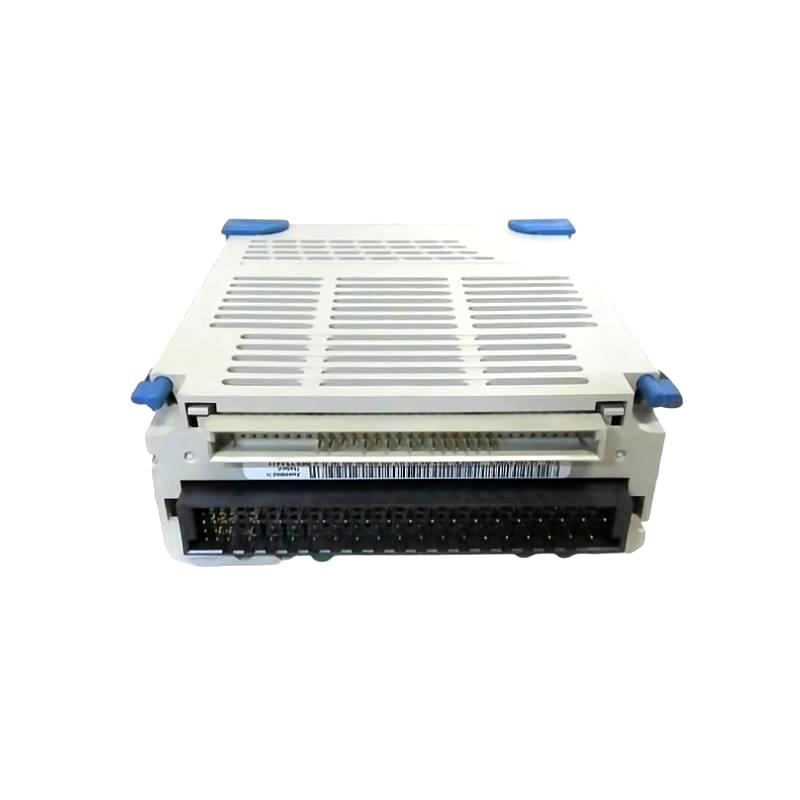

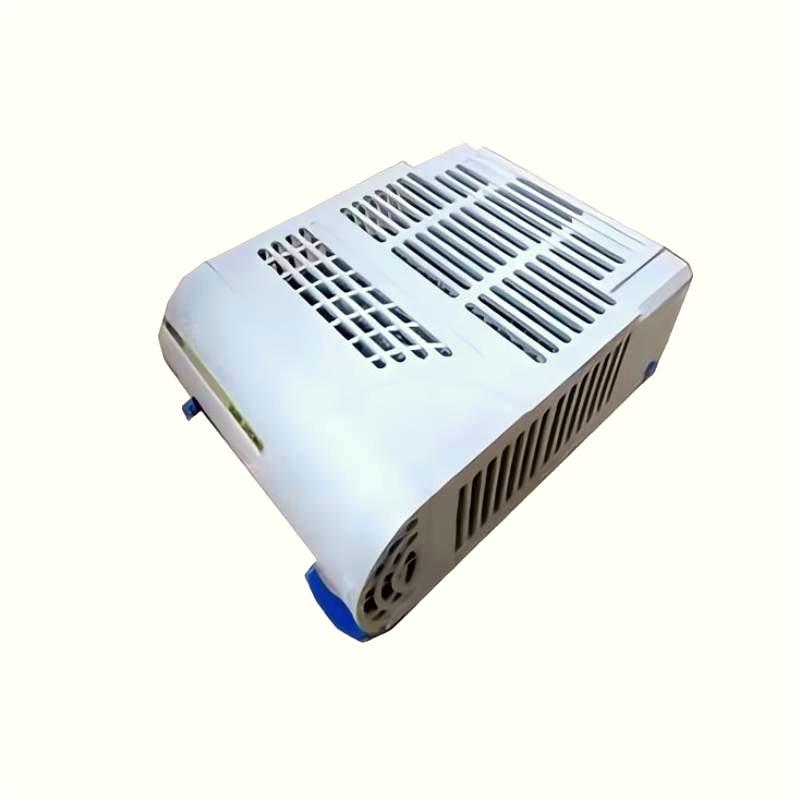

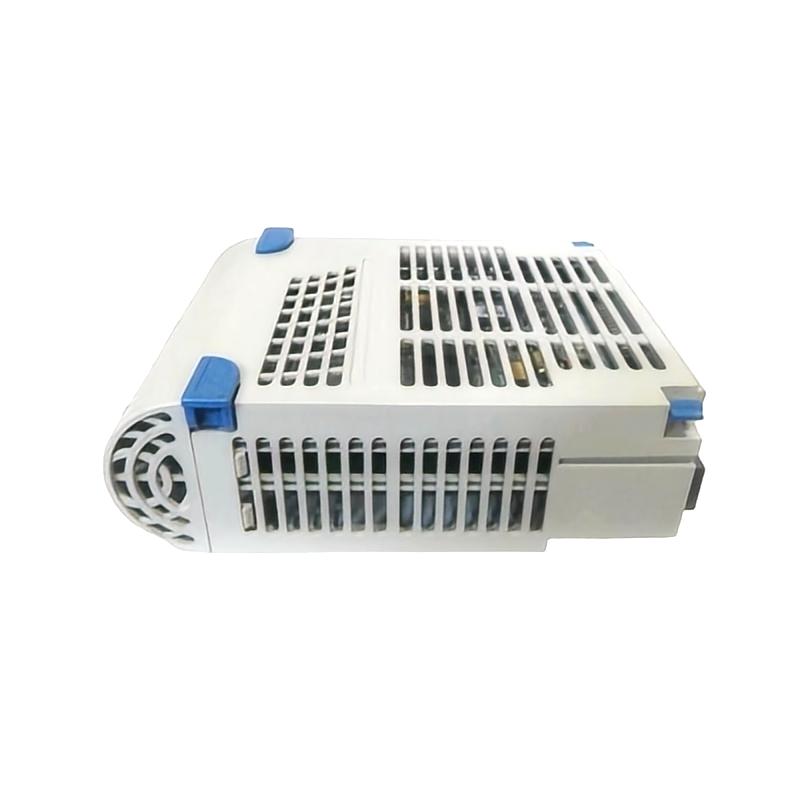

Ovation 1C31025G02 Digital Output Module

Overview

The Ovation 1C31025G02 is a digital output module designed for Emerson’s Ovation distributed control system. It is used to convert control signals from the controller into discrete electrical outputs, enabling precise switching and reliable control of field devices in industrial automation applications.

General Information

Part Number: 1C31025G02

Manufacturer: Emerson

Brand: Ovation

Country of Origin: United States

Series: Ovation Control System

Type: Digital Output Module

Mounting: Rack-mounted installation within control cabinet

Technology: High-reliability digital switching module with system diagnostics support

Power Specifications

Supply Voltage: Powered via system backplane

Output Voltage: Typically 24 V DC (system dependent)

Power Consumption: Low module-level consumption

Input: Control signals from controller via backplane

Protection: Short-circuit and overload protection supported through system design

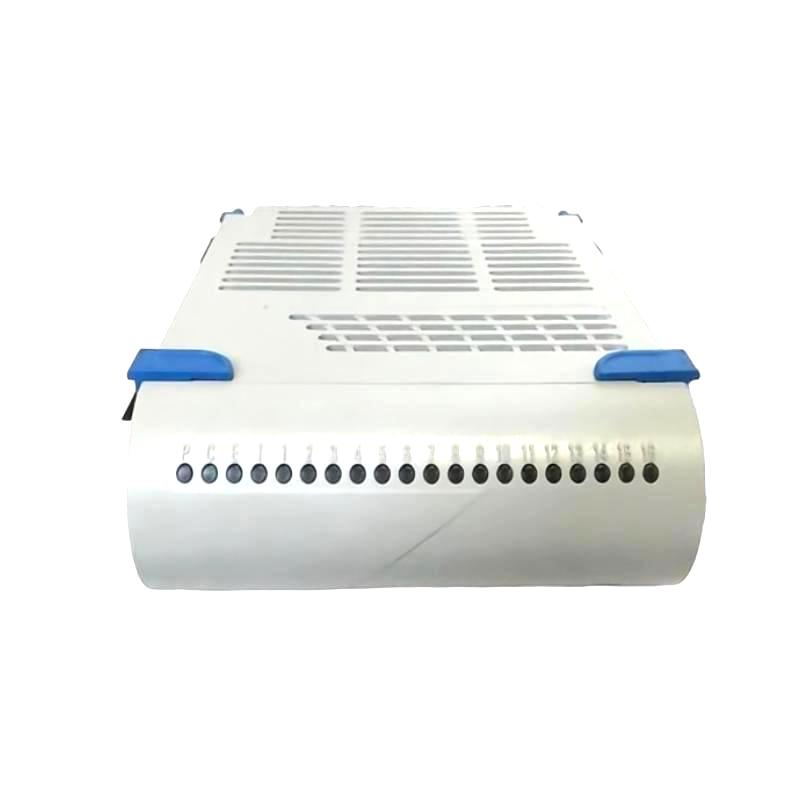

Indicators: LED status indicators for channel and module health

Communication & Interface

System Interface: Integrated backplane communication

Output Channels: Multiple discrete output channels for field device control

Signal Type: Digital ON/OFF control signals

Diagnostics: Channel-level fault detection and module status reporting

Operator Interface: No direct interface; managed via control system software

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for industrial control cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 41 × 159 × 108 mm

Weight: 0.6 kg
