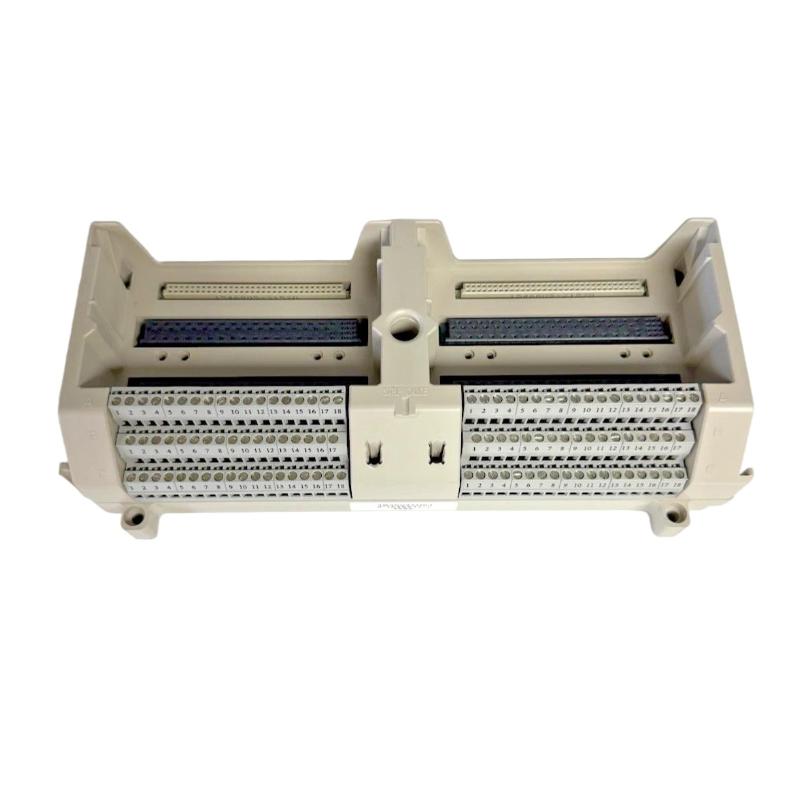

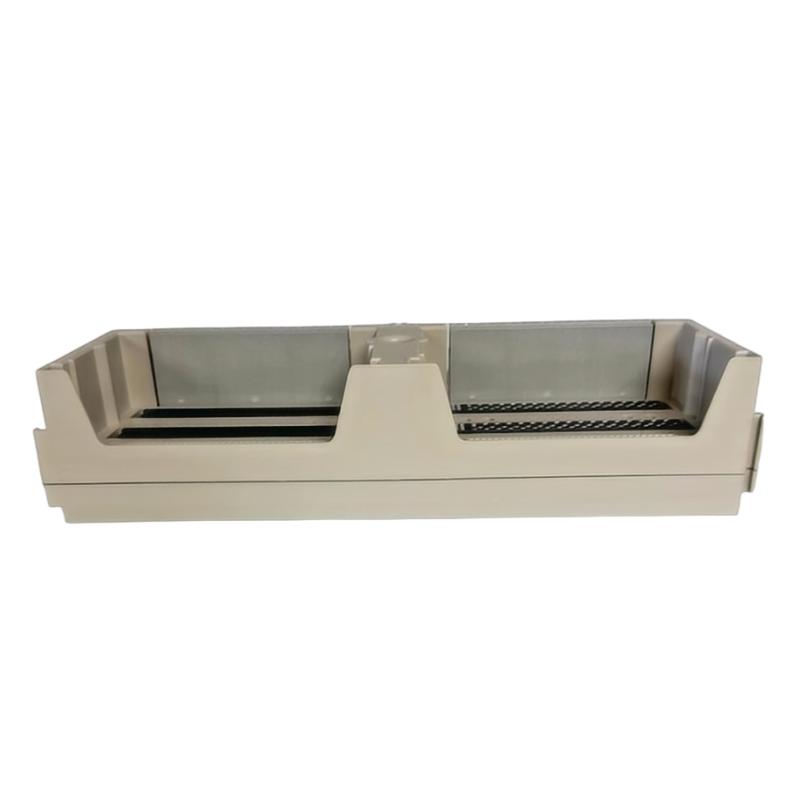

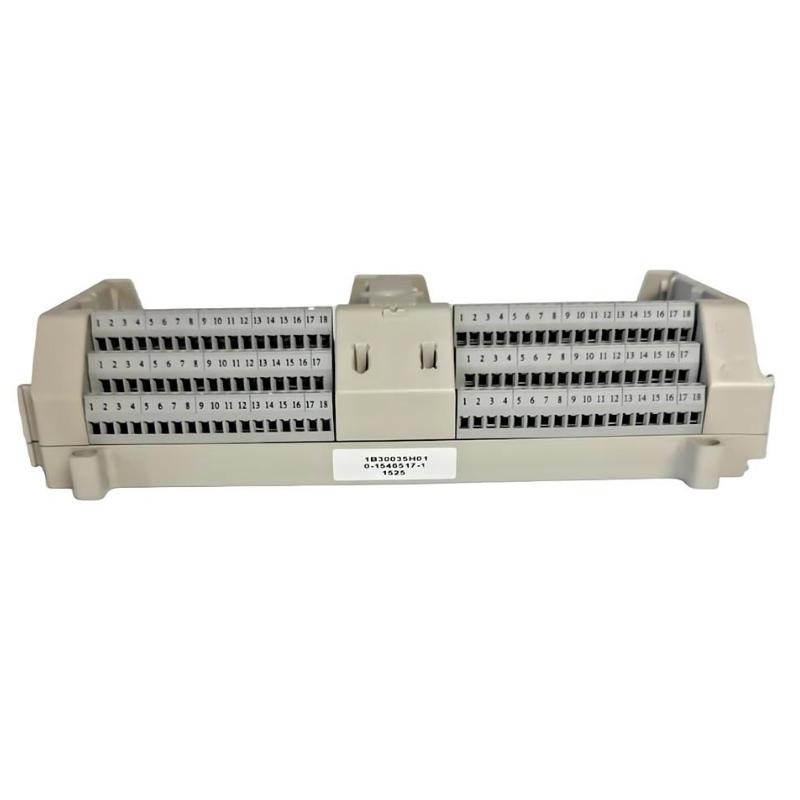

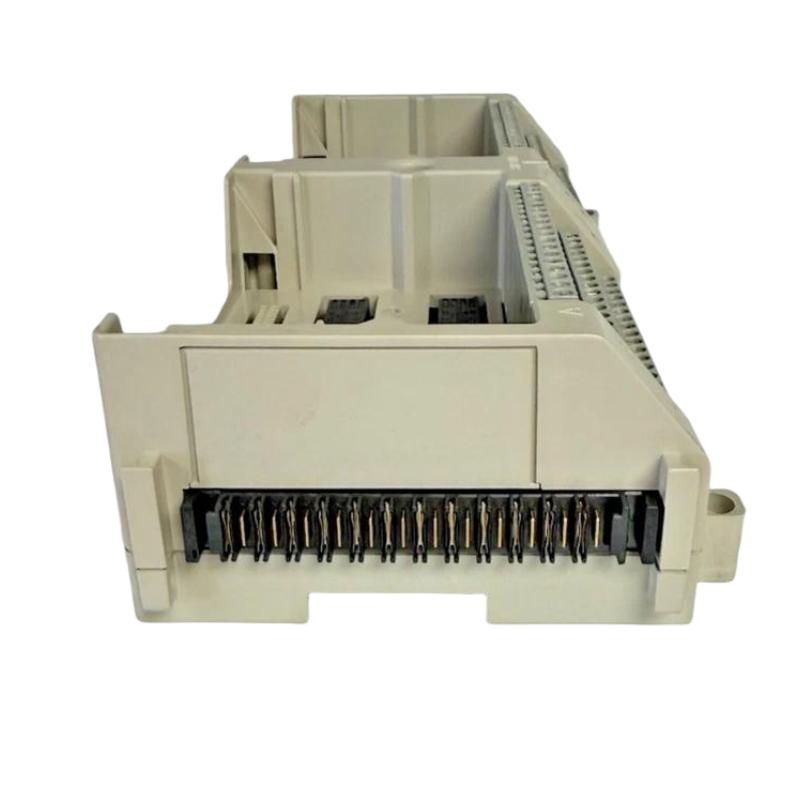

Ovation 1B30035H01 I/O Terminal Base

Overview

The Ovation 1B30035H01 I/O Terminal Base is a modular foundation unit designed for Emerson’s Ovation control system. It provides secure mounting and electrical connection points for I/O modules, ensuring stable signal transmission, efficient wiring organization, and reliable operation in industrial automation environments.

General Information

Part Number: 1B30035H01

Manufacturer: Emerson

Brand: Ovation

Country of Origin: United States

Series: Ovation Control System

Type: I/O Terminal Base

Mounting: DIN rail or cabinet-mounted installation

Technology: Modular terminal architecture supporting flexible I/O configuration and system expansion

Power Specifications

Supply Voltage: Supplied via system backplane or connected I/O modules

Power Consumption: Minimal, dependent on installed modules

Input: Backplane and terminal-level electrical distribution

Protection: Designed with system-level electrical isolation and protection support

Indicators: Status indication provided through attached I/O modules and controller system

Communication & Interface

System Interface: Backplane communication with I/O modules

Signal Handling: Supports secure field signal routing to control system

Compatibility: Designed for Ovation I/O module integration

Diagnostics: System-level diagnostics via controller and configuration software

Operator Interface: No direct interface; configured through control system tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial cabinet installation environment (protected enclosure required)

Dimensions & Weight

Dimensions (L × W × H): 279 × 133 × 89 mm

Weight: 1 kg
