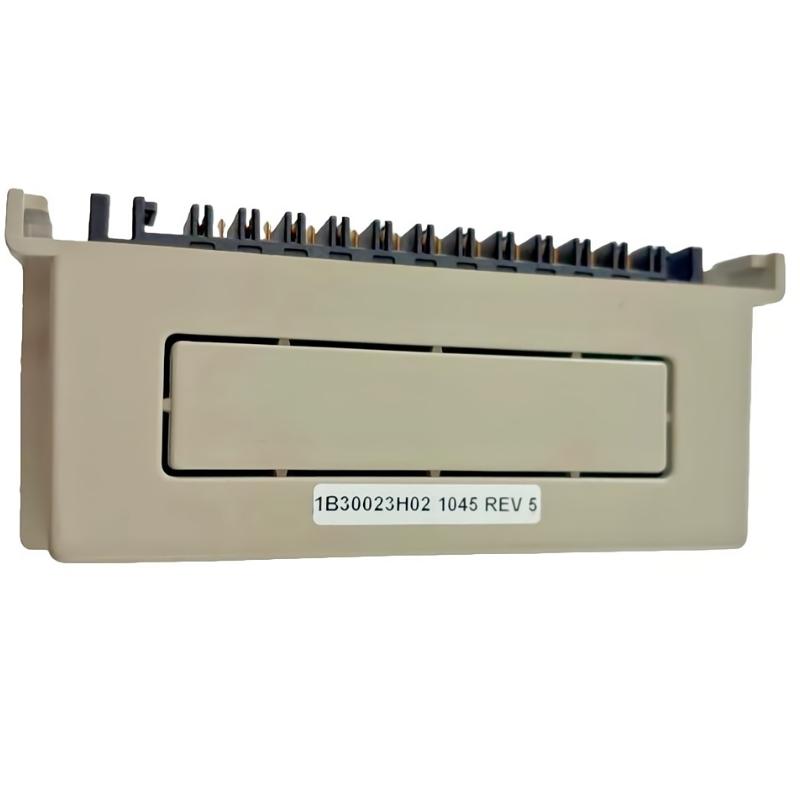

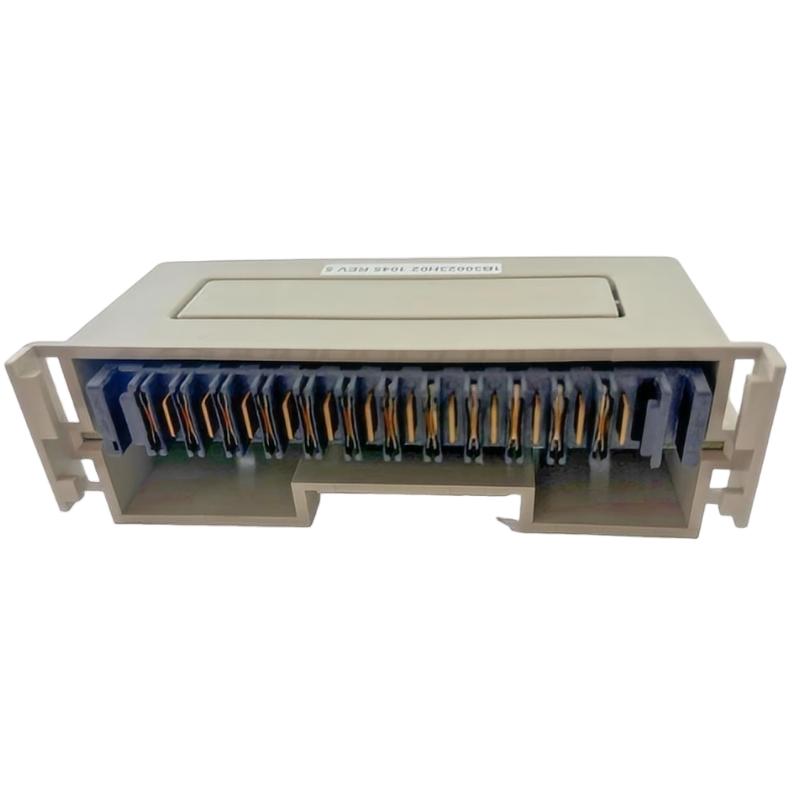

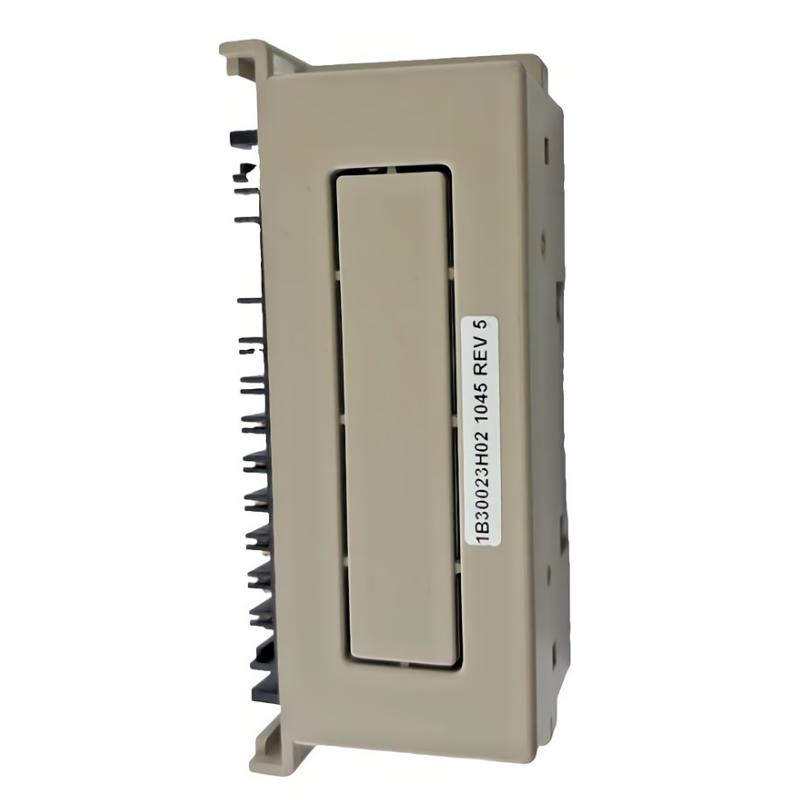

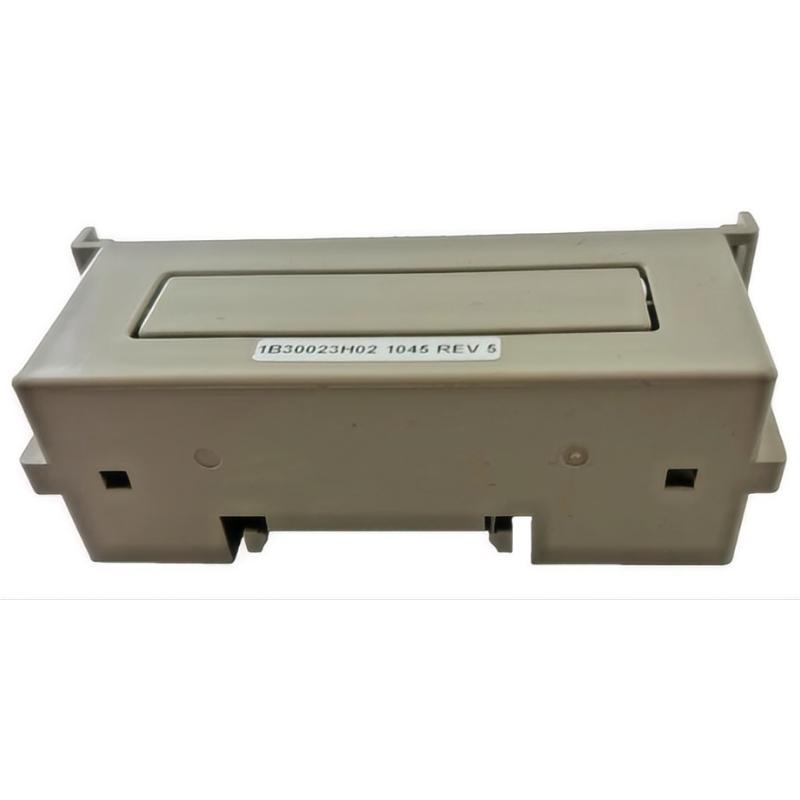

Ovation 1B30023H02 PLC Module/Rack

Overview

The Ovation 1B30023H02 is a PLC module/rack component designed for Emerson’s Ovation distributed control system. It provides a reliable structural and electrical platform for mounting control modules, enabling stable communication, efficient signal handling, and continuous operation in industrial automation environments.

General Information

Part Number: 1B30023H02

Manufacturer: Emerson

Brand: Ovation

Country of Origin: United States

Series: Ovation Control System

Type: PLC Rack / Module Carrier

Mounting: Rack-mounted installation inside industrial control cabinet

Technology: Modular automation architecture with high system stability and redundancy support

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Depends on installed modules, optimized for low rack-level load

Input: Backplane distributed power architecture

Protection: Integrated system-level protection including overload and short-circuit control

Indicators: Status indication provided through system modules and controller diagnostics

Communication & Interface

System Interface: High-speed internal backplane communication bus

Data Transfer: Real-time communication between controller and modules

Compatibility: Designed for Emerson Ovation I/O and control modules

Diagnostics: Full system diagnostics via engineering and control software

Operator Interface: No direct interface; managed through central control system

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for installation inside protected industrial enclosures

Dimensions & Weight

Dimensions (L × W × H): 100 × 50 × 25 mm

Weight: 0.3 kg
