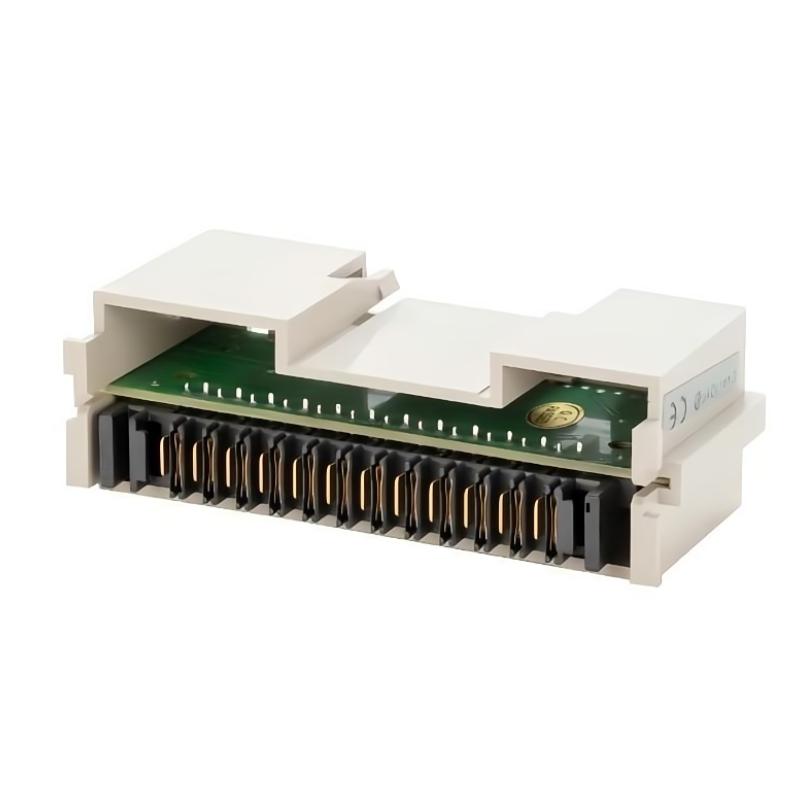

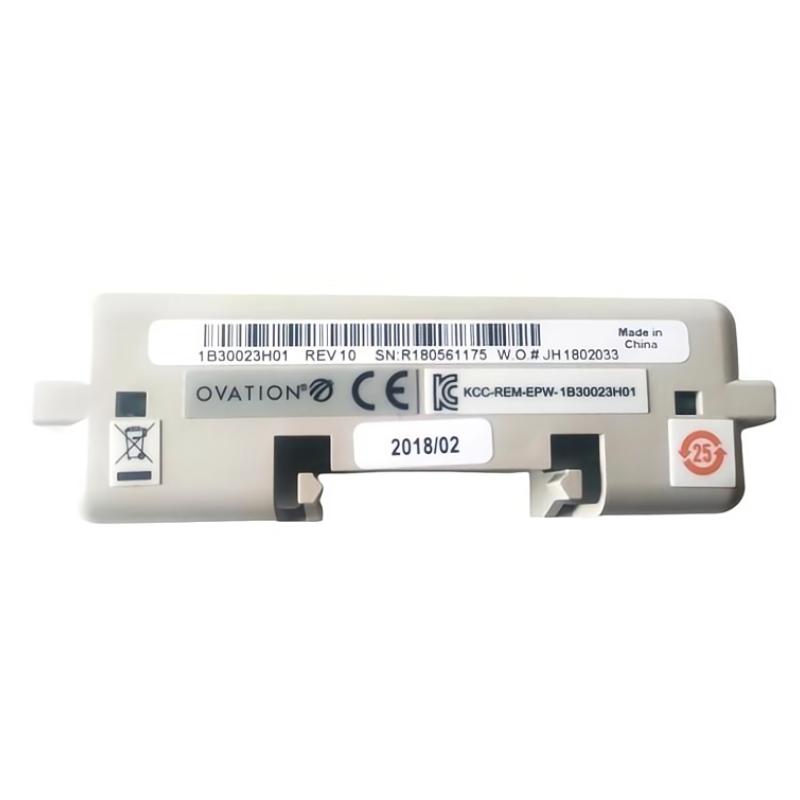

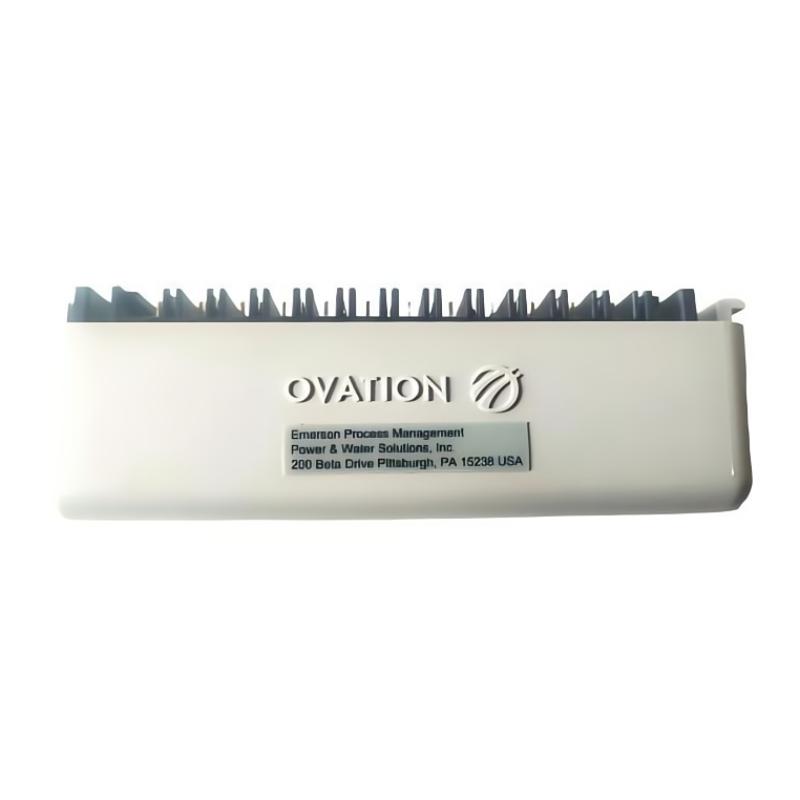

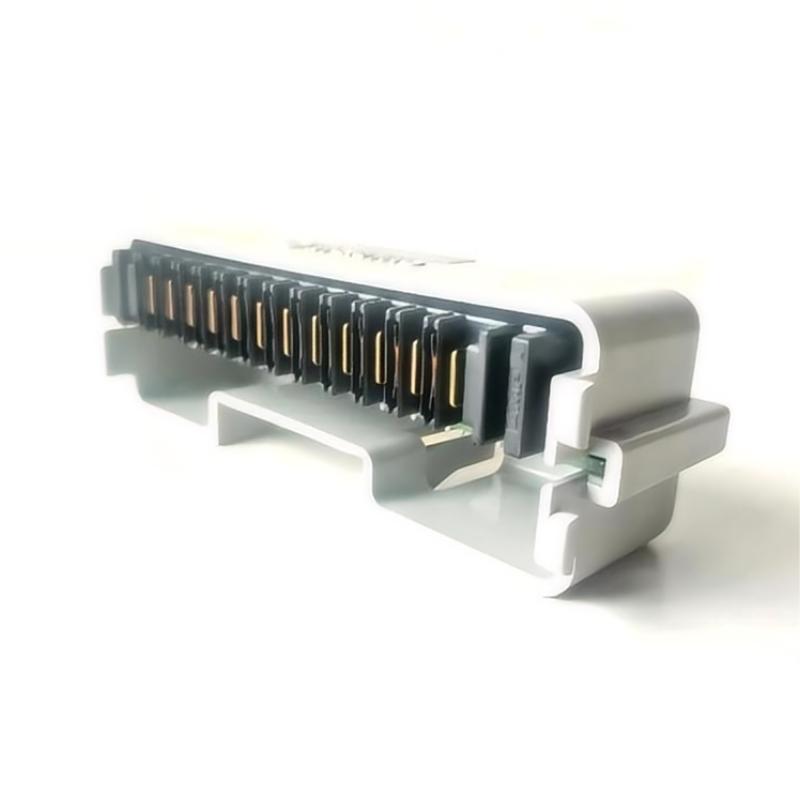

Ovation 1B30023H01 PLC Module/Rack

Overview

The Ovation 1B30023H01 is a PLC module/rack component designed for Emerson’s Ovation distributed control system. It provides a stable mounting platform for control modules, ensuring reliable system integration, efficient signal distribution, and continuous operation in industrial automation environments.

General Information

Part Number: 1B30023H01

Manufacturer: Emerson

Brand: Ovation

Country of Origin: United States

Series: Ovation Control System

Type: PLC Rack / Module Carrier

Mounting: Rack-mounted installation inside control cabinet

Technology: Modular control architecture with high reliability and system scalability

Power Specifications

Supply Voltage: Powered via system backplane

Power Consumption: Dependent on installed modules, low rack-level consumption

Input: Backplane distributed power system

Protection: System-level protection including overload and short-circuit safeguarding

Indicators: Status indication via system modules and controller interface

Communication & Interface

System Interface: High-speed internal backplane communication

Data Transfer: Real-time module-to-controller signal exchange

Compatibility: Emerson Ovation I/O and controller modules

Diagnostics: System-level diagnostics via control software

Operator Interface: No direct interface; managed through central controller system

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for installation inside industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 100 × 50 × 25 mm

Weight: 0.3 kg
