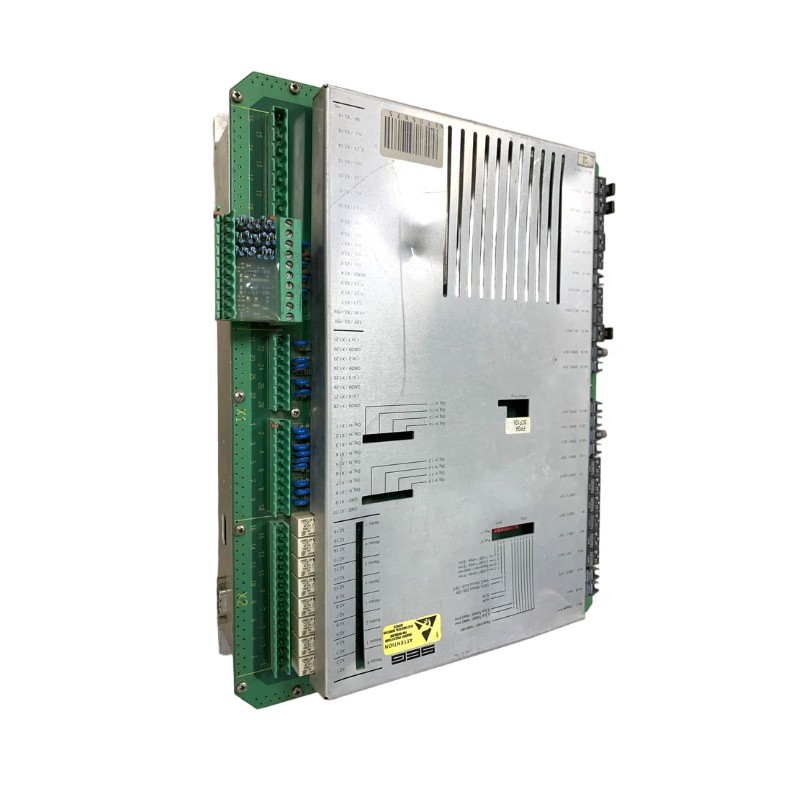

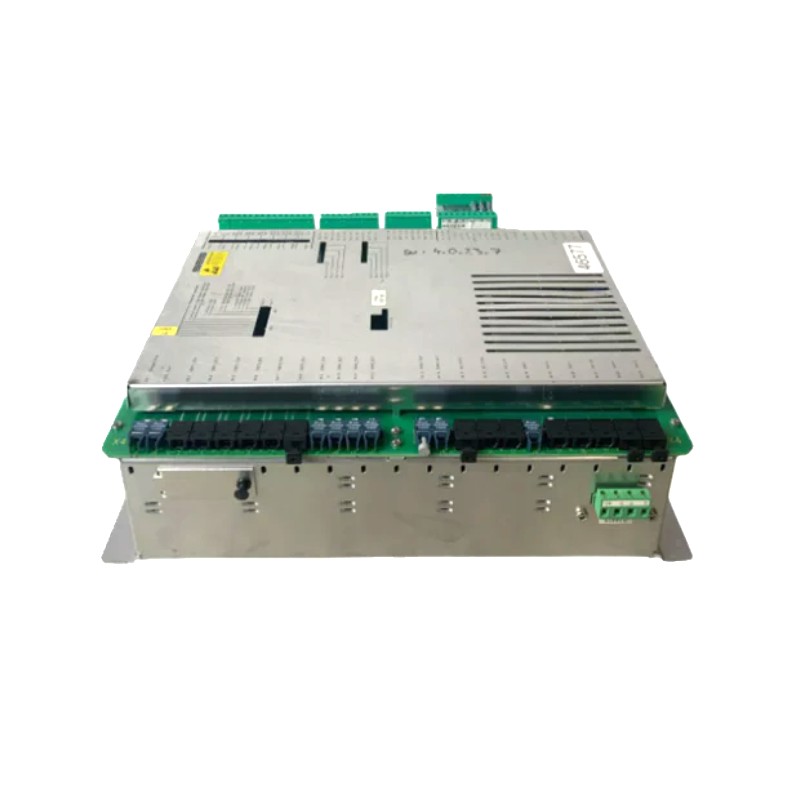

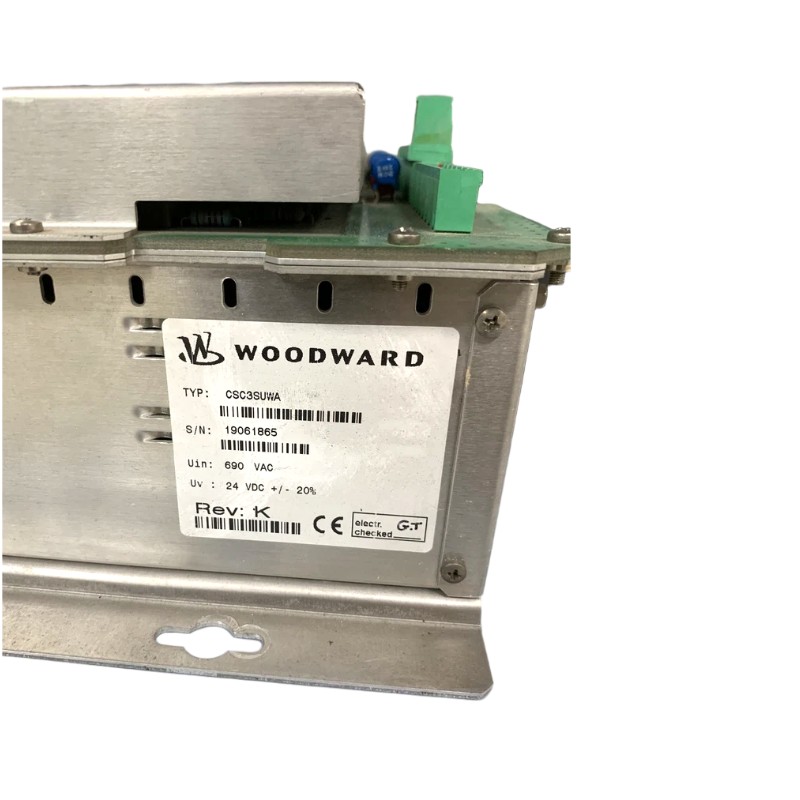

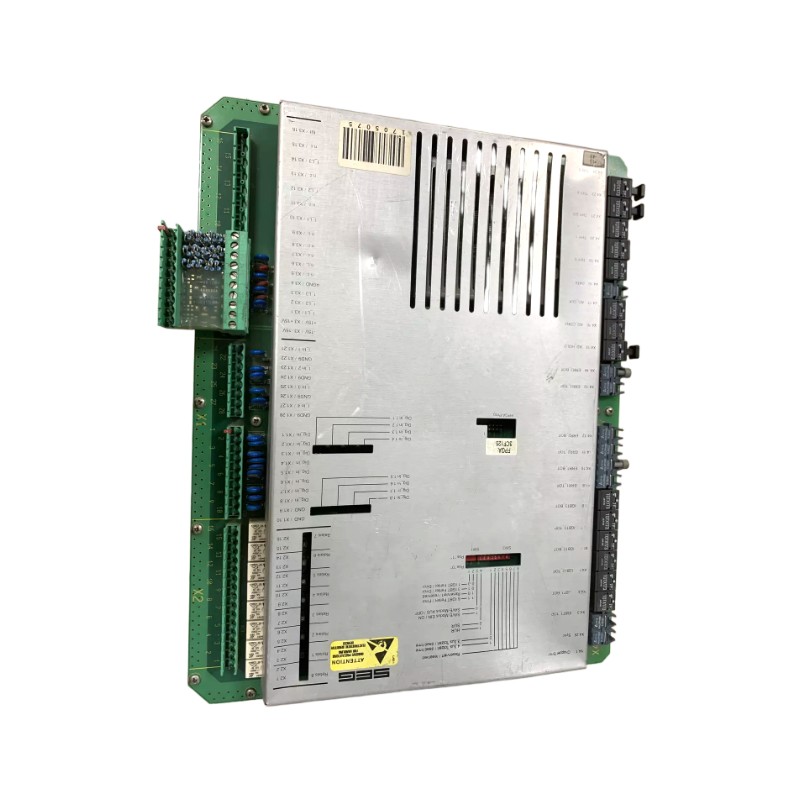

Woodward CSC3SUWA | Control / Switch Interface Module Original

Overview
The Woodward CSC3SUWA is a control‑switch interface module designed for use in engine, turbine, or generator control systems. It provides operator–system interface functionality, allowing manual control inputs to be sent to automation and safety logic modules.

General Information
Part Number: CSC3SUWA
Manufacturer: Woodward
Brand / Country of Origin: Woodward / USA
Type: Control Switch / Interface Module
Series: CSC (Control Switch / Control Interface)
Mounting: Panel‑mount or console‑mount in control cabinet or operator console
Technology: Mechanical switch interface with logic‑level output compatible with Woodward control systems

Power Specifications
Supply Voltage: 24 V DC (nominal for logic interface)
Power Consumption: Minimal — module primarily functions as operator interface, not as active logic controller
Protection: Designed for industrial control environments, with internal isolation and noise protection
Indicators: May include basic status indicators depending on system configuration (e.g. power, readiness)

Communication & Interface
Input Controls: Manual push‑buttons, switches, or selector switches for commands such as start, stop, reset, mode select, manual override, etc.
Output Signals: Logic‑level or discrete digital outputs to interface with main controller or relay modules
Function: Acts as a human‑machine interface (HMI) component — capturing operator commands and passing them to control logic modules
Compatibility: Designed to integrate with Woodward control and relay modules in turbine/engine control systems

Environmental
Operating Temperature: –20 °C to +70 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: Suitable for installation inside standard control panel/enclosure

Dimensions & Weight
Dimensions (L × W × H): Approx. 120 × 80 × 50 mm
Weight: ~0.5 kg

Original factory-new items in stock, with quick responses from our customer support team.
