Overview

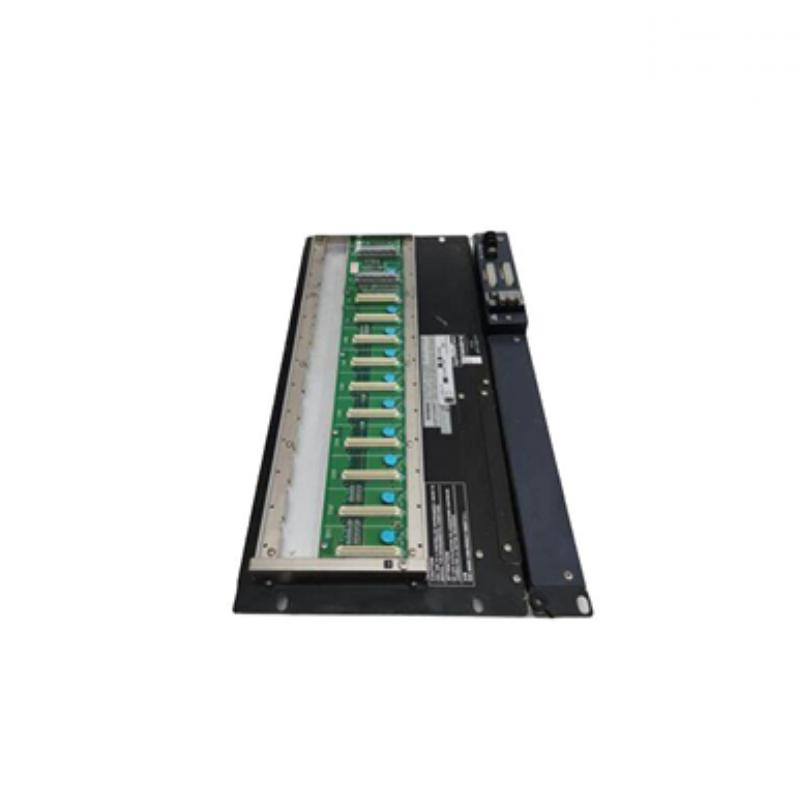

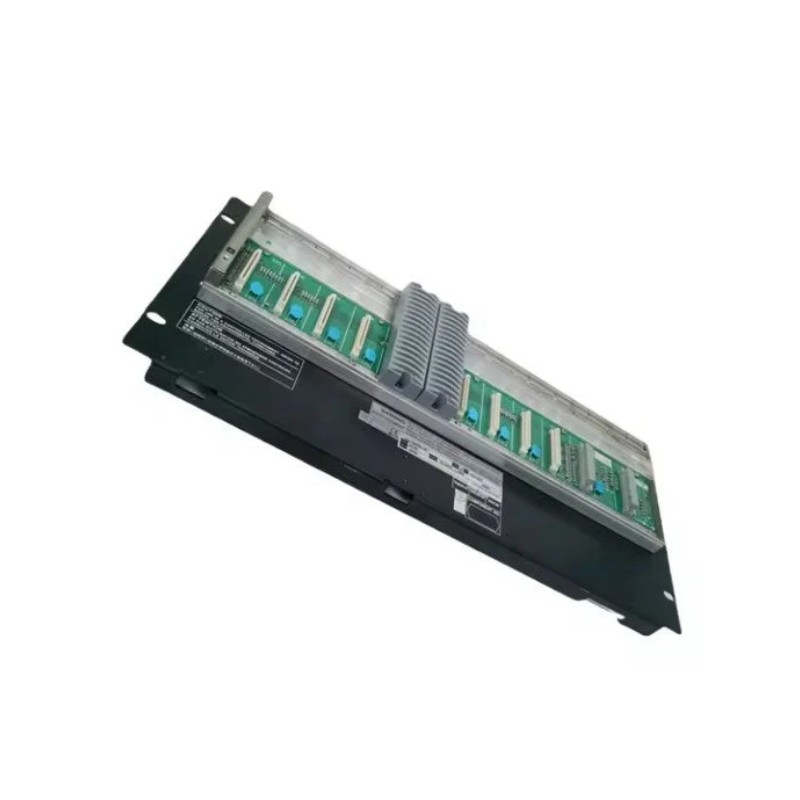

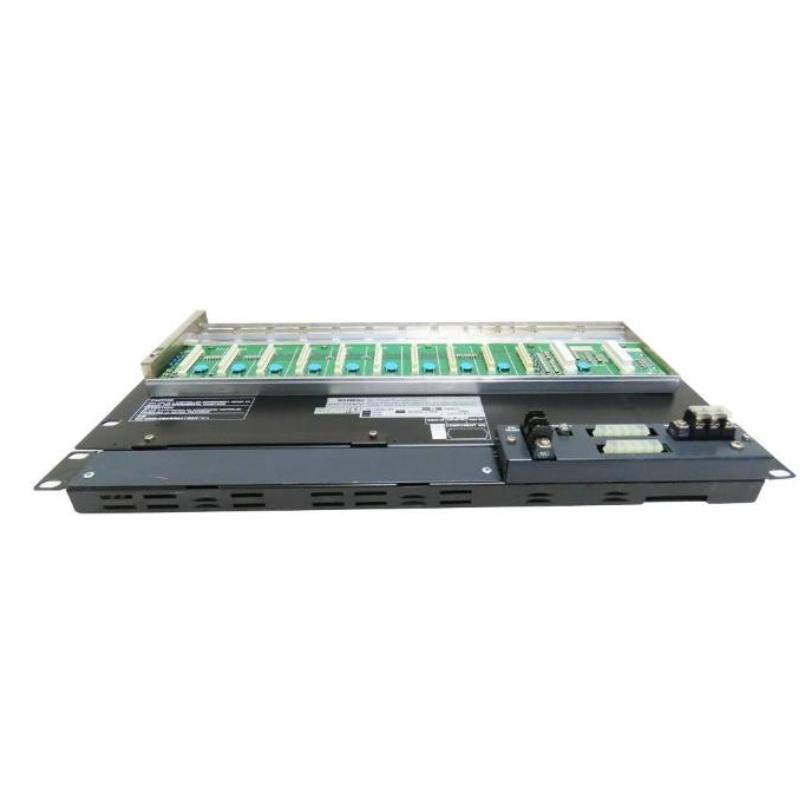

The Yokogawa AFV10D-S41211 is a Vnet/IP communication module designed for CENTUM VP and ProSafe-RS systems. It delivers stable, high-speed real-time communication between field control stations and the plant network, ensuring reliable operation in critical automation environments.
General Information
Part Number: AFV10D-S41211
Manufacturer: Yokogawa
Series: AFV10D
Type: Vnet/IP Communication Module
Application: Distributed control systems, redundant communication networks, plant integration
Mounting: Rack-mounted within system nodes
Technology: High-performance Vnet/IP network processing with advanced diagnostics
Power Specifications
Supply Voltage: Provided through the system backplane
Power Consumption: Standard AFV10D communication module consumption
Protection: Built-in surge protection, electrical isolation, fault-tolerant circuitry
Indicators: LEDs for power, link activity, module status, and fault notification
Communication & Interface
Network Type: Vnet/IP real-time Ethernet
Function: Connects field control stations to system networks
Diagnostics: Continuous module self-diagnostics and communication monitoring
Interface: LED displays and module configuration options
Environmental
Operating Temperature: Standard control-cabinet operating range
Humidity: Tolerates non-condensing industrial humidity levels
Protection Rating: Designed for closed industrial control environments
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: 8 kg
