Overview

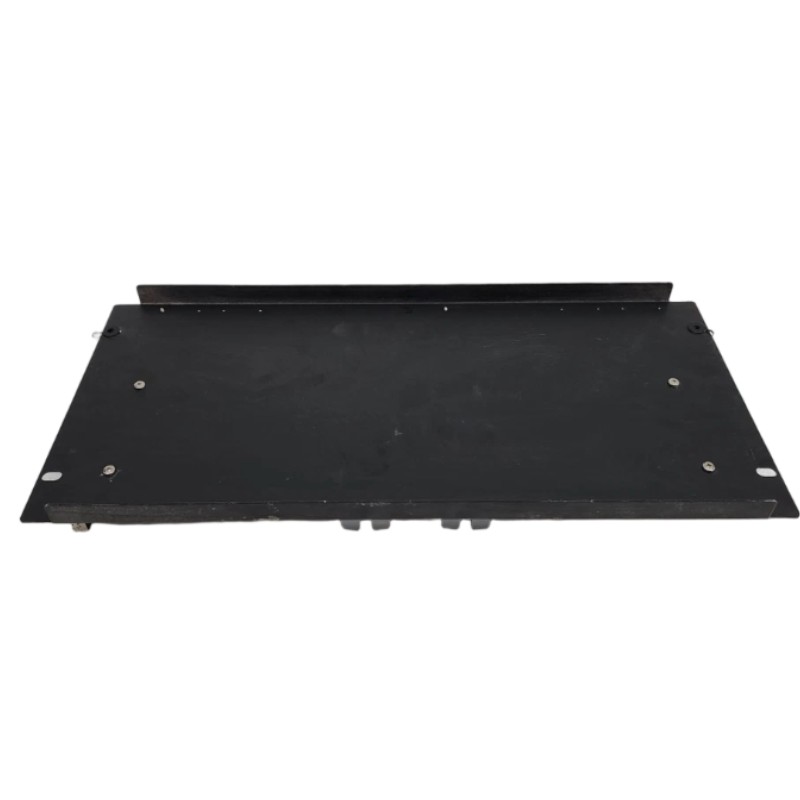

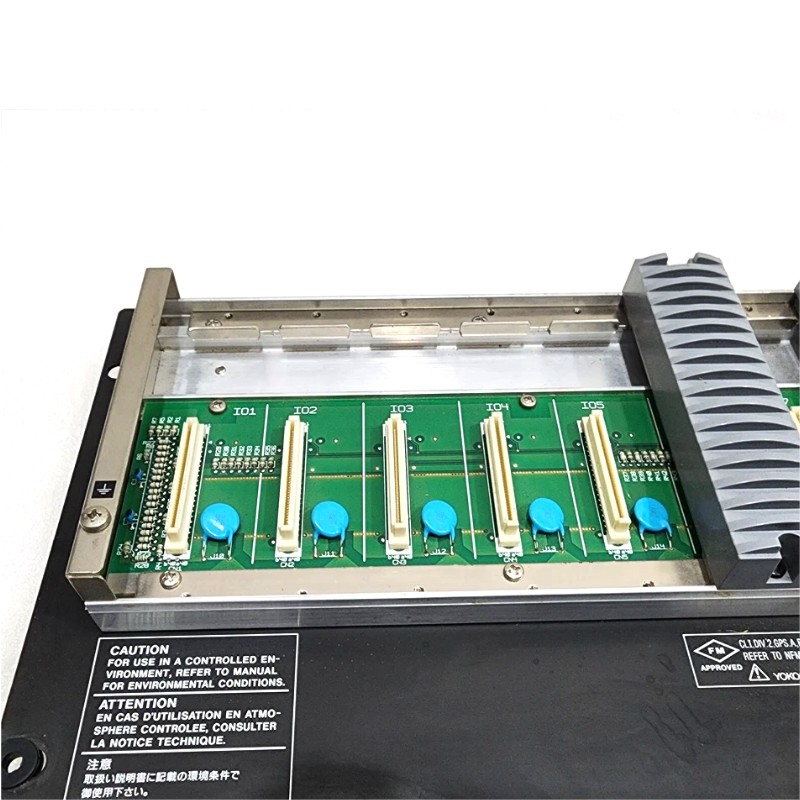

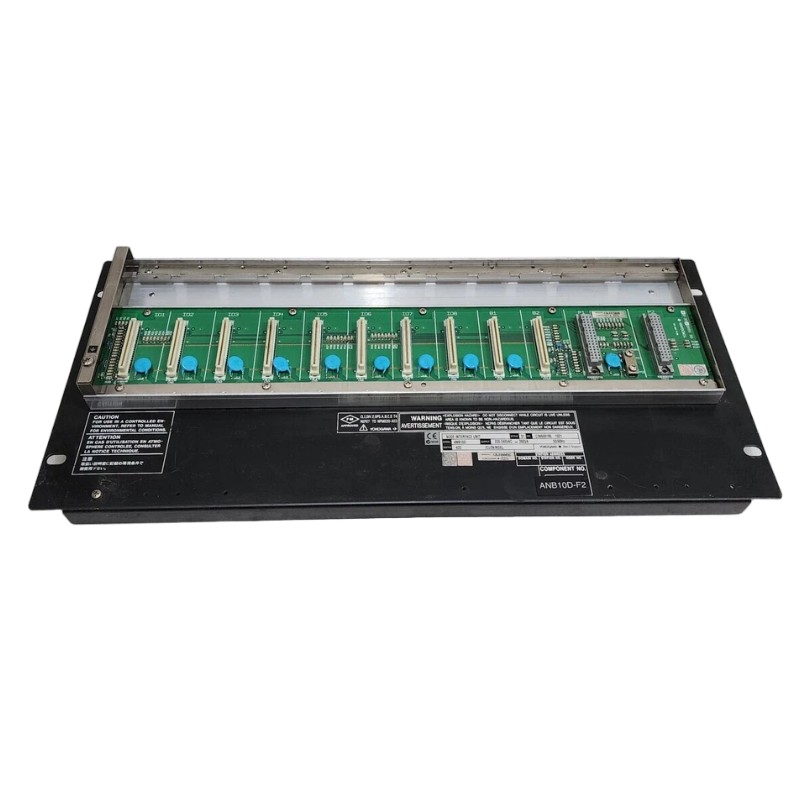

The Yokogawa AFV10D-S41251 is a Vnet/IP communication module used in CENTUM VP and ProSafe-RS systems. It enables stable, high-speed, real-time data communication between field control stations and the plant network, supporting reliable and redundant system operation.
General Information
Part Number: AFV10D-S41251
Manufacturer: Yokogawa
Series: AFV10D
Type: Vnet/IP Communication Module
Application: Distributed control systems, process automation networks, redundant communication environments
Mounting: Rack-mounted within system node assemblies
Technology: Enhanced Vnet/IP network processing with diagnostic and redundancy capabilities
Power Specifications
Supply Voltage: Supplied through system backplane
Power Consumption: Standard AFV10D module power usage
Protection: Internal surge protection, electrical isolation, fault-protection design
Indicators: LEDs for module status, link activity, power, and fault signals
Communication & Interface
Network Type: Vnet/IP industrial real-time Ethernet
Function: Provides network communication between controllers and plant systems
Diagnostics: Self-diagnostic functions, communication monitoring, fault detection
Interface: LED indicators and configuration settings
Environmental
Operating Temperature: Suitable for Yokogawa control cabinet installations
Humidity: Supports non-condensing industrial humidity levels
Protection Rating: Designed for enclosed automation system environments
Dimensions & Weight
Dimensions (L × W × H): 207 × 265.9 × 482.6 mm
Weight: 8 kg
