Overview

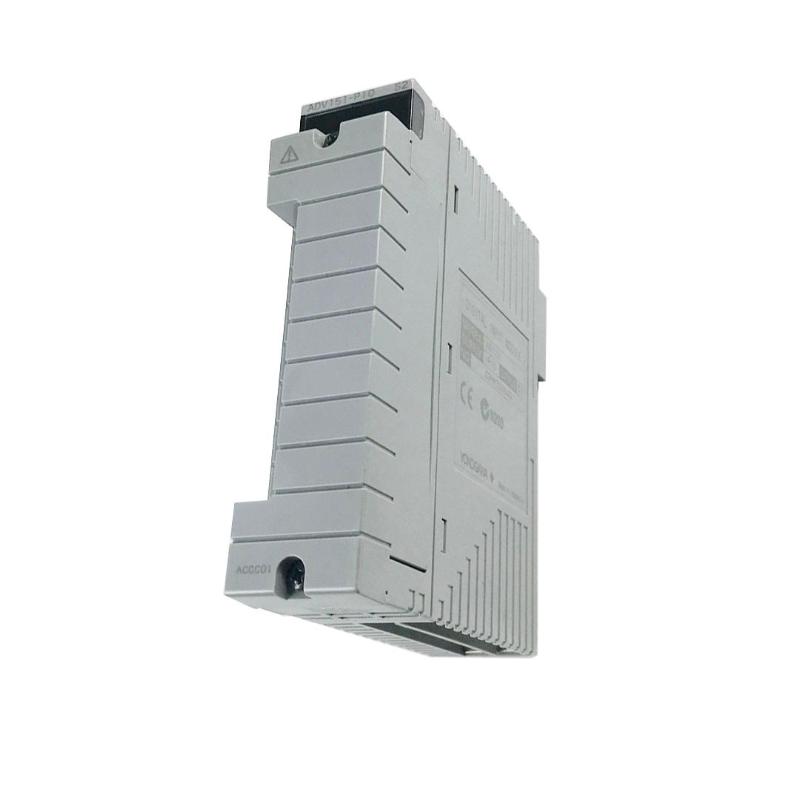

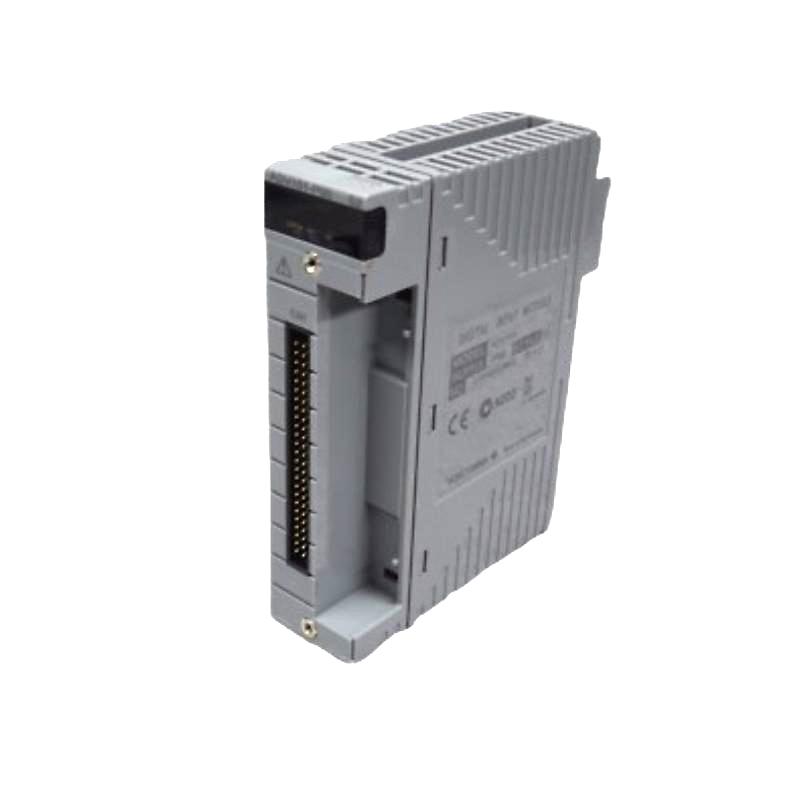

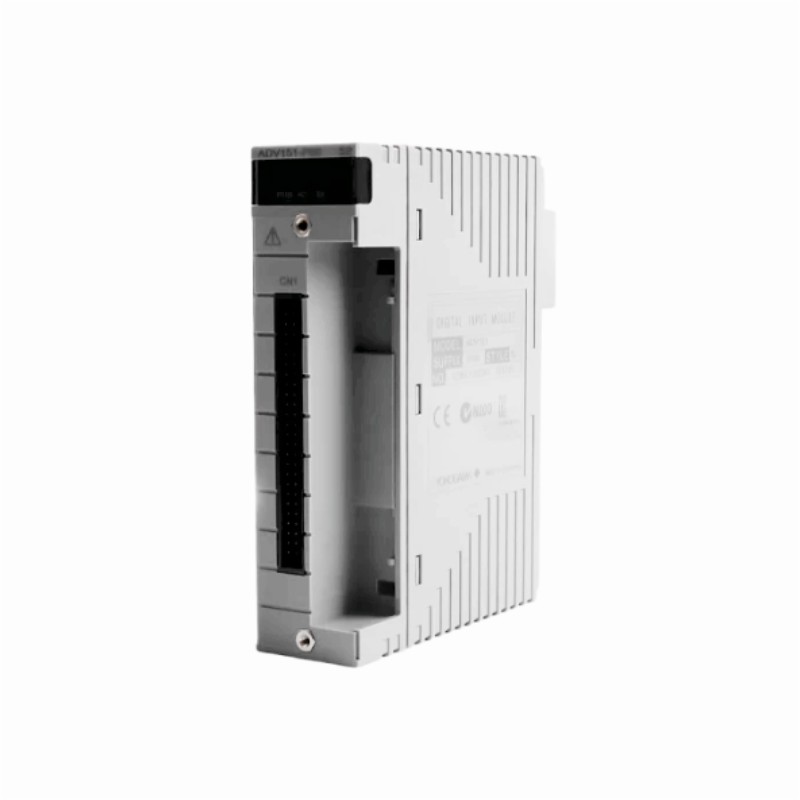

The Yokogawa ADV151-P10 is a communication interface module used in CENTUM CS and other Yokogawa control systems. It provides reliable data exchange between controllers and subsystems, ensuring fast and stable communication in industrial automation.
General Information
Brand: Yokogawa
Country of Origin: Japan
Model: ADV151-P10
Type: Communication Interface Module
Application: Enables data communication between system nodes and control units in process automation
Mounting: Rack or base-mounted module for Yokogawa DCS systems
Power Specifications
Power Supply: 24 V DC nominal
Power Consumption: Approximately 5 W
Input Source: System backplane or dedicated power bus
Protection: Overvoltage and reverse-polarity protection
Communication & Interface
Interface Type: High-speed serial or system communication bus
Connection: Backplane connector for controller link
Data Transfer Rate: Up to 1 Mbps depending on system configuration
Diagnostics: Status monitoring via internal logic and LED indication
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Standard control cabinet or DCS enclosure
Dimensions & Weight
Dimensions: 107.5 × 130 × 32.8 mm
Weight: 0.3 kg
