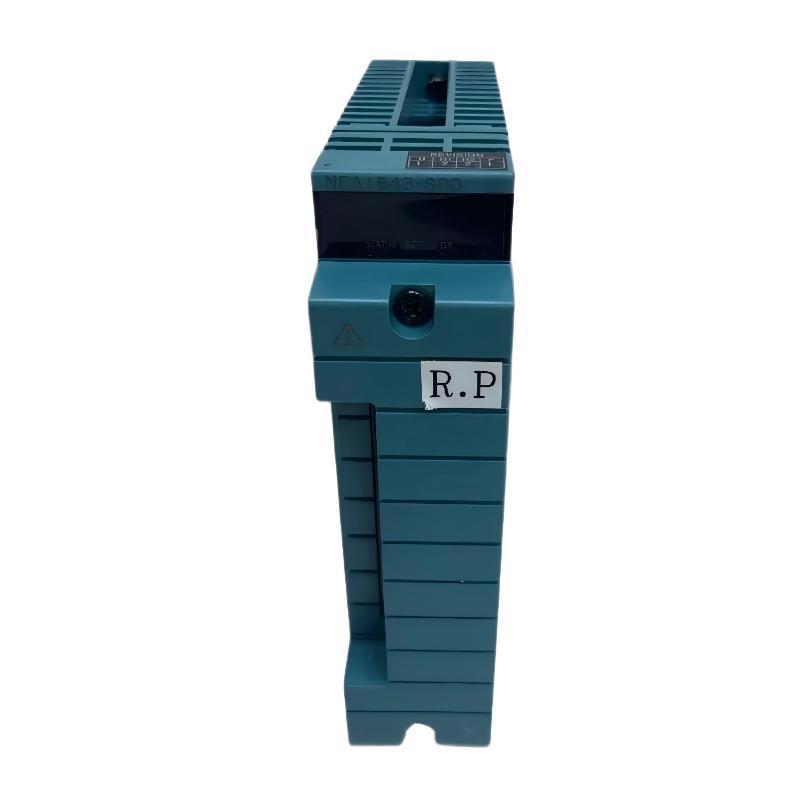

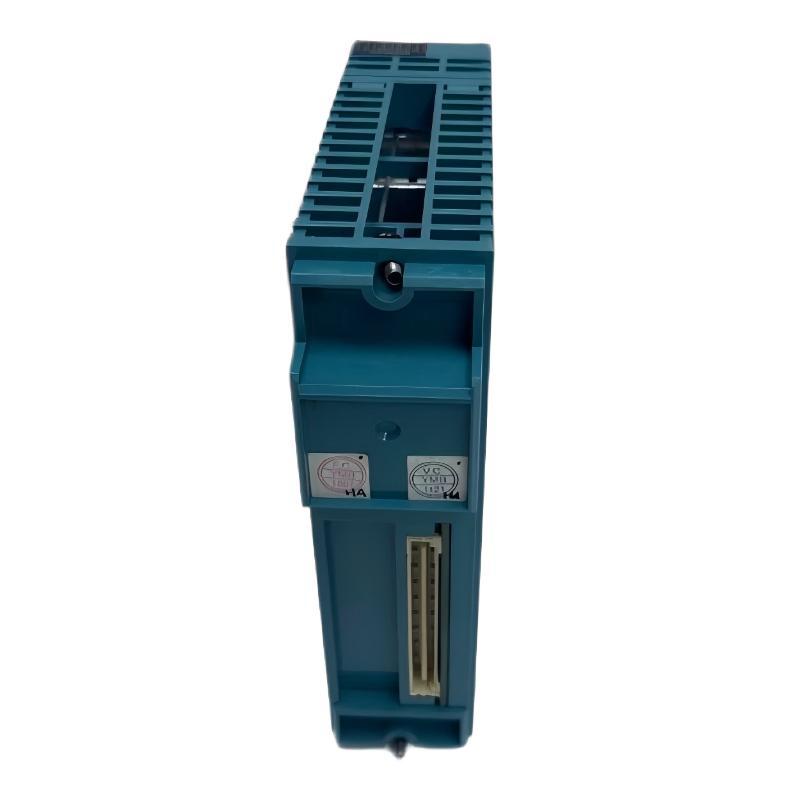

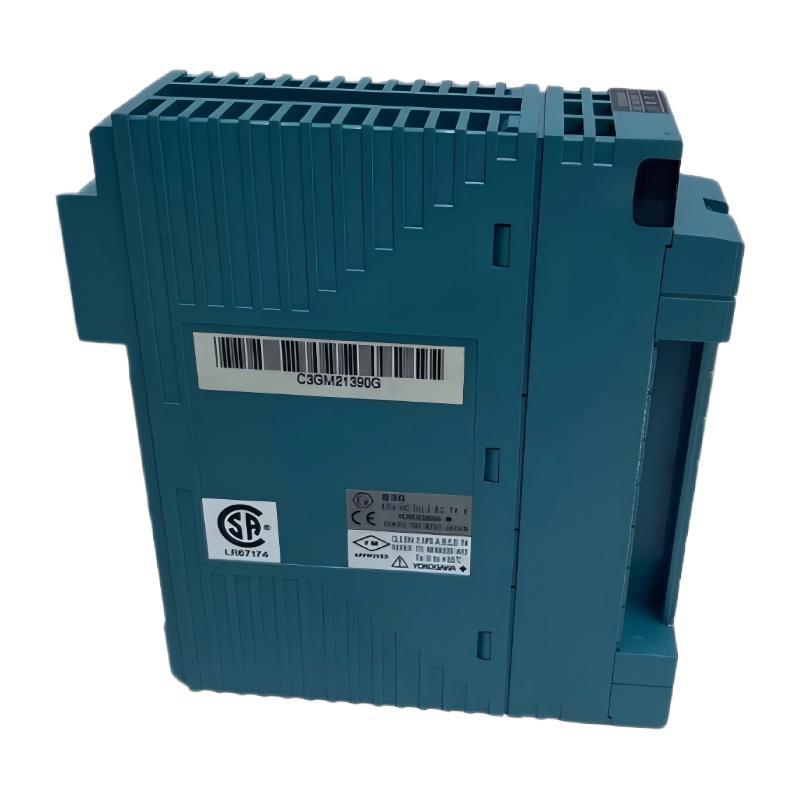

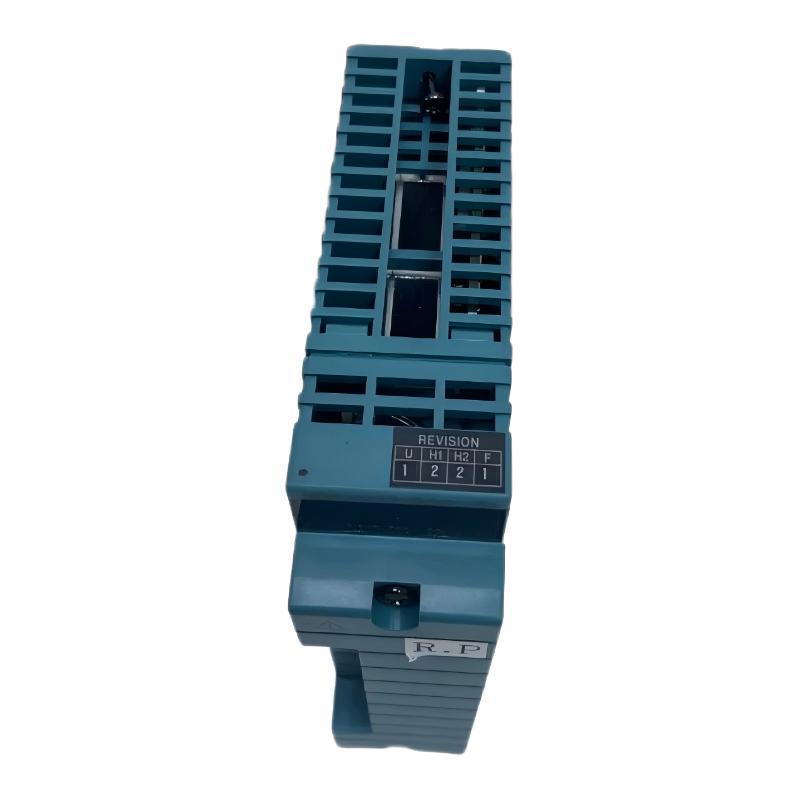

Yokogawa NFAI543-S00/A4500 Analog Output Module

Overview

The Yokogawa NFAI543-S00/A4500 Analog Output Module is an industrial signal output module designed for accurate analog control and reliable process regulation in automation systems. It converts digital control data from the system into analog output signals for field devices and process equipment.

This module is suitable for distributed control systems, process industries, and industrial applications requiring stable analog signal transmission and precise output control.

General Information

Part Number: NFAI543-S00/A4500

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: NFAI543

Type: Analog Output Module

Signal Type: Analog Current Output

Application: Process control and industrial automation systems

Mounting: Control system rack installation

Function: Converts controller output data into analog signals for field device control

Output Channels: Multi-channel analog output configuration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Output Signal Range: Supports standard industrial analog output signals

Signal Processing: High-resolution digital-to-analog conversion

Protection Functions: Output monitoring, fault detection, and signal protection

Isolation: Electrical isolation between system circuits and field signals

Communication & Interface

Output Interface: Analog output channels

Signal Type: Industrial current output signals

Communication Interface: System backplane communication

Data Transfer: Digital data received from controller system

Diagnostics: Channel status monitoring, output error detection, and module diagnostics

Configuration: Software-based parameter setup and system configuration

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: IP20

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (H × W × D): 130 × 107.5 × 32.8 mm

Weight: 0.4 kg
