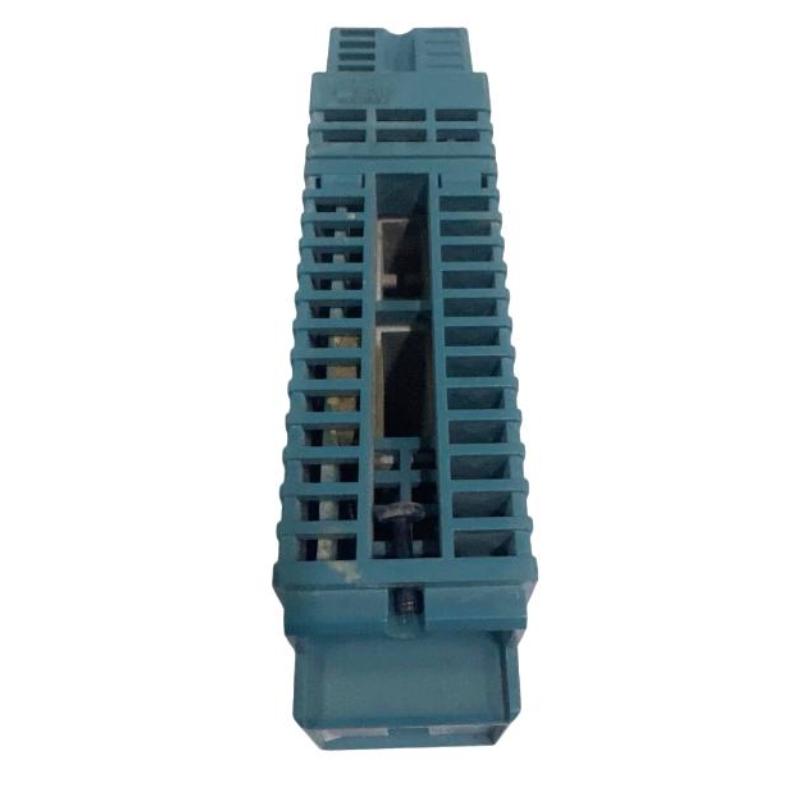

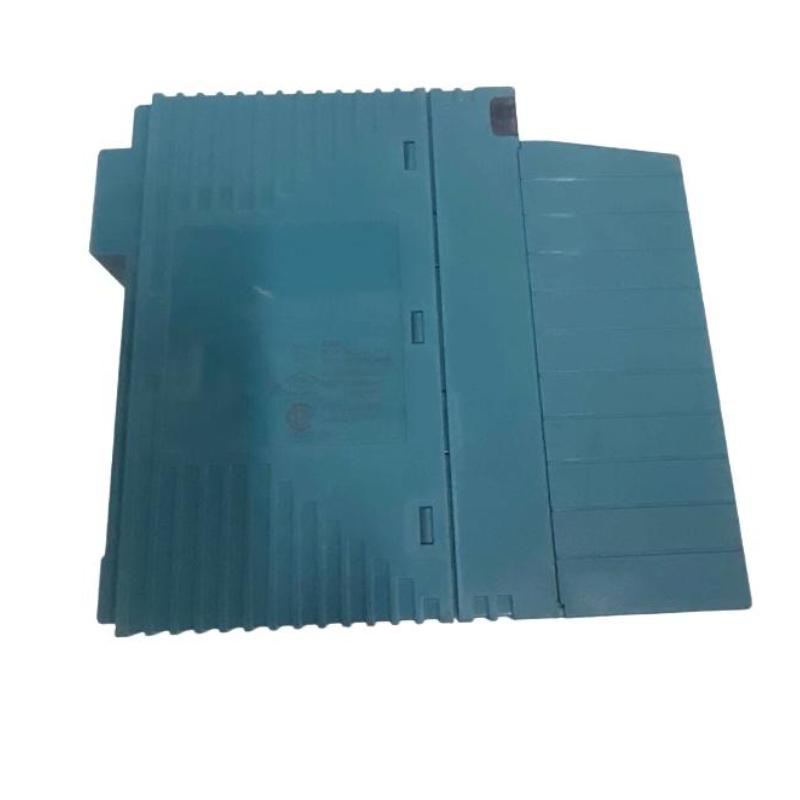

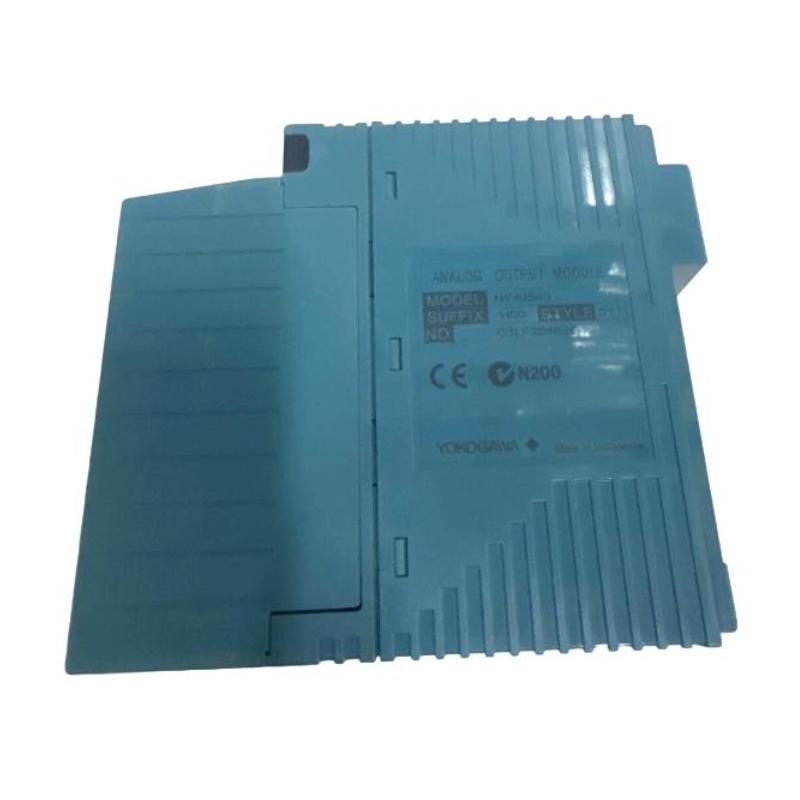

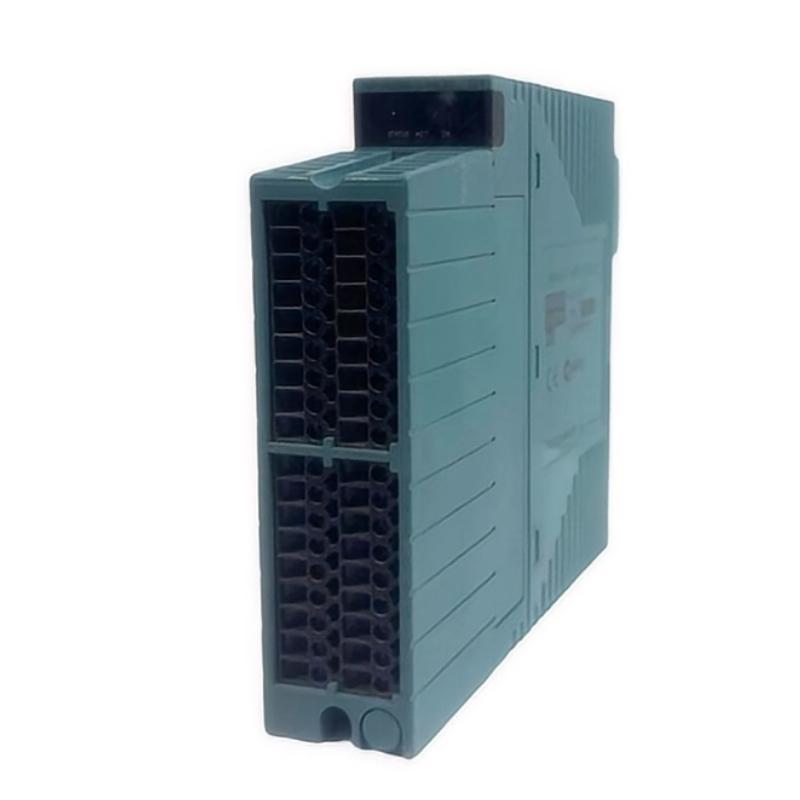

Yokogawa NFAI543-H50/A4S00 Analog Output Module

Overview

The Yokogawa NFAI543-H50/A4S00 Analog Output Module is an industrial analog output module designed for precise process control and reliable signal transmission in automation systems. It converts controller data into accurate analog signals to control field devices and maintain stable industrial processes.

This module is suitable for distributed control systems, process automation, and applications requiring dependable analog output performance and continuous operation.

General Information

Part Number: NFAI543-H50/A4S00

Manufacturer: Yokogawa

Brand: Yokogawa

Country of Origin: Japan

Series: NFAI543

Type: Analog Output Module

Signal Type: Analog Current Output

Application: Process control and industrial automation systems

Mounting: Control system rack installation

Function: Converts digital controller commands into analog output signals for field equipment control

Output Channels: Multi-channel analog output configuration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption design

Output Signal Range: Supports standard industrial analog output signals

Signal Processing: High-resolution digital-to-analog conversion

Protection Functions: Output monitoring, fault detection, and signal protection

Isolation: Electrical isolation between system circuits and field signals

Communication & Interface

Output Interface: Analog output channels

Signal Type: Industrial current output signals

Communication Interface: System backplane communication

Data Transfer: Digital data transmission from controller system

Diagnostics: Channel status monitoring, output error detection, and module diagnostics

Configuration: Software-based parameter setup and system configuration

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: −20 to +70 °C

Humidity: 10 to 90% RH, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: IP20

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (H × W × D): 130 × 107.5 × 32.8 mm

Weight: 0.4 kg

Optimized Control Performance for Industrial Systems!
