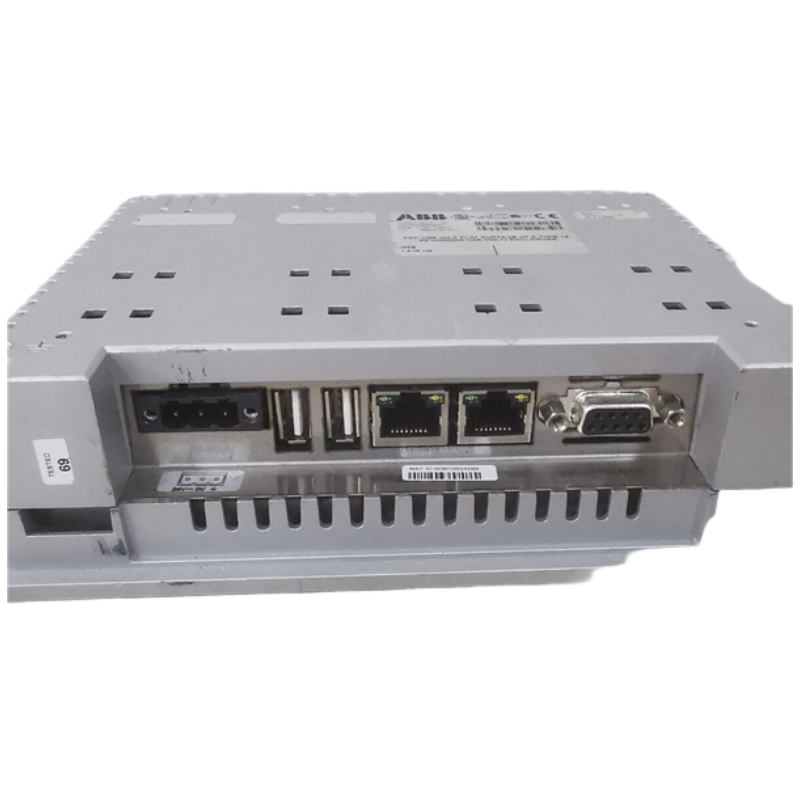

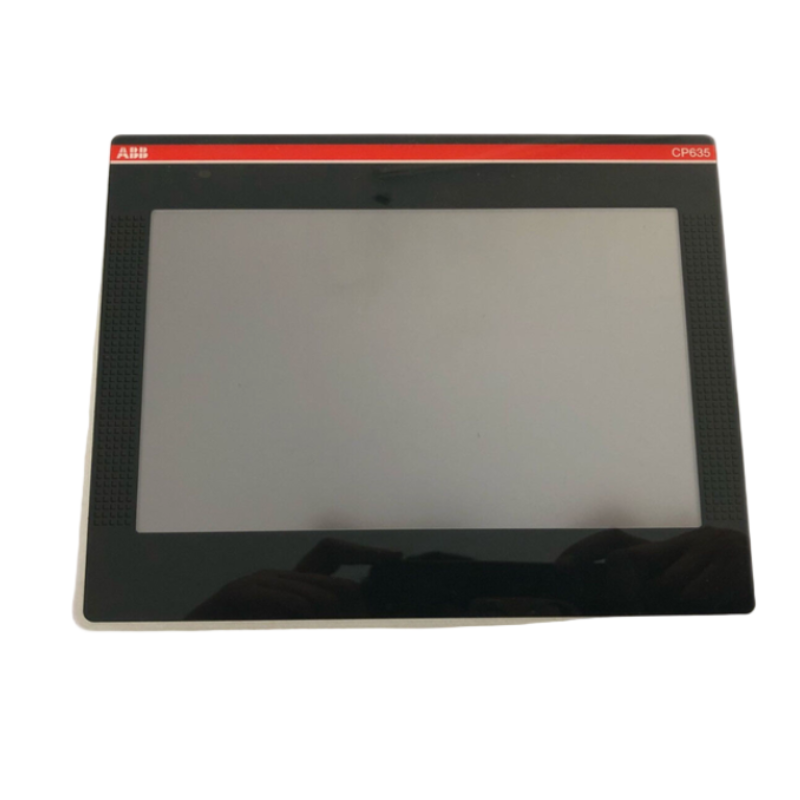

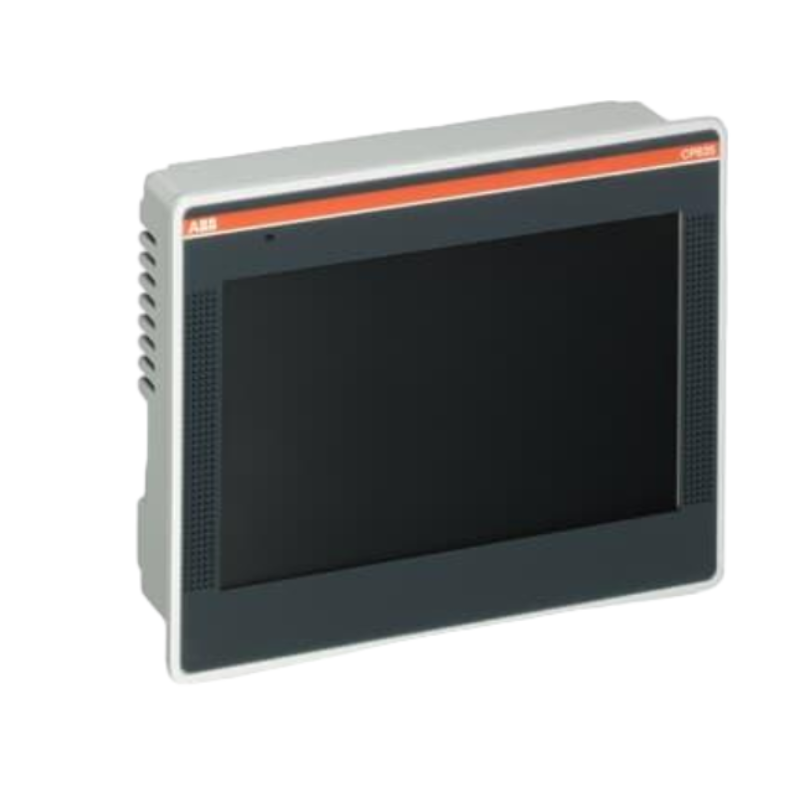

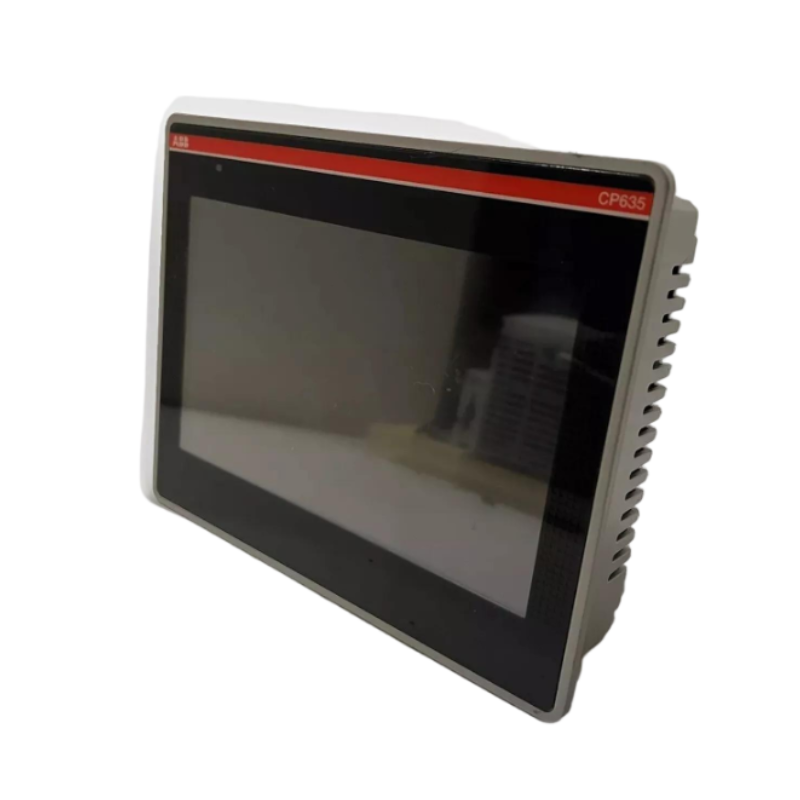

ABB CP635 1SAP535100R0001 | Control Panel 30-Day Returns

Overview

The ABB CP635 1SAP535100R0001 is a high-performance control panel designed for integration into ABB’s industrial automation systems. It serves as a central interface for operators to control and monitor automation processes. The CP635 provides real-time system monitoring, process control, and diagnostics, allowing operators to efficiently manage complex systems. It is designed to handle demanding industrial applications where reliability and real-time data access are critical.

General Information

Part Number: 1SAP535100R0001

Manufacturer: ABB

Series: CP (Control Panel)

Type: Control Panel

Mounting: Wall-mounted or rack-mounted installation

Technology: Process control, system monitoring, real-time diagnostics

Brand / Country of Origin: ABB / Sweden

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 50 W

Input: Powered from the system backplane

Protection: Surge protection, reverse-polarity protection

Indicators: LED indicators for power, communication status, and system health

Communication & Interface

Communication Ports: Supports multiple industrial communication protocols for integration with field devices and control systems

Diagnostic Features: Real-time diagnostics, system health monitoring, fault detection

Operator Interface: Touchscreen or physical interface for user-friendly operation and system configuration

Protocol Support: Multi-protocol support for integration with various industrial control systems, including Modbus, PROFIBUS, and Ethernet/IP

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (for installation in control cabinets)

Dimensions & Weight

Dimensions (L × W × H): 280 × 120 × 210 mm

Weight: ~ 1.2 kg
