Overview

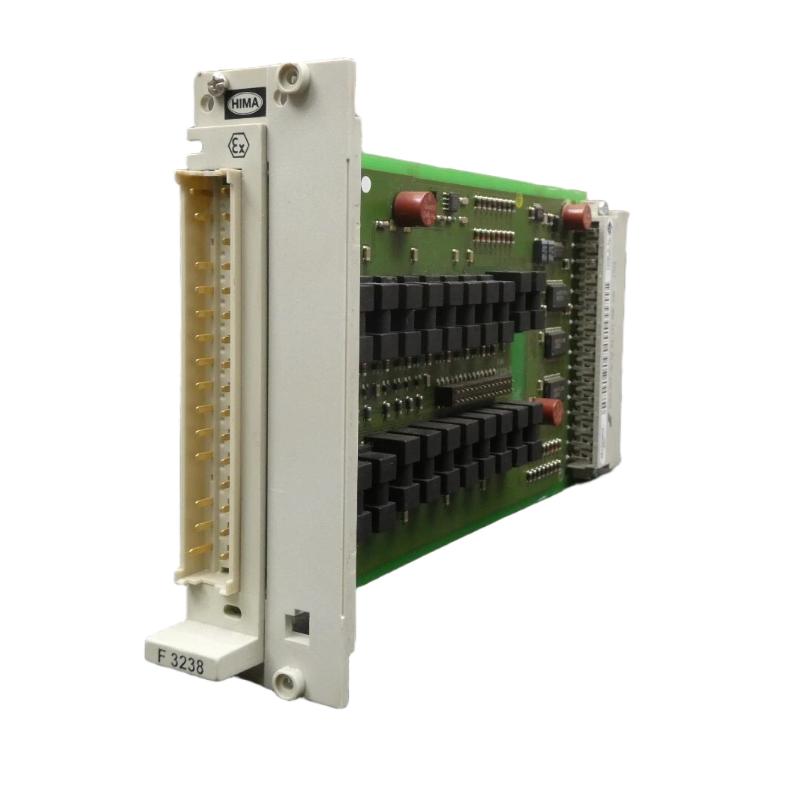

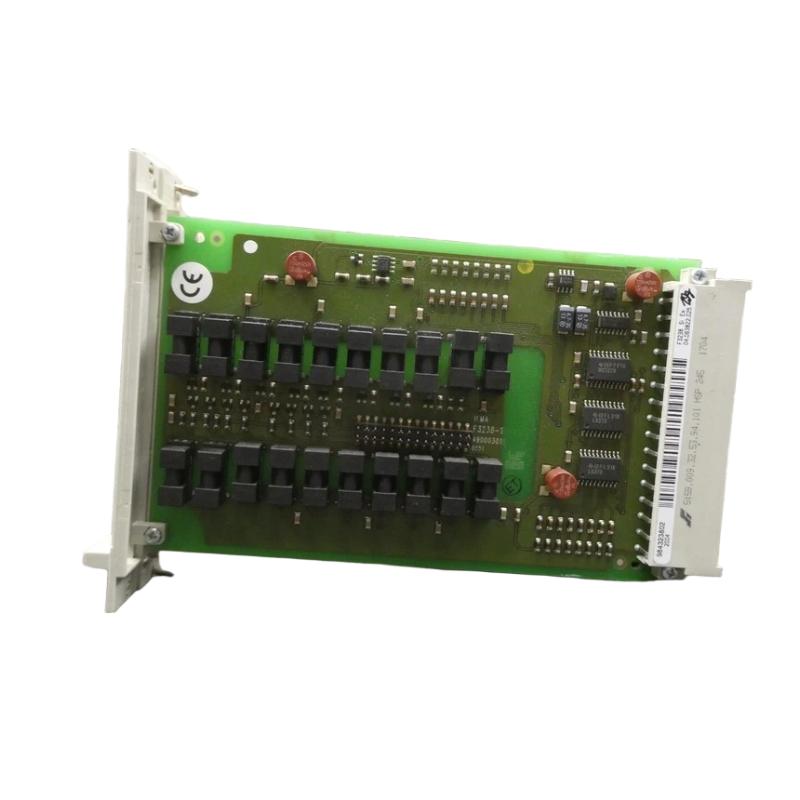

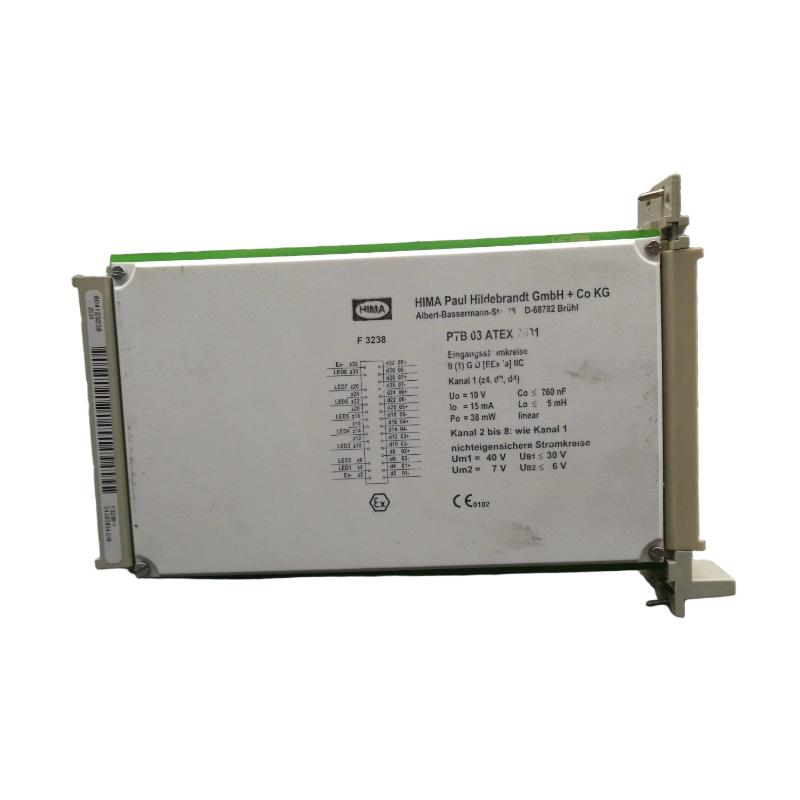

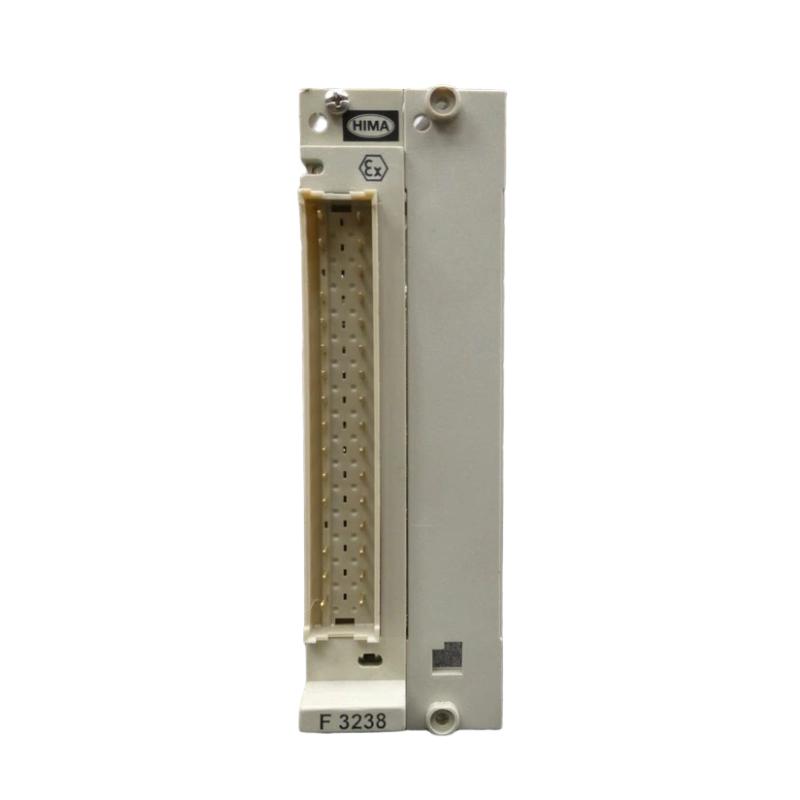

The HIMA F3238 is a discrete output module designed for HIMA HIMax and HIQuad safety instrumented systems. It provides reliable and isolated digital outputs to control actuators, relays, and other field devices in safety-critical industrial applications.
General Information
Part Number: F3238
Manufacturer: HIMA
Brand / Country of Origin: HIMA / Germany
Series: HIMax / HIQuad
Type: Discrete Output Module
Mounting: Installed on HIMA rack or baseplate system
Technology: Safety-certified digital output module with channel isolation and self-diagnostics
Power Specifications
Supply Voltage: 24 V DC (via system backplane)
Power Consumption: ≤ 8 W
Power Source: Redundant backplane supported
Protection: Short-circuit protection, surge suppression, channel isolation
Indicators: LEDs for output status and module health
Communication & Interface
Output Type: Discrete digital output
Channel Isolation: Independent isolation for each output channel
Output Function: Drives field devices such as relays, solenoids, or indicators
Diagnostics: Output monitoring, fault detection, and self-test capability
Configuration: Managed through HIMA engineering tools
Reset Options: Supports software reset via system controller
Environmental
Operating Temperature: −20 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for installation in industrial control cabinets
Dimensions & Weight
Dimensions (L × W × H): Approx. 160 × 20 × 125 mm
Weight: ~0.25 kg
