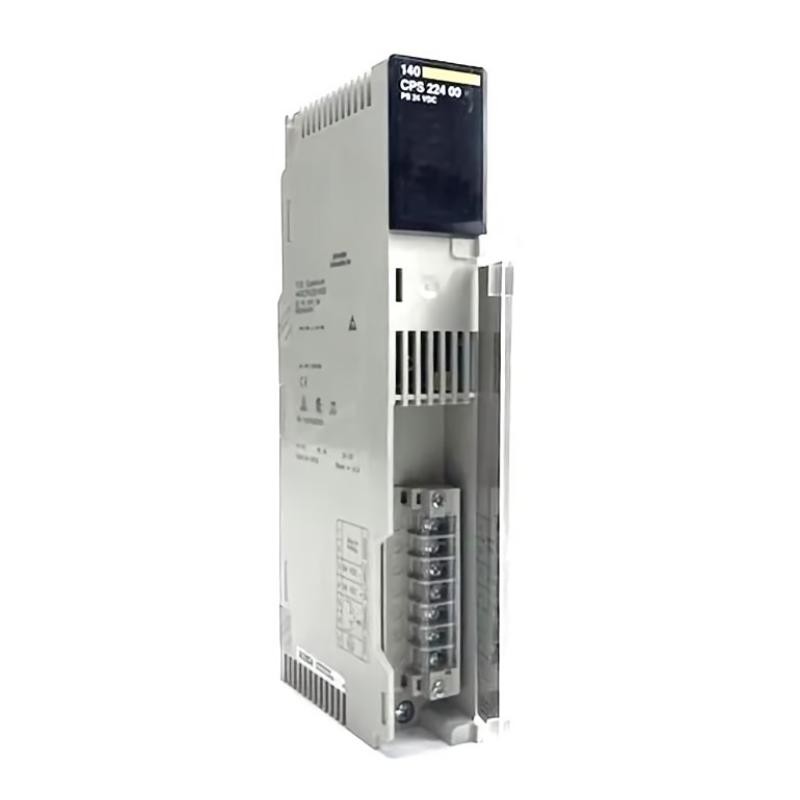

Schneider 140CPS22400 Power Supply Module Fault Diagnosis
Intermittent PLC shutdowns involving a Schneider 140CPS22400 power supply module should be investigated by checking the incoming supply, terminal integrity, rack connections, and system load before replacing the module. A power interruption may originate upstream of the PLC, and replacing a functioning power supply will not correct a loose connection or unstable branch circuit.
This Troubleshooting Guide addresses intermittent power loss, with an emphasis on evidence-based Fault Diagnosis and safe recovery of a Modicon Quantum PLC system.
Recognizing Schneider 140CPS22400 Intermittent Power Faults
An intermittent power problem can produce several different symptoms:
The PLC restarts unexpectedly during machine operation.
Power supply indicators change state or extinguish briefly.
The processor records a restart or loses its normal operating state.
The fault appears when other cabinet equipment starts.
The PLC operates normally after a manual restart but fails again later.
These observations are clues, not proof of a failed power supply. A processor restart can also result from an upstream voltage disturbance, a poor connection, excessive loading, or a separate control-system fault.
Schneider 140CPS22400 Troubleshooting: Follow the Evidence
The first diagnostic question is whether the interruption occurs at the input or inside the PLC rack.
Review the event history and determine whether the shutdown coincides with a motor starting, contactor switching, or another known electrical event. If the problem occurs at the same time as a large load starts, investigate the shared supply circuit and upstream protection before removing the module.
Next, inspect the input supply using appropriately rated test equipment. Measurements should be made by qualified personnel under the site's electrical safety procedures. Where intermittent behavior is suspected, a suitable recording meter may reveal a brief voltage dip that an ordinary spot measurement misses.
For example, an illustrative investigation might show a steady 120 V AC during normal operation but a short drop to 92 V AC when a nearby load starts. Whether that excursion is outside the acceptable range must be established from the actual supply specification and recorded event duration. The figures are hypothetical and are not Schneider-published limits for the 140CPS22400.
Schneider 140CPS22400 Power Fault: A Representative Field Case
In a representative industrial maintenance scenario, a Modicon Quantum PLC restarted several times per shift, although the power supply indicator appeared normal during routine inspections.
The technician initially suspected an internal power supply fault. However, a review of the machine event log showed that the restarts followed the operation of a nearby high-current load. Monitoring the incoming supply revealed a brief disturbance, and inspection identified a deteriorated connection in the upstream distribution circuit.
After the connection was repaired and the supply was retested, the PLC completed repeated startup and operating checks without the same interruption.
This is an illustrative case, not a verified customer report involving a specific 140CPS22400 unit. Its diagnostic value is the sequence of reasoning: correlate the event, measure the supply during the event, locate the disturbance, and confirm the correction before condemning the module.

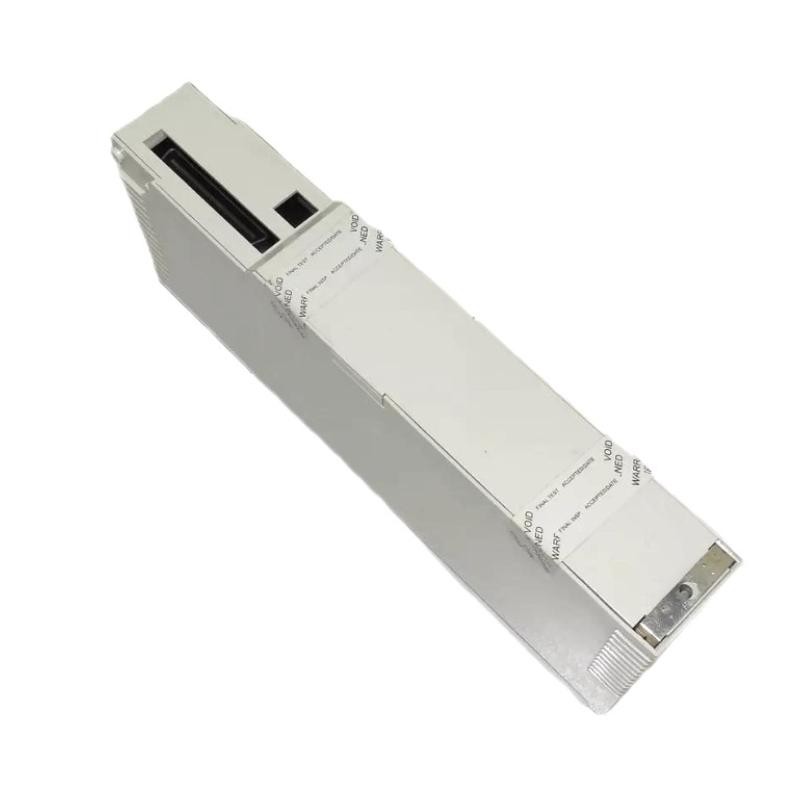

Schneider 140CPS22400 Module Inspection and Recovery
If the input supply remains within its documented operating limits during the fault, continue with the rack and module inspection.
With the system safely isolated, inspect the power supply seating, connector condition, terminals, and signs of overheating or mechanical damage. Check the installed rack configuration and the total demand imposed by the connected modules against the manufacturer's requirements.
If the fault persists after external supply and connection problems have been ruled out, follow Schneider Electric's diagnostic and replacement procedures. Use a known-compatible replacement only after confirming the exact part number and system requirements.
Never remove or reseat the module while energized unless the manufacturer's documentation explicitly permits the operation and the installation's safety procedures authorize it.
Schneider 140CPS22400 PLC Validation After Repair
A repair is not complete merely because the PLC starts again. Confirm that the original failure condition has been addressed and that the system operates reliably under representative conditions.
Review the processor diagnostics, observe the power supply indicators, and repeat the operating sequence that previously triggered the shutdown. Where practical, monitor the incoming supply during that sequence and compare the results with the manufacturer's permitted limits.
Document the original symptom, measured conditions, identified cause, corrective action, and final test result. This record makes future Fault Diagnosis faster and helps distinguish a recurring power disturbance from an internal module failure.
Long-Tail Keywords for Schneider 140CPS22400 Fault Diagnosis
Useful search phrases include Schneider 140CPS22400 troubleshooting guide, Schneider 140CPS22400 intermittent PLC shutdown, Modicon Quantum power supply fault diagnosis, 140CPS22400 PLC restart problem, Schneider power supply module repair, and Modicon Quantum rack power troubleshooting.
The most reliable troubleshooting approach is to establish where the interruption originates, validate the electrical conditions, and replace hardware only when the diagnostic evidence supports that decision.
