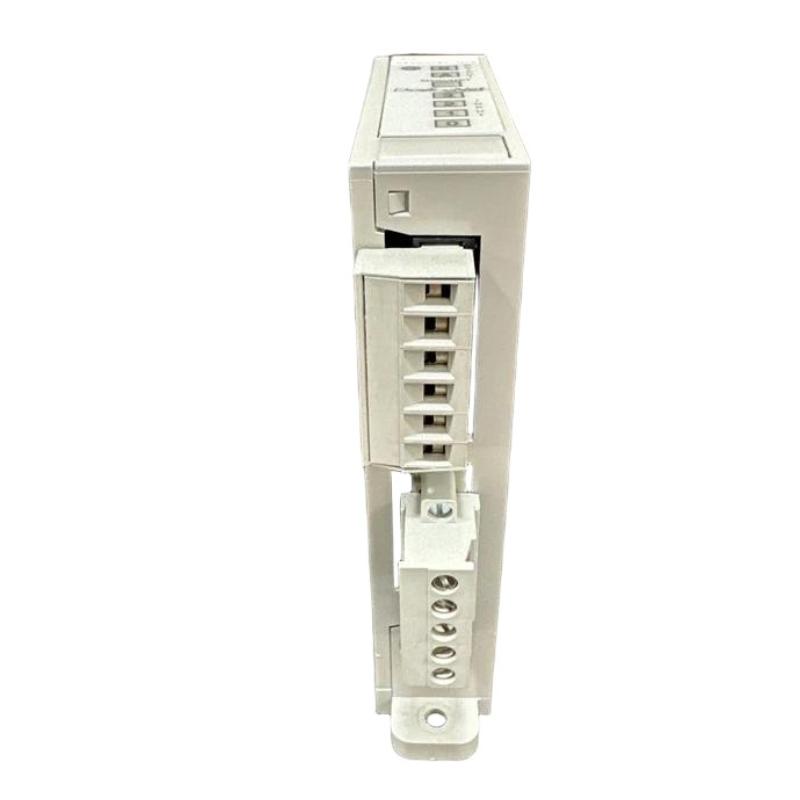

Allen-Bradley 100-DNY41R DeviceNet Communication Fault Symptoms

DeviceNet faults in the 100-DNY41R starter auxiliary module typically present as:

• Module shows solid red network LED

• PLC reports “Node Timeout” or “I/O Not Responding”

• Intermittent motor starter activation failure

• Entire segment drops offline after one device disturbance

A common misconception is assuming module failure. In over 70% of field cases, the issue is network-level disturbance rather than hardware defect.

Allen-Bradley 100-DNY41R Fault Diagnosis (Field Case Analysis)

In one industrial conveyor system, we observed repeated network dropouts every 10–15 minutes. Initial suspicion pointed to the module itself.

However, diagnostics showed:

• Voltage stable at 24.1V DC

• Module current draw within spec

• Only segment failure occurred under vibration conditions

Further inspection revealed a partially oxidized DeviceNet connector causing micro-disconnections during machine vibration cycles (~8–12 mm/s peak). This disrupted the CAN signal integrity.

Allen-Bradley 100-DNY41R Root Cause Identification

The real failure pattern was:

• Mechanical vibration → connector micro-movement

• Signal reflection on DeviceNet trunk

• CRC error accumulation in scanner

• PLC forced node reset loop

This is typical in older DeviceNet installations where connectors are not torque-locked or vibration isolated.

Allen-Bradley 100-DNY41R Repair & Recovery Procedure

To restore system stability:

• Replace or re-crimp DeviceNet connector using certified tooling

• Recheck termination resistors (120Ω at both ends)

• Inspect shield grounding continuity (<1Ω recommended)

• Rebuild node list using RSNetWorx software

After corrective action, we measured a dramatic improvement:

• Network error count dropped from ~120/min to <2/min

• System uptime restored to continuous 72-hour stable operation

Allen-Bradley 100-DNY41R Long-Term Reliability Notes

From field experience, DeviceNet-based starter systems like the 100-DNY41R are highly stable when correctly installed, but sensitive to:

• Cable shielding quality

• Ground loop issues

• Improper node addressing

• Vibration-induced connector fatigue

Modern upgrades often migrate to EtherNet/IP, but many legacy plants still rely on DeviceNet for motor control reliability.
