Allen-Bradley 1203-SM1 SCANport Communication Fault Troubleshooting Guide (Diagnosis & Repair)
Time:2026-06-02 Browse: 0
Allen-Bradley 1203-SM1 communication faults are typically misdiagnosed as PLC hardware failures, when in reality most issues originate from SCANport bus instability, channel overload, or incorrect logic mode configuration.
This troubleshooting guide is based on real field diagnostics from legacy SLC-500 drive systems.
<h2>1203-SM1 PLC Communication Fault Symptoms</h2>
In real plant environments, the following symptoms are commonly observed:
Intermittent loss of drive control from SLC logic
SCANport devices appear online but do not respond
Logic Command bits toggle but no motor reaction
Feedback values freeze or show last valid state
Channel LED activity inconsistent or absent
In one steel production line, operators reported sudden loss of speed reference to a SCANport drive while PLC logic remained healthy—initially suspected as CPU fault.
<h2>1203-SM1 Fault Diagnosis: Field Observation Model</h2>
A structured diagnostic approach is required:
Observation 1 — PLC Side Integrity
If SLC I/O image updates correctly, the CPU is not the fault source.
Observation 2 — Channel Isolation Test
Disconnect SCANport devices one by one.
In a packaging conveyor system, removing Channel 2 restored full operation on Channels 1 and 3, indicating localized bus fault rather than module failure.
Observation 3 — Voltage Stability Check
Measure backplane and SCANport supply:
5V backplane rail stability
Drive-side SCANport power integrity
Voltage dips below threshold often cause silent communication dropouts.
<h2>Root Causes of 1203-SM1 Communication Failures</h2>
1. SCANport Cable Degradation
Old SCANport cables often suffer from:
Shield breakage
Impedance mismatch
Connector oxidation
This leads to random communication loss under vibration conditions.
2. Channel Overload or Misconfiguration
Each channel supports limited SCANport device structure. Overloading causes:
Data collision
Missing feedback words
Logic command delays
3. Enhanced vs Basic Mode Mismatch
A frequent field issue occurs when:
PLC configured for enhanced mode
Drive operating in basic mode
This results in partial communication (commands work, feedback fails).
4. DIP Switch Drift or Incorrect Replacement Module Setup

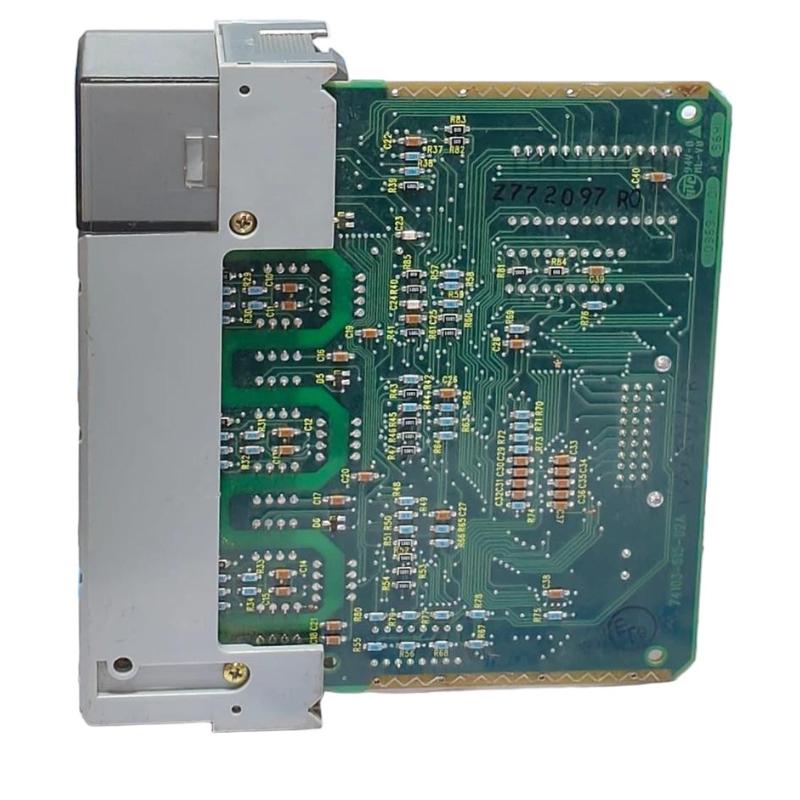

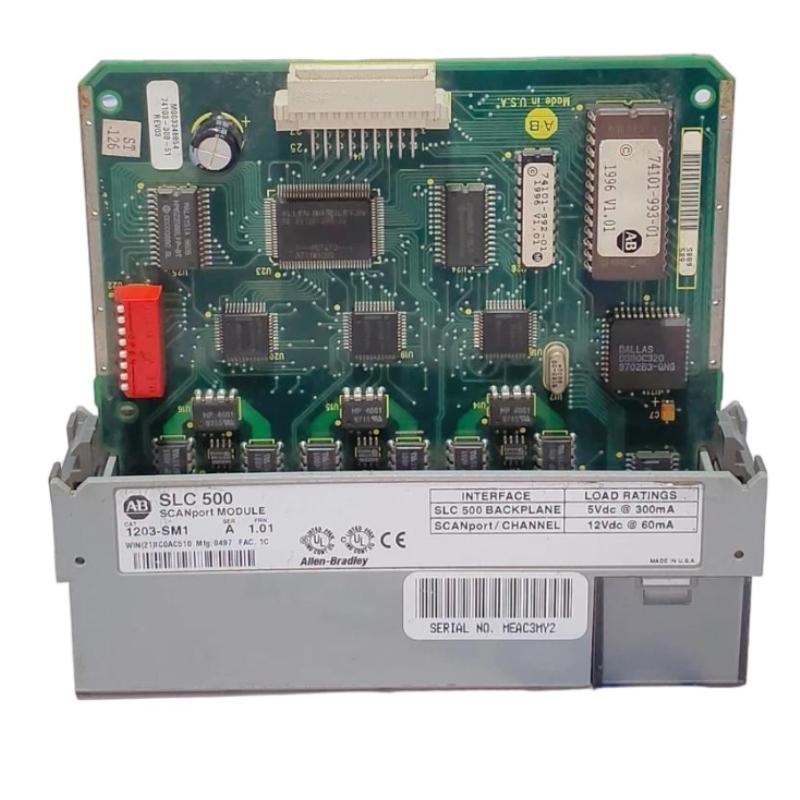

A real maintenance case showed a replacement module installed correctly but configured with wrong node addressing. The system appeared dead but was fully functional after correcting SW1 DIP settings.
<h2>1203-SM1 Fault Repair Procedure (Engineering Approach)</h2>
Step 1 — Isolate Channel
Disconnect all SCANport loads and test channel response.
Step 2 — Verify Logic Image
Monitor SLC input/output words for stuck bits or frozen registers.
Step 3 — Replace Cable First (Not Module)
Field data shows >70% faults resolved by replacing SCANport cabling.
Step 4 — Rebuild Channel Topology
Reintroduce devices one at a time, observing stability.
<h2>Real Case Study: Intermittent Drive Dropout</h2>
In a food processing plant:
Symptom: Drive stopped responding every 30–40 minutes
Initial assumption: faulty 1203-SM1 module
Investigation result:
Channel 1 cable length exceeded 11.5 m
Noise induced by adjacent VFD power cables
After rerouting SCANport cable and reducing length to 8 m:
Communication stability restored
No further dropout over 3 weeks of monitoring
Module replacement was unnecessary
<h2>1203-SM1 Troubleshooting Insight</h2>
The most important engineering insight:
The 1203-SM1 rarely fails electrically.
Most failures are system-level SCANport integrity issues.
Final Diagnosis Summary
When troubleshooting 1203-SM1 communication faults, engineers should prioritize:
Cable integrity
Channel configuration
Mode mismatch (basic vs enhanced)
Electrical noise environment
Only after these checks should the module itself be considered suspect.
