ABB ZX2 GIS Deployed in China’s Ultra-High-Altitude Solar Power Project
Time:2026-06-03 Browse: 0
ABB has announced the application of its ZX2 gas-insulated switchgear (GIS) in the Yalong River Chabulang photovoltaic power project in China, one of the country’s largest high-altitude solar installations. The project is developed by State Power Investment Corporation (SPIC) and forms part of China’s integrated hydro–wind–solar energy base.

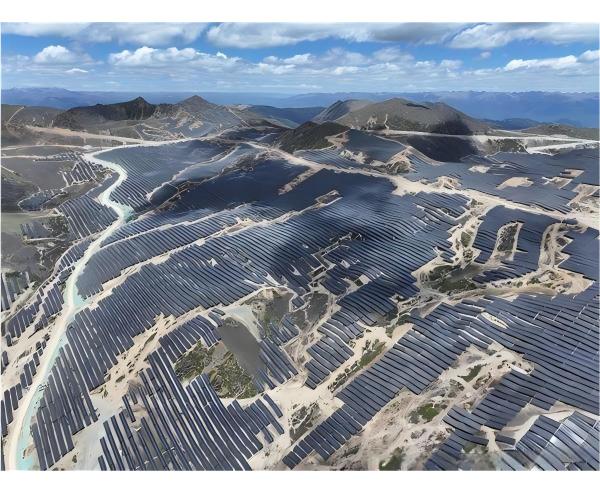

The photovoltaic plant is located at an average altitude of approximately 4,400 meters and has an installed capacity of 1,000 MW (1 GW). It is designed to support large-scale renewable energy generation under some of the most challenging environmental conditions in the country.
Engineering Challenges at High Altitude
According to project information, the site presents multiple technical challenges for electrical equipment, including:
Reduced air pressure (approximately 60% of standard atmospheric pressure)
Increased insulation stress due to thin air
Large day–night temperature variations
High ultraviolet radiation exposure
Difficult logistics for transportation and installation
These conditions place significant demands on switchgear insulation performance, thermal management, and long-term operational reliability.
ZX2 GIS Technical Adaptation for Harsh Environments
ABB’s ZX2 gas-insulated switchgear is designed with a fully sealed and compact structure, which helps mitigate environmental impacts commonly seen in high-altitude installations.
Key technical characteristics highlighted in the deployment include:
Fully sealed gas-insulated design
The ZX2 system encloses all live components in stainless steel compartments, improving resistance to dust, humidity, and external contamination while maintaining stable insulation performance in low-pressure environments.
Optimized for high-altitude operation
The switchgear has undergone type testing in certified third-party laboratories for high-altitude conditions, verifying its suitability for operation under reduced atmospheric pressure and extreme temperature variation.
Modular and compact configuration
The design supports prefabricated substation concepts, including skid-mounted or containerized solutions, enabling faster installation in remote renewable energy sites with limited construction windows.
Low maintenance and remote operation capability
Integrated electrical operating mechanisms allow remote control of disconnector and earthing functions, supporting centralized operation and reducing the need for on-site personnel in difficult terrain.
Role in the Chabulang PV Power Plant
In the Chabulang photovoltaic project, ZX2 GIS systems are deployed in multiple booster stations. These systems are responsible for:
Collecting and distributing solar power output
Providing system protection and switching functions
Supporting grid connection for large-scale photovoltaic arrays
The project is reported to integrate energy from approximately two million solar panels.
Once fully operational, the power plant is expected to generate around 19.4 billion kWh annually, contributing to:
Approximately 600,000 tons of standard coal savings per year
Around 1.55 million tons of CO₂ emission reductions annually
Supporting China’s Renewable Energy Expansion
The project is part of China’s broader strategy to develop large-scale renewable energy bases combining hydro, wind, and solar generation. High-altitude regions are increasingly being utilized due to their strong solar resources and available land.
ABB’s solution demonstrates the application of gas-insulated switchgear technology in extreme environments where conventional air-insulated systems face performance limitations.
Industry Significance
The deployment of ZX2 GIS in the Chabulang project highlights several broader industry trends:
Growing demand for high-reliability switchgear in renewable energy integration
Increasing adoption of prefabricated and modular substation designs
Expansion of high-altitude and remote-area solar power infrastructure
Stronger focus on remote operation and reduced lifecycle maintenance
Such applications are becoming increasingly relevant as utility-scale renewable energy projects move into more geographically challenging regions.
Conclusion
The successful deployment of ABB ZX2 gas-insulated switchgear in the 1 GW Chabulang photovoltaic project demonstrates its suitability for high-altitude renewable energy applications. By addressing environmental stress factors such as low air pressure, temperature extremes, and UV exposure, the system supports stable and efficient grid integration of large-scale solar power generation.
