Allen Bradley 1336-BDB-SP76D Gate Driver Fault Troubleshooting Guide
Time:2026-06-04 Browse: 0

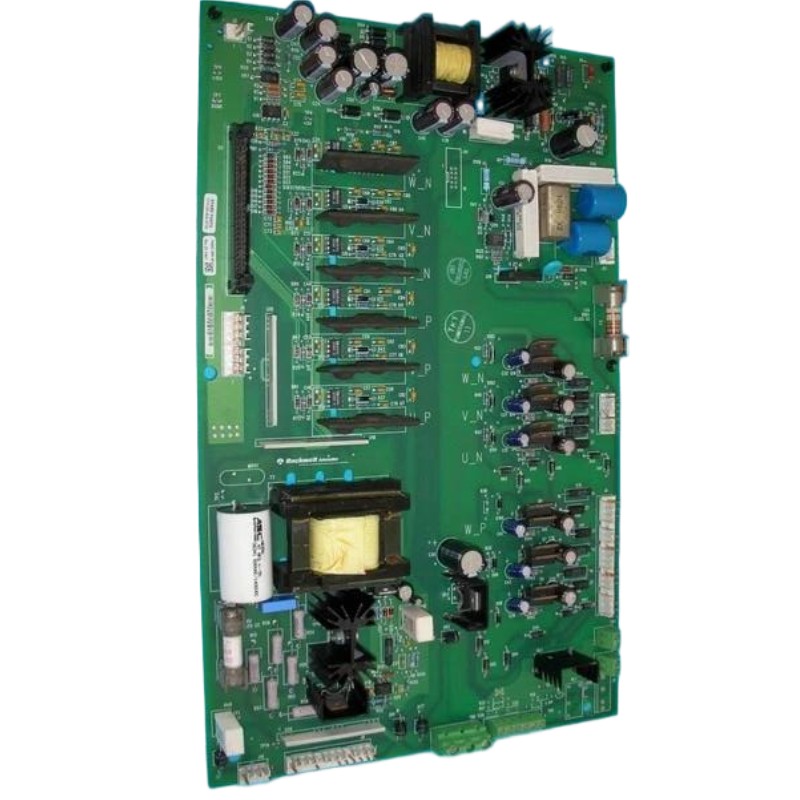

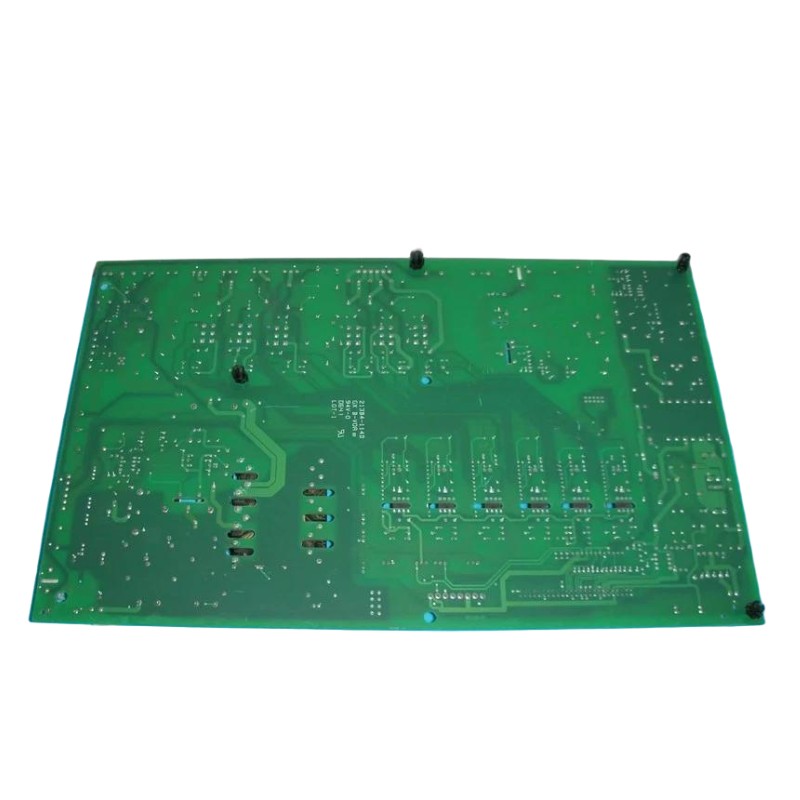

Allen Bradley 1336-BDB-SP76D Gate Driver Fault Symptoms
Common faults in 1336-BDB-SP76D include tripping during startup, intermittent gate drive signal loss, and fault LED illumination. In a pulp and paper mill, the driver tripped every 10–15 minutes despite correct wiring. Voltage measurement revealed gate pulses intermittently dropping below 10 V.
Root Causes of 1336-BDB-SP76D Faults
Power Supply Instability: Undervoltage on the control bus can trigger driver faults.
Gate Drive Wiring Errors: Incorrect emitter or gate connections reduce switching performance.
Signal Interference: High-current busbars too close to low-voltage control wires can induce voltage spikes.
Component Aging: Electrolytic capacitors inside the driver can lose capacitance over time, causing delayed pulses.
Real Case: At a steel plant, aging capacitors reduced gate pulse from 15 V to 9 V under load, causing repeated faults.
Diagnostic Procedure
Step 1: Measure DC bus and gate voltage at startup. Compare to nominal 15 V gate drive.
Step 2: Use oscilloscope to capture PWM pulse width and timing; irregular pulses indicate wiring or PCB faults.
Step 3: Isolate driver from IGBT module; if fault persists, focus on driver PCB or power supply.
Step 4: Check grounding and EMI shielding to ensure signal integrity.
Field Tip: Intermittent faults are often more electrical noise than component failure; rerouting and adding ferrite cores solved 80% of cases.
Repair and Recovery Strategy
Replace aging capacitors if gate voltage drop is observed under load.
Re-torque and inspect all signal and power terminals.
Apply anti-parallel diodes if spike-induced tripping is detected.
Re-commission driver after repair, verifying gate voltage reaches 15 V consistently.
Observation: After corrective actions, driver ran continuously for 6 months at 95% load with no further trips, confirming successful troubleshooting.
Preventive Measures
Schedule regular inspection of gate voltage and pulse timing.
Keep control wiring physically separated from high-current paths.
Log fault codes and gate signals to detect early signs of component degradation.
