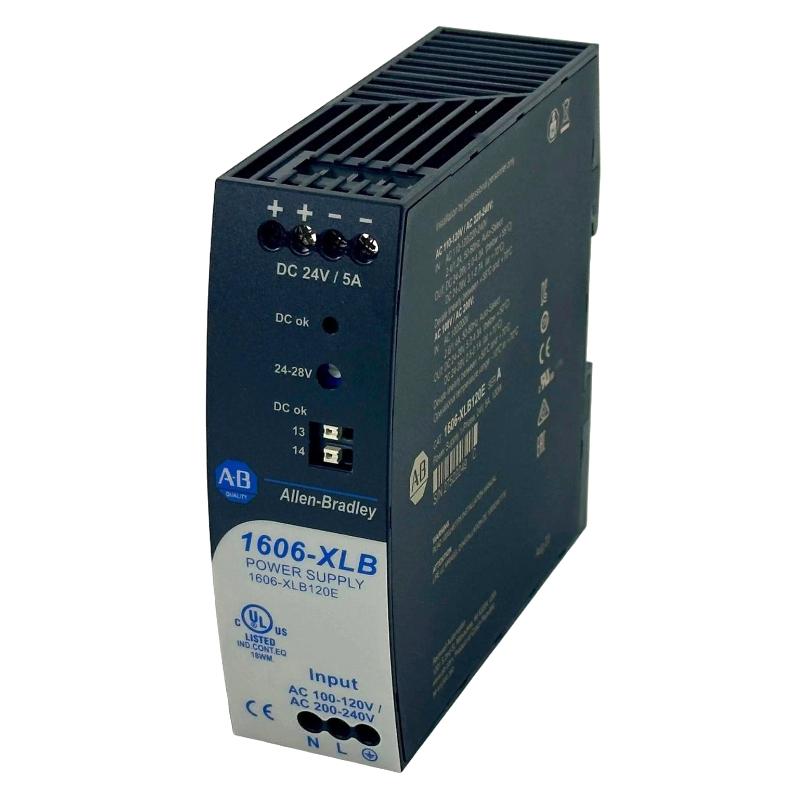

Allen-Bradley 1606-XLB120E Power Supply Troubleshooting Guide
Time:2026-08-03 Browse: 0
Allen-Bradley 1606-XLB120E Power Supply Fault Symptoms
Allen-Bradley 1606-XLB120E troubleshooting usually begins with unstable PLC operation, unexpected controller shutdowns, communication interruptions, or sensor failures. In many industrial cases, the Power Supply is replaced too quickly before checking external causes such as overload, wiring problems, or DC distribution faults.
Typical fault symptoms include:
PLC Controller restarting randomly
I/O Module communication loss
Sensor signal instability
Output devices dropping offline
DC voltage fluctuation alarms
A structured Fault Diagnosis process helps determine whether the problem comes from the 1606-XLB120E itself or from connected equipment.
Allen-Bradley 1606-XLB120E Troubleshooting Logic and Field Investigation
Experienced technicians normally follow the fault behavior rather than immediately replacing components.
The diagnostic thinking process includes:
Confirming when the fault occurs
Checking whether the failure is load-related
Measuring voltage changes during operation
Separating possible external causes
For example, if the PLC works correctly during standby but fails when motors, valves, or heaters activate, the troubleshooting direction should focus on power quality instead of PLC hardware.
1606-XLB120E Voltage Drop Fault Diagnosis Case Study
A packaging machine using an Allen-Bradley PLC Controller experienced random CPU restarts after several hours of operation.
Field observation:
PLC program remained unchanged
No software errors were recorded
Communication Module disconnected briefly
Power indicator remained normal
The engineering team measured the DC supply:
Normal condition:
24.2 VDC during idle operation
Fault condition:
22.1 VDC during actuator activation
The investigation showed that multiple pneumatic valves and sensors were connected to the same 24VDC branch. The additional load caused a temporary voltage drop affecting the PLC system.
After rewiring the DC distribution and separating high-current devices from control circuits, the measured voltage remained stable at 23.9–24.1 VDC. The PLC Controller operated continuously without further interruption.
Allen-Bradley 1606-XLB120E Overload and Thermal Troubleshooting
Another common 1606-XLB120E fault pattern is thermal-related shutdown caused by incorrect cabinet design.
Possible causes include:
Continuous operation near maximum load
Poor airflow inside enclosure
High ambient temperature
Installation near heat-generating equipment
During Troubleshooting, engineers should compare:
Output current during normal operation
Current during machine peak cycles
Cabinet temperature after extended running
A Power Supply operating close to its limit may work correctly during testing but fail after several hours of production.
1606-XLB120E Repair Decision and Recovery Method
Before replacing the Allen-Bradley 1606-XLB120E Power Supply, technicians should complete a complete Fault Diagnosis process.
Recommended checks:
Verify input AC voltage stability
Test output voltage under load
Inspect terminal connections
Disconnect external loads for isolation testing
Check abnormal heating conditions
In one repair evaluation, a suspected failed Power Supply was removed from service and tested separately. The unit produced stable 24VDC output without load, indicating that the actual failure was caused by an external short circuit in a field sensor cable.
This type of diagnostic approach prevents unnecessary replacement costs and improves system recovery efficiency.
Allen-Bradley 1606-XLB120E Troubleshooting Guide Long-Tail Keywords
Frequently searched troubleshooting topics include:
Allen-Bradley 1606-XLB120E troubleshooting guide
1606-XLB120E power supply fault diagnosis
Allen-Bradley PLC 24VDC power failure troubleshooting
1606-XLB120E voltage drop problem analysis
Effective troubleshooting depends on measurement, observation, and logical isolation of faults rather than replacing components without confirmation.
