Overview

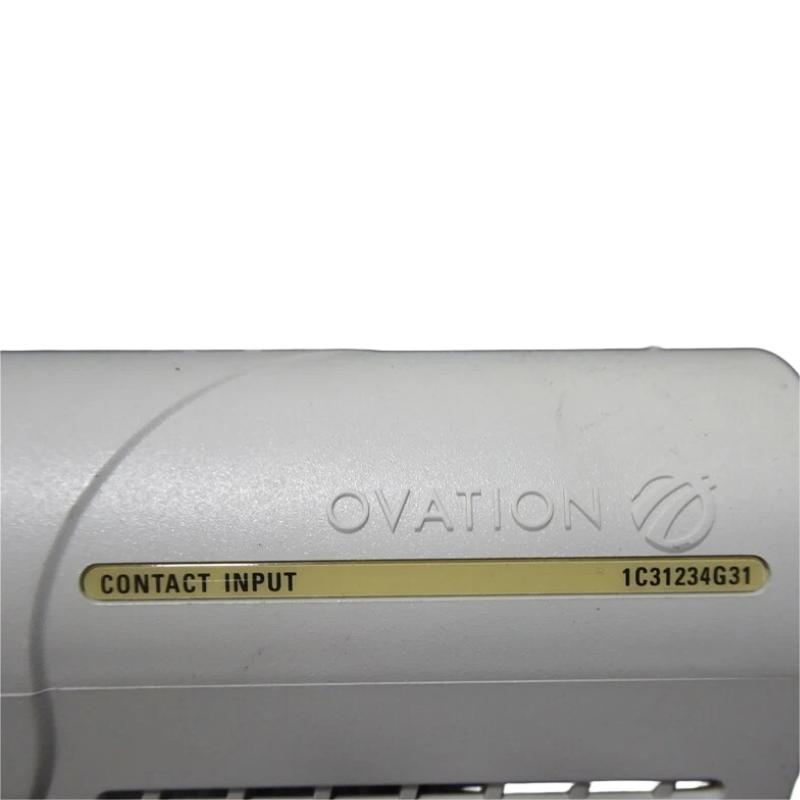

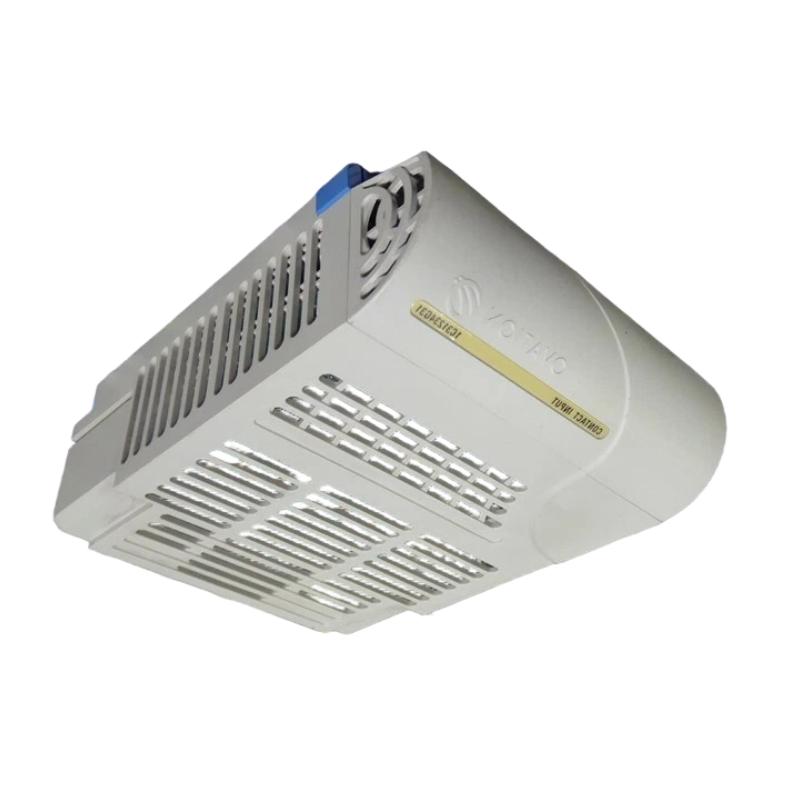

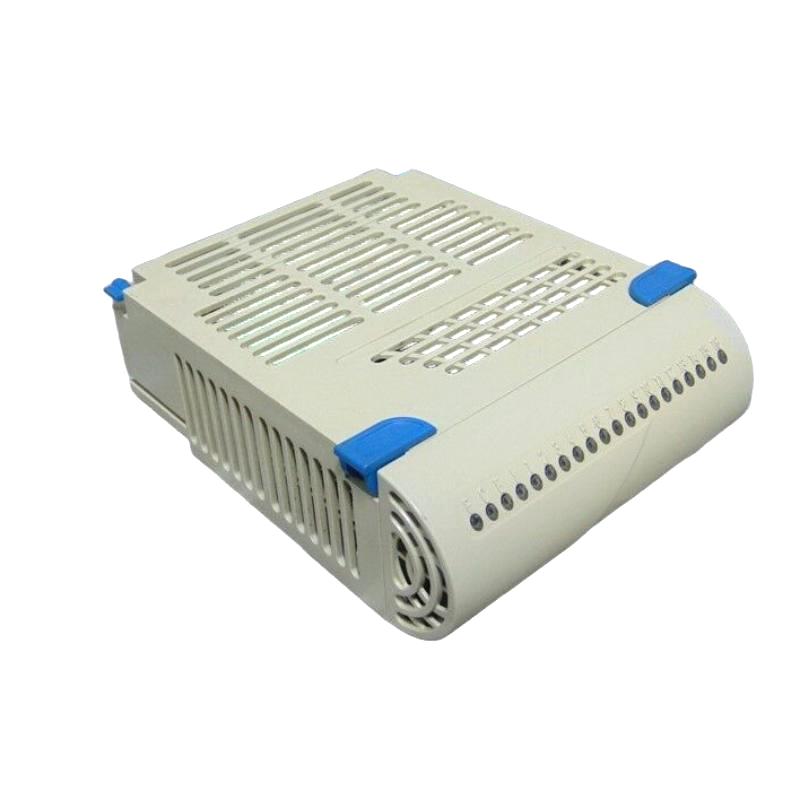

The OVATION 1C31234G31 is an I/O interface module used in Emerson’s Ovation control system. It provides reliable connectivity between the system controller and field devices, supporting analog and digital I/O signals for process automation applications.
General Information
Part Number: 1C31234G31
Manufacturer: Emerson
Country of Origin: USA
Module Type: I/O Interface Module
Application: Facilitates communication between Ovation controller and field I/O devices, supporting both digital and analog signals
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Typical 10–15 W
Protection: Provides protection against overload and ensures stable operation with connected I/O modules
Communication & Interface
Communication Protocol: Ovation system bus interface
I/O Capacity: Supports connection of multiple field I/O channels, depending on system configuration
Diagnostics: Provides monitoring of module status and I/O channel faults
I/O & Channels
Analog Inputs: Supports compatible analog input modules
Analog Outputs: Supports compatible analog output modules
Digital Inputs / Outputs: Supports compatible digital I/O modules
External Load Support: Routes signals to field devices without driving high loads
Environmental
Operating Temperature: −40 to +70 °C
Humidity: Up to 95% RH, non-condensing
Mounting: Rack or cabinet installation in Ovation I/O system
Dimensions & Weight
Dimensions (L × W × H): 140 × 60 × 25 mm
Weight: ~0.3 kg
