Overview

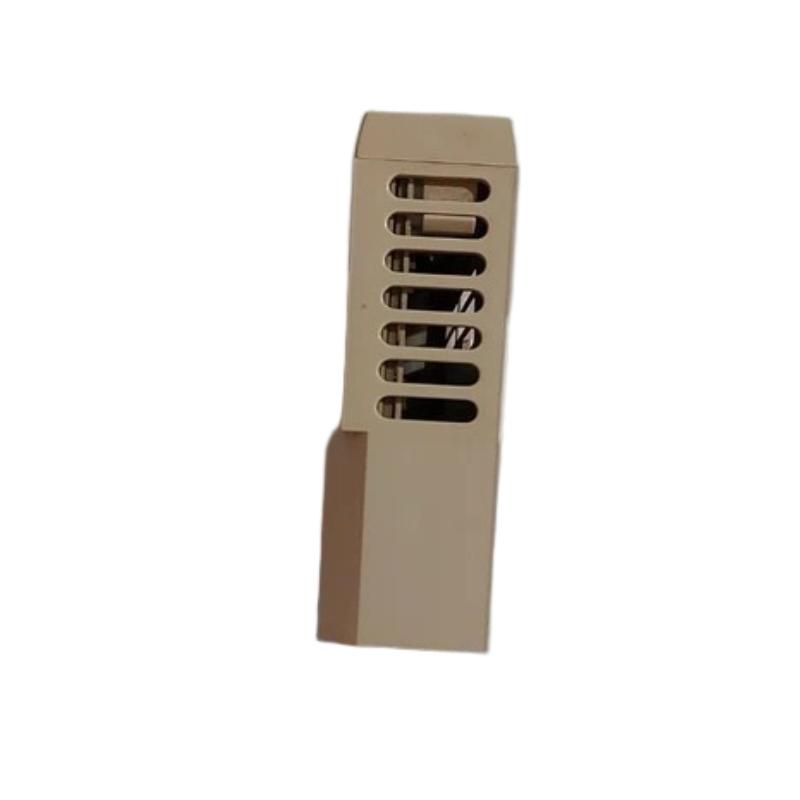

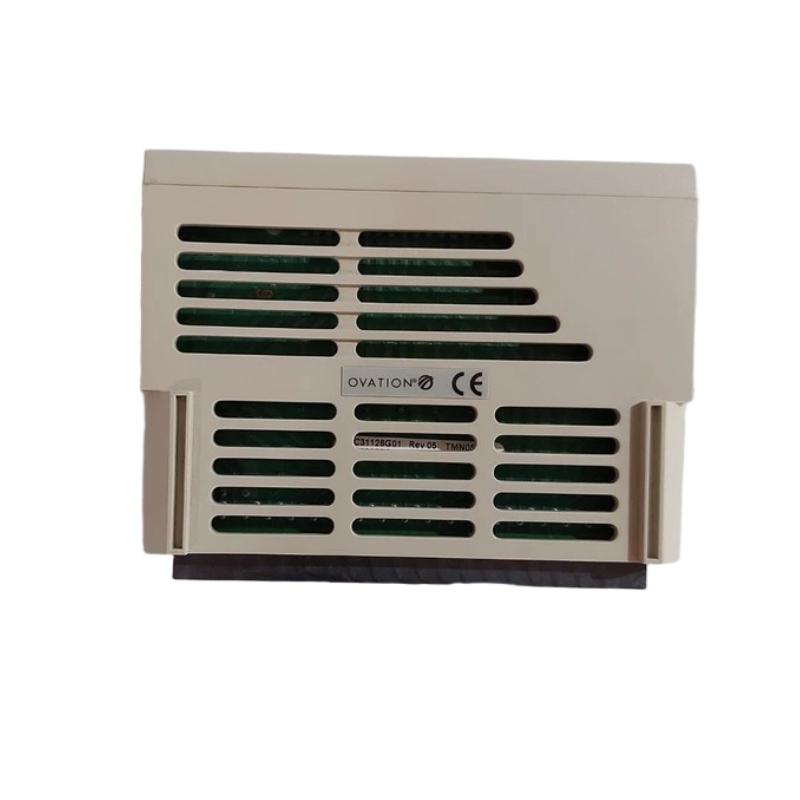

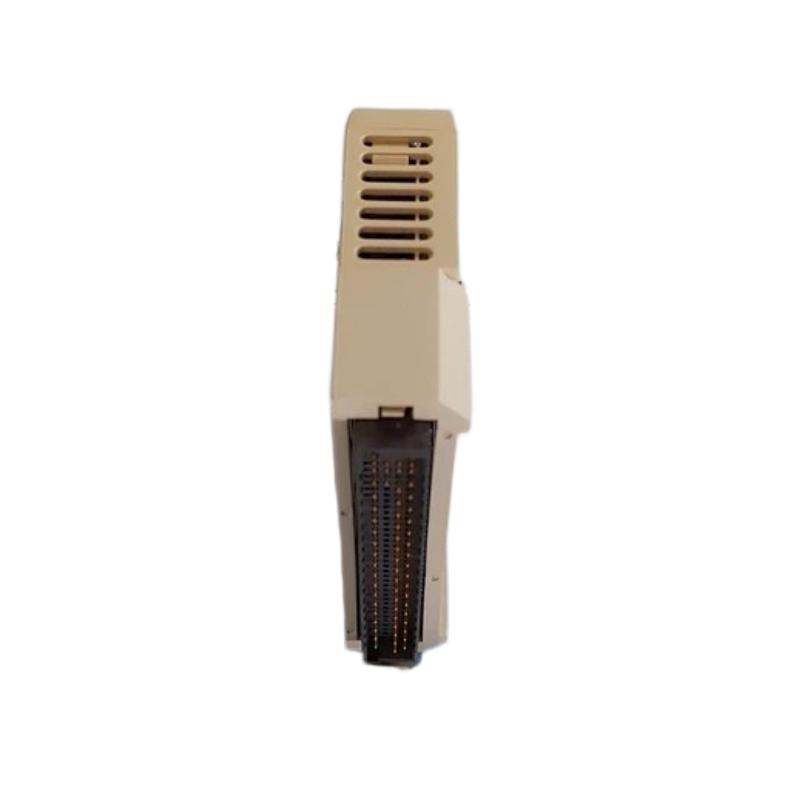

The OVATION 1C31125G01 is a control I/O module used in Emerson Ovation distributed control systems. It provides precise management of analog and digital signals, enabling accurate process monitoring and control in power generation and industrial automation applications.
General Information
Part Number: 1C31125G01
Manufacturer: Emerson
Series: Ovation
Type: Control I/O Module
Mounting: Rack or chassis-mounted within Ovation control cabinets
Function: Interfaces with field devices, processes input signals, and manages outputs for process control
Power Specifications
Supply Voltage: 24 V DC (typical)
Power Consumption: ≤ 15 W
Input: Powered from system backplane
Protection: Surge protection, reverse-polarity protection
Indicators: LED indicators for operational status and fault detection
Communication & Interface
Interfaces: Backplane communication with Ovation control processors
Analog Channels: Supports multiple analog inputs and outputs
Digital Channels: Supports multiple digital inputs and outputs
Diagnostics: On-board LEDs for operational monitoring and fault detection
Operator Interface: LED indicators for quick visual status
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or mounted inside industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): 330 × 280 × 50 mm
Weight: ~ 0.9 kg
