Overview

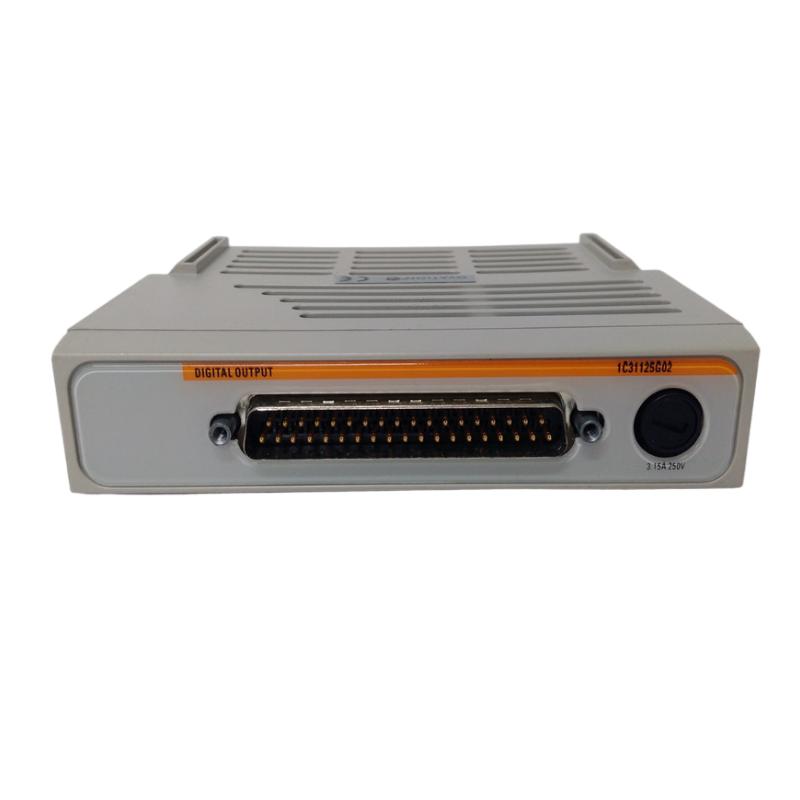

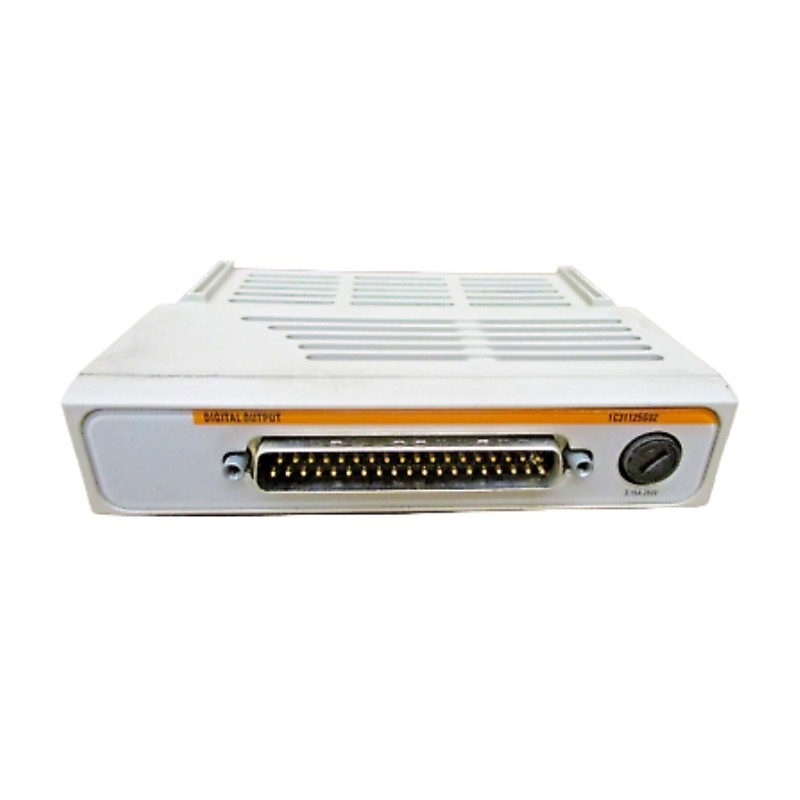

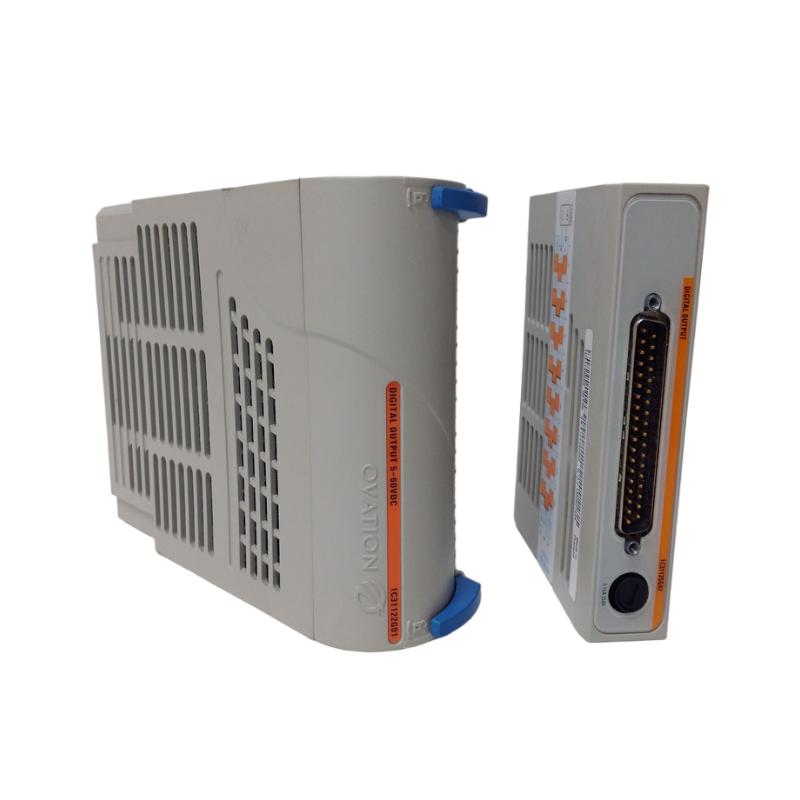

The OVATION 1C31125G02 is a control I/O module used in Emerson Ovation distributed control systems. It manages both analog and digital signals, providing reliable signal processing and control for industrial automation and power generation processes.
General Information
Part Number: 1C31125G02
Manufacturer: Emerson
Series: Ovation
Type: Control I/O Module
Mounting: Rack or chassis-mounted within Ovation control cabinets
Function: Interfaces with field devices, processes input signals, and controls outputs for precise process automation
Power Specifications
Supply Voltage: 24 V DC (typical)
Power Consumption: ≤ 15 W
Input: Powered from system backplane
Protection: Surge protection, reverse-polarity protection
Indicators: LEDs for operational and fault status
Communication & Interface
Interfaces: Backplane communication with Ovation control processors
Analog Channels: Supports multiple analog input and output signals
Digital Channels: Supports multiple digital input and output signals
Diagnostics: On-board LEDs for status monitoring and fault detection
Operator Interface: LED indicators for quick visual monitoring
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or mounted inside industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): 330 × 280 × 50 mm
Weight: ~ 0.9 kg
